XVR5104H-4KL-I3/T is an advanced digital video recorder designed to offer high performance in video surveillance, thanks to 4K resolution and full compatibility with cameras up to 5MP , ensuring clear and detailed images. Equipped with AI WizSense technology , it integrates intelligent functions such as AcuPick , facial recognition and perimeter protection , improving alarm accuracy and reducing false events. It supports Penta-brid configurations (HDCVI, AHD, TVI, CVBS, IP) offering maximum installation flexibility and multi-scenario management. The presence of Smart H.265+ compression and AI Coding optimizes bandwidth and storage while maintaining high video quality, while two-way talk allows two-way communication in real time. Ideal for professional systems, it ensures operational efficiency and reduction of overall management costs. Dahua

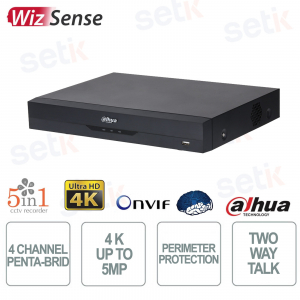

XVR5104H-4KL-I3/T | 4-CHANNEL PENTA-BRIDGE XVR - 5MP MAX RESOLUTION - ARTIFICIAL INTELLIGENCE

The Dahua XVR5104H-4KL-I3/T WizSense is a 4-channel digital video recorder designed for advanced video surveillance systems, with 4K resolution and compatibility up to 5MP for clear and detailed images. Thanks to WizSense AI technology , it integrates intelligent functions such as AcuPick , facial recognition and perimeter protection , improving alarm accuracy and reducing false positives. It supports Penta-brid technology (HDCVI, AHD, TVI, CVBS, IP) offering maximum integration flexibility and multi-system management. Smart H.265+ compression and AI Coding optimize bandwidth and storage without compromising video quality, while two-way talk enables real-time two-way communication. Ideal for professional applications, it guarantees high performance and reduced operating costs.
Main specifications:
- 4K resolution and support up to 5MP for high-definition images
- WizSense AI technology with intelligent people and vehicle analysis
- Advanced AcuPick for fast and precise target search in videos
- Facial recognition with a database of up to 20,000 faces
- Intelligent perimeter protection with false alarm reduction
- Penta-brid 5in1 compatible with HDCVI, AHD, TVI, CVBS and IP
- Smart H.265+ compression and AI Coding for bandwidth and storage savings
- Two-way talk for real-time two-way audio communication
- Support up to 8 IP cameras with bandwidth up to 64 Mbps
Further details
Technical data sheet
| XVR5104H-4KL-I3/T | |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AcuPick | |
| AcuPick Performance of AI by Recorder (1080P) (Number of Channels) | 4 channels |
| Perimeter Protection | |
| Perimeter Performance of AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 8 face images/s each channel) |
| Privacy Protection | |
| Privacy Protection Performance of AI by Recorder (Number of Channels) | 1 channel |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 8 channels |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder | 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white. |
| Scene Changing | |
| Scene Changing by Recorder | 1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking by Recorder | 1 channel |
| EPTZ | |
| EPTZ by Recorder | 1 channel |
| Audio and Video | |
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K@25/30fps; 4K@12.5/15fps; 6MP@20fps; 5MP@25fps; 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps. 2. TVI: 4K@15fps; 5MP(2560 x 1944)@20fps; 5MP(2960 x 1665)@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30 fps.. 3. AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. |
| IP Camera Input | Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used. |
| Encoding Capacity | Encode Enhancement disabled: Main stream: the 1st channel 4K@(1 fps–10 fps), others 4K@(1 fps–7 fps); the 1st channel 5 MP@(1 fps–20 fps), others 5 MP@(1 fps–12 fps); the 1st channel 4 MP/3 MP@(1 fps–20 fps), others 4 MP/3 MP@(1 fps–15 fps); 4K@(1fps–8fps); 6MP@(1fps–10fps); 4K-N/5 MP@(1 fps-15 fps);1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Substream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps) Encode Enhancement enabled: Main stream: the 1st channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st channel 4 MP/3 MP@(1 fps–25/30 fps), others 4 MP/3 MP@(1 fps–15 fps); 4K/6MP@(1fps–10fps); 4K-N/5MP@(1fps-15fps); 1080p/720p/960H/D1/CIF@(1fps–25/30fps) Substream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps) *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm |
| Recording Playback | 1/4 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzers; log; presets; e-mail |
| Port | |
| Audio Input | 1-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Coaxial two-way talk: 4-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Disk Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <7 w="" without="" hdd="" td=""> |
| Net Weight | 1.39 kg (3.06 lb) |
| Gross Weight | 1.81 kg (3.99 lb) |
| Product Dimensions | 325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H) |
| Packaging Dimensions | 374.0 mm × 119.0 mm × 311.0 mm (14.72" × 4.68" × 12.24") (W × D × H) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
