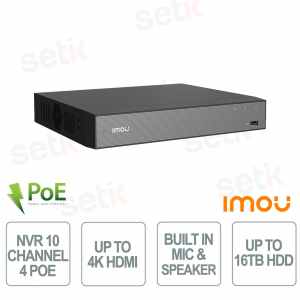

NVR-N110-4P-8A0E-P-IMOU - N110-4P is a 10-channel H.265 NVR with 4 PoE ports , designed to manage IP video surveillance systems with quick and centralized configuration. It supports up to 10 cameras , 4K video output via HDMI , VGA and H.265/H.264 compression to optimize space and bandwidth. It integrates a microphone and speaker for two-way audio, automatic association of Imou cameras and ONVIF 20.12 compatibility. It offers playback of up to 4 channels , motion, people and vehicle detection and remote management via Imou App . Storage is on 1 SATA HDD up to 16 TB , with 90 Mbps input and 90 Mbps output network and total PoE power up to 70 W. Imou

Technical Data Sheet

Reference: NVR-N110-4P-8A0E-P-IMOU

Brand: IMOU

EAN: 6937479645620

Manufacturer Object ( [id] => 41 [name] => IMOU [description] =>

Imou uses smart and easy-to-use technologies designed for home and small and medium-sized business security. All systems are compatible with Alexa and Google Home, if you want to monitor what matters for you the most, all you have to do is ask the device to show you the images.

[short_description] =>


Imou was created with the aim of proposing intelligent solutions that enable everyone to enjoy a more comfortable and safer life, simplifying everyday life for consumers, as highlighted by the official claim: 'Enjoy Smart Life'.

[id_address] => [date_add] => 2020-01-14 16:31:52 [date_upd] => 2026-02-19 17:36:36 [link_rewrite] => imou [meta_title] => Imou [meta_keywords] => [meta_description] => Imou was created with the aim of proposing intelligent solutions that enable everyone to enjoy a more comfortable and safer life, simplifying everyday life for consumers [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

NVR-N110-4P-8A0E-P-IMOU | 10 CHANNEL NVR 4 POE CHANNELS WITH 4K OUTPUT AND INTEGRATED AUDIO



The Imou N110-4P is a 10-channel H.265 NVR with 4 PoE ports , designed for IP video surveillance systems with simple and centralized management. It supports up to 10 cameras , HDMI output up to 4K , VGA and H.265/H.264 compression, with network bandwidth up to 90 Mbps input and 90 Mbps output . It integrates a microphone and speaker for two-way audio, automatic pairing of Imou cameras and ONVIF 20.12 compatibility. It allows playback of up to 4 channels , motion, people and vehicle detection and remote control via the Imou App . Storage takes place on 1 SATA HDD up to 16 TB , with total PoE power up to 70 W.


Main specifications:

  • Channels: 10 total, 4 PoE
  • Video: H.265/H.264 up to 4K
  • Playback: up to 4 channels
  • Storage: SATA HDD up to 16 TB
  • Audio: Built-in microphone + speakers
  • AI: motion, people, vehicles
  • Network: 90 Mbps in/out
  • Outputs: HDMI 4K + VGA
  • Compatibility: ONVIF 20.12
  • App: Imou iOS / Android

Further details


✅ Number of Channels:
 The Imou N110-4P NVR supports up to 10 IP channels , including 4 built-in PoE ports , allowing centralized management of a multi-camera video surveillance system.
✅ Resolution:
 It supports up to 4-channel 8MP decoding at 15fps and up to 4K UHD (3840×2160) HDMI video output, ensuring high-definition viewing of recorded images.
✅ Mass Storage :
 It integrates 1 SATA port to install a HDD up to 16TB , providing high storage capacity to keep video recordings for long periods; it also supports backup via USB Flash Drive .
✅ Automatic Pairing:
 The auto -pairing function allows the NVR to automatically connect to compatible Imou cameras , simplifying setup and speeding up the installation of the video surveillance system.
✅ H.265 up to 4K UHD:
 H.265 video compression up to 4K UHD allows you to store more data while maintaining higher video quality , improving overall system efficiency.
✅ Third Party Agreement:
 ONVIF 20.12 compatibility facilitates the integration of the NVR with compatible third-party cameras and IP devices , increasing flexibility in system configuration.
✅ Built-in Mic and Speaker:
 With a built-in microphone and speaker , the NVR supports two-way audio , allowing voice communication without requiring additional audio devices.
✅ HDMI/VGA Output:
 It features 1 HDMI output up to 4K (3840×2160) and 1 VGA output up to 1920×1080 , offering compatibility with different monitors and displays for local viewing of video surveillance.
✅ PoE:
 It integrates 4 10/100 Mbps IEEE 802.3af/at PoE ports , with a total PoE power of up to 70 W and a maximum of 25.5 W for each single port , to power and connect compatible IP cameras via Ethernet cable.
✅ Network:
 It offers a network bandwidth of up to 90 Mbps in input and 90 Mbps in output , 10/100 Mbps RJ-45 port, IPv4/IPv6, HTTP/HTTPS, TCP/IP, DHCP, DNS, P2P protocols and remote management via Imou App for iOS and Android .

Technical Data Sheet

Model NVR-N110-4P-8A0E-P-IMOU
Video & Audio
Access Channel 4 POE Ports & 10 channels
Network Bandwidth 90 Mbps incoming and 90 Mbps outgoing
Playback Decoding 4-channel 8 MP@15 fps;
4-channel 6 MP@25 fps;
4-channel 5 MP@30 fps;
5-channel 4 MP@30 fps;
10-channel 1080p@30 fps
Video Compression H.265/H.264
Audio Compression AAC
Backup File Format MP4
Live Display 1,4,8,9,10
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; DHCP; DNS;UPnP; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P
Compatible APP IMOU APP (IOS＆Android)
Third Party Agreement Onvif 20.12
Special Features
IPC Connection Automatically connect to IMOU cameras
Smart Detection Motion / Person / Vehicle
Remote Upgrade Yes
Sound Channel Two-Way Audio
External Interface
Video Output 1*HDMI:4K (3840 × 2160), 2K (2560 × 1440), 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720
1*VGA:1920×1080, 1280×1024, 1280×720
Audio Input 1*Microphone(Built-in)
Audio Output 1*Speaker(Built-in)
USB Interface 2*USB
Reset Button Yes
Network Interface 1 RJ–45 port (10/100 Mbps)
PoE Port 4PoE Ports(10/100Mbps, IEEE 802.3 af/at)
Storage
Hard Drive Capacity 1 SATA port, up to 16 TB
Backup Media USB Flash Drive
General
Power Supply DC 54V 1.35A
Power Consumption Total output of NVR is ≤ 9W (without HDD)
Total output power of PoE is 70 W, the maximum output power of a single port is 25.5W
Working Temperature -10℃~+45℃
Working Humidity Less Than 95%RH
Dimensions (L×W×H) 227.5mm×260mm×45.0mm
Certification THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
