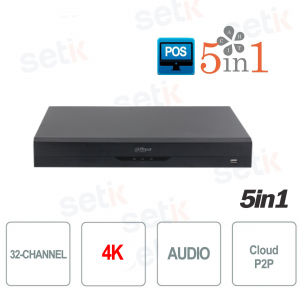

Dahua Wizsense XVR5232AN-4KL-I3 5 in 1 XVR 32 Channel HDCVI/AHD/TVI/CVBS/IP up to 4K, Video compression up to H.265+, VGA, HDMI 4K, 2 USB ports, RS485, Support for 2 HDDs up to 16TB each, Audio and Alarm, POS & IOT and Video Analytics Support, Facial Detection , Cloud P2P. Rack-mountable

Reference: XVR5232AN-4KL-I3

Brand: Dahua

EAN: 6923172549518

Disponibilità: 1

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

32-CHANNEL DVR VIDEO RECORDER 5 TECHNOLOGIES IN 1! - 4K-N/5MP - 2 HDD - WIZSENSE - DAHUA

Made by Setik XVR 32 Channel 5in1 - Dahua
HDCVI/AHD/TVI/CVBS/IP - Up to 4K
Video Compression up to H.265+ / Video Analytics / Facial Recognition / Audio and Alarm
Supports 2 HDDs up to 16TB each - P2P Cloud - ONVIF® Standard - 24-month warranty

Product details


>

Novità


Launched by Dahua Technology, WizSense is a series of AI products and solutions that utilize a standalone AI chip and a deep learning algorithm. It focuses on people and vehicles with high precision, allowing users to quickly act on defined targets. Powered by Dahua's advanced technologies, WizSense provides intelligent and simple products.

The new XVR5000-I2 series features SMD Plus on all channels to benefit customers from the AI upgrade. The series is designed to reduce false alarm rates and human surveillance costs, bringing great value to customers seeking products with accurate human/vehicle alarms to increase the security level of various indoor and outdoor facilities.


AI search: Supports metadata searches for people and vehicles. It supports uploading facial images to the NVR and comparing them with similar images already recorded by the NVR. It allows operators to quickly and easily search across multiple channels and efficiently find out when and where a subject is present.

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI/AHD/TVI/CVBS/IP )
Standard ONVIF® Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of IP devices compatible with each other (DVR/cameras).
H265+ Video Compressione

AI Coding: What is it?

AI Coding

Compared to H.265, the AI codec can reduce bit rate and storage requirements by up to 50% without losing decoding compatibility, providing clear human and vehicle details.




Questo DVR presenta 32 canali

Recording resolution:

HDCVI : 4K@25/30fps; 6MP@20fps; 5MP@25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps

AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps

TVI: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps

32 IP Channels

Max incoming bandwidth 128Mbps

4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Resolution even higher than FULL-HD!
More detail available, greater sense of depth and realism.
Collegamento a dispositivi POS

Possibility of connecting POS devices, obtaining all the information overlaid on the channel.

POS search possibility by date or transaction

Possibilità di collegamento dispositivi POS

Funzione POS

Questo DVR supporta telecamere per la videosorveglianza

Supports cameras from various brands: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more...

(the functioning with the models proposed here must be verified on a case-by-case basis)

Questo DVR supporta la funzione Cloud 2P2 proprietario Dahua

This XVR features Cloud p2p function via:

EASYVIEWER and DMSS

Cloud P2P App DMSS Dahua

Compatibile con Hard Disk SATA Audio/Video AV-GP

Supports 2x SATA Audio / Video Hard Disks up to 16TB each (NOT INCLUDED!)


WARNING: Use specific audio/video discs on DVR systems.
For more information, read our dedicated article .

Questo DVR presenta 2 porte USB This XVR features 2x USB ports (1 front USB 2.0 port, 1 rear USB 3.0 port)
Questo DVR presenta 1 ingresso HDMI This DVR features 1x HDMI port "With resolution 3840×2160, 1920×1080, 1280×1024, 1280×720 "

VGA output with resolution "1920 × 1080, 1280 × 1024, 1280 × 720"

Questo DVR presenta ingressi / uscite audio This DVR features 1 Audio IN and 1 Audio OUT /RCA
32-channel BNC (Coaxial Audio)
1 RJ45 port (10/100/1000)
1 RS 485 port for PTZ controls (remotely controllable cameras)
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS: allows you to reach the device even in the case of a dynamic IP
In caso di eventi (offuscamento telecamera, taglio segnale, motion, disco rotto, problemi di rete etc...), è in grado di inviare una segnalazione via email,una notifica sonora oppure caricare video & screeshot tramite FTP This video recorder has email sending.
In case of events (camera blur, signal cut, motion, broken disk, network problems etc...), it is able to send a notification via email, an audible notification or upload videos & screenshots via FTP
Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function. Recording starts when the camera detects motion.
Questo DVR presenta garanzia italiana 24 mesi

This product is covered by a 24 month warranty.

Technical data sheet

Model: DVR XVR5232AN-4KL-I3
SYSTEM
Main Processor Embedded processor
Operating System Embedded LINUX
Operating Interface Web; Local GUI
QuickPick 2.0
QuickPick 2.0 AI by Recorder (Number of Channels) 6 channels
PERIMETER PROTECTION
Perimeter Performance AI by Recorder (Number of Channels) Advanced Mode: 6 channels, 10 IVS rules for each channel
General Mode: 12 channels, 10 IVS rules for each channel
FACE DETECTION
Face Attributes 6 attributes
Face Detection Performance of AI by Recorder (Number of Channels) 6 channels (up to 12 face images/s each channel)
Privacy Protection
Privacy Protection Performance of AI by Recorder (Number of Channels) 1 channel
FACE Recognition
Face Database Capacity Up to 10 face databases with 20,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 6 channels
SMD PLUS
SMD Plus by Recorder 32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 64 channels
AI Video Quality Analytics
AI Video Quality Analytics by Recorder 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
Scene Changing
Scene Changing by Recorder 1 channel
Irregular Black Block Masking
Irregular Black Block Masking by Recorder 1 channel
EPTZ
EPTZ by Recorder 1 channel
VIDEO AND AUDIO
Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect
Camera Input 1. CVI: 4K@25/30fps; 4K@12.5/15fps; 6MP@20fps; 5MP@25fps; 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps.
2. TVI: 4K@15fps; 5MP(2560 x 1944)@20fps; 5MP(2960 x 1665)@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
IP Camera Input Up to 64 channels of IPC access
32 IP channels by default + 32 channels (analog channels are converted to IP channels) Incoming bandwidth: 256 Mbps, recording bandwidth: 256 Mbps and outgoing bandwidth: 256 Mbps
*After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.
Encoding Capacity Encode Enhancement disabled:
Main stream:
the 1st, 9th, 17th, 25th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 9th, 17th, 25th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 9th, 17th, 25th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 9th, 17th, 25th channel 4K-N/4 MP/3 MP@(1 fps–25/30 fps), others 4K-N/4 MP/3 MP@(1 fps–15 fps); 4K@(1fps–8fps);
Channels 1-5, 9-13, 17-21, and 15-29 5M-N@(1 fps–15 fps), others 5M-N@(1 fps–12 fps); 4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
Substream:
960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps)
Encode Enhancement enabled:
Main stream:
the 1st, 5th, 9th,13th, 17th, 21st, 25th, 29th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 5th, 9th, 13th, 17th, 21st, 25th, 29th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 5th, 9th, 13th, 17th, 21st, 25th, 29th, channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 5th, 9th, 13th, 17th, 21st, 25th, 29th channel 4K-N/4 MP/3 MP@(1 fps–25/30 fps), others 4K-N/4 MP/3 MP@(1 fps–15 fps); 4K/6MP@(1fps–10fps); 5MP@(1fps-15fps); 4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
Substream:
960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps)
*When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA, 1 CVBS
HDMI : 3840×2160,1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display 1/4/8/9/16/25/36
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
COMPRESSION STANDARD
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
NETWORK
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome, IE9 or later, Firefox
RECORDING PLAYBACK
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4/9/16
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group Yes
ALARM
General Alarm Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompts; buzzers; log; presets; e-mail
PORTS
TV Output 1 channel
Audio Input 1-channel RCA
32-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
GENERAL
Power Supply DC 12V, 5A
Power Consumption <32 w="" without="" hdd="" td="">
Net Weight 2.50 kg (5.52 lb)
Gross Weight 4.10 kg (9.04 lb)
Product Dimensions 375.0 mm × 334.4 mm × 53.0 mm (14.76'' × 13.17'' × 2.09'') (W × D × H)
Packaging Dimensions 449.0 mm × 170.0 mm × 421.0 mm (17.68'' × 6.70'' × 16.58'') (W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Installation Desktop
CERTIFICATIONS
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

Further details


Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
