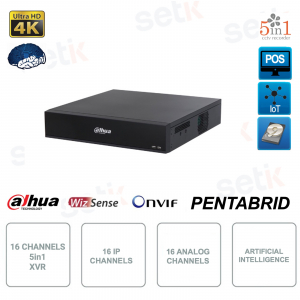

XVR IP ONVIF® - 16 channels - 5in1 - Up to 12MP - 16 IP channels and 16 analog channels - Artificial intelligence
Dahua - XVR7816S-4K-I3 - XVR IP ONVIF - 5in1: HDCVI/AHD/TVI/CVBS/IP - 16 channels - 16 IP channels and 16 Analog channels - 16 BNC ports - Artificial intelligence with perimeter protection and face detection - Dual Stream - H.265+ Smart Codec - Maximum bandwidth 128Mbps - POS and IoT - RS232 - RS485 - 4xUSB - HDMI - VGA - 2xRJ45 1000M - Audio BNC - Bidirectional audio on 1 BNC port - Alarm - 8x SATA for 16TB HDD (not included ) - eSATA - Motion Detection - For desktop or rack mounting.
DAHUA: LOSS LEADER×
 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>
XVR VIDEO RECORDER 16 CHANNELS - 5 IN1 - UP TO 12MP - 16 IP CHANNELS - 16 ANALOG CHANNELS - DAHUA - XVR7416L-4K-I3

XVR 16 Channels - Dahua - XVR7816S-4K-I3
5in1 ( HDCVI/AHD/TVI/CVBS/IP ) - Resolution Up to 12MP (supports 4K) - 16 IP and 16 analog channels - 16 BNC ports - Up to 32 IP 12MP channels - Dual Stream - H.265+ - Intelligence Artificial : Perimeter protection / Face detection and recognition / SMD Plus - Audio : 16 BNC in/1out BNC channels - Bidirectional audio on 1 BNC channel - Alarm : 16in/6out - Bandwidth 128Mbps - RS485 - RS232 -2xRJ45 1000M - 4xUSB (2x2. 0 + 2x3.0) - 1xHDMI (4K), 1xHDMI/VGA (1080p) - POS and IoT - 8 SATA HDDs (up to 16TB each - Not included) - eSATA - Motion Detection - Fault alarm and intelligent alarm - For desktop installation or rack - 24 months manufacturer's warranty.
Product details

|  5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI/AHD/TVI/CVBS/IP )  | |
![]()  |  Onvif is by far the most important Standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs/cameras). This XVR supports ONVIF® version 21.12  |
![]()  |  This XVR features compression standards up to H.265+ H.265+: What are the benefits? - Save up to 90% on bandwidth - Reduction of storage space - Longer recording times on analog surveillance systems with the same storage space.    |
  | 16 IP channels and 16 analog channels. Up to 32 IP channels (analog channels are converted to IP channels) Encoding capabilities (Dual Stream):
 Input Bandwidth: Max 128Mbps.  |
|
 This recorder allows artificial intelligence functions on board!  - Perimeter protection  | |
![]()  | Supports cameras from various brands: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more... (operation with the models proposed here is to be checked on a case-by-case basis)  |
This DVR features DAHUA proprietary Cloud p2p function  | |
Supports 4x Audio / Video SATA Hard Drives up to 16TB each! ( NOT INCLUDED ! )  Also present 1 eSATA port!  | |
![]()  | This XVR features 4x USB Ports (2 front USB 2.0, 2 rear USB 3.0) |
![]() ![]() ![]()  | This XVR features 2x HDMI port in addition to VGA and TV HDMI port 1: 4K out HDMI2 port: 1080p out VGA port: 1080p out  New ULTRA HD 4K Technology!  |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Pos search option by date or transaction
    | |
Internet Of Things (IoT): Possibility to connect wireless external sensors, such as panic buttons, via AirFly PFM871A-N1 dongle or cameras with already integrated gateway
 IoT Manager: - Real-time view: Monitor and preview all IoT information in real time - IoT Information Search: Detailed IoT information and movies corresponding to an access point search - Sensor Manager: Includes sensor pairing, status and configurations of IoT devices
  | |
| This XVR features 1 BNC audio input and 1 BNC audio output | |
![]()  | CON Alarm relay 16 IN and 6 OUT for inputs from burglar alarms or other instruments and activate external peripherals (gates, sirens, etc.) |
![]()  | 2 RJ45 ports ( 10/100/1000M ) |
| 1 RS 485 port for PTZ commands (remotely controllable cameras) | |
![]()  | RS 232 to communicate with PC and keyboard |
| Dynamic DNS: allows you to reach the device even in case of dynamic IP | |
![]()  |  This video recorder has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP  |
![]()  | Motion function. Recording starts when the camera detects movement. |
This product is covered by a 24 month guarantee.  |
Data sheet
| XVR7816S-4K-I3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
main processor  | Industrial-grade processor  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System  | Embedded Linux  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface  | Web; Local GUI  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
perimeter protection  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance AI by Recorder (Number of Channels)  |  Advanced Model: 6 channels, 10 IVS for each channel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes  | gender; age group; glasses; expressions; face masks; beard  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Recorder (Number of Channels)  | 6 channels (up to 12 face images/s)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity  | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Recorder (Number of Channels)  | 6 channels  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder  | 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog camera input  | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input  |  1. CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
8 SATA ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA  | 1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232  | 1 port, for PC Communication & Keyboard  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485  | 1 port, for PTZ control  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB  | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI  | 2  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA  | 1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port  | 2 (10/100/1000Mbps Ethernet port, RJ-45)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | 100-240VAC, 50/60Hz  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption  | <30W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight  | 6.9kg (15.21lbs)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | 9.5kg (20.94lbs)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions  |  2U, 439.9mm × 455.6mm × 94.9mm  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions  |  570.0mm × 570.0mm × 226.0mm  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature  | –10°C to +55°C (14°F to +131°F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity  | 10%–90% (RH)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation  | Racks or desktops  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  |  CE: CE-LVD: EN 60950-1/IEC 60950-1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
