Turbo DVR 5in1 - IP ONVIF® POC - 8 IP channels - 16 analog

-58%

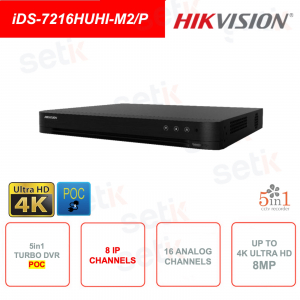

Turbo HD DVR - HIKVISION - iDS-7216HUHI-M2/P - 5in1 ( HDTVI/AHD/HDCVI/IP/CVBS ) - IP ONVIF POC - 8 IP channels + 16 analog channels - Resolution up to 8MP 4K ULTRA-HD 8Megapixel -2x SATA for 10TB Hard Disk connection - H.265 Pro+ codec - Dual Stream - HDMI (4K) - VGA (FullHD) - Audio - Alarm - 128Mbps bandwidth - Video Analysis: people and vehicle classification / Perimeter protection - 16-channel synchronous playback - RS485 - USB - RJ45 1000M - For video surveillance systems.

Reference: iDS-7216HUHI-M2/P

Brand: Hikvision

https://www.setik.biz/en/recording-devices/8510-hikvision-ids-7216huhi-m2-p-turbo-dvr-5in1-ip-onvif-poc-8-ip-channels-16-analog.html

€817.79

€1,947.12 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

iDS-7216HUHI-M2/P | DVR TURBO HD - IP OMVIF POC - HIKVISION - 8 IP CHANNELS - 16 ANALOGUE CHANNELS - 8MP 4K - H.265+ AUDIO and ALARM - VIDEO ANALYSIS

Turbo HD DVR - HIKVISION - iDS-7216HUHI-M2/P - IP ONVIF® POC - 8 IP Input channels (expandable up to 32 in IP enhanced mode) - 16 BNC analogue channels - Resolution: 8MP 4K ULTRA-HD 8Megapixel - Codec H. 265+ - Dual Stream - 1 HDMI (4K) - 1 VGA (1080p) - 2 USB (1x 2.0 + 1x3.0) - Up to 2x10TB SATA HDD - RCA Bidirectional Audio - Bandwidth 128Mbps total - Audio: 4in/1out - 16 channels on coax. - Alarm: 4in/1out - Video Analysis: Motion Detection 2.0 with people-vehicles distinction and perimeter protection - 2xUSB (2.0+3.0) - RS485 - Gigabit Ethernet 1000M - - 24 months warranty - Ideal for video surveillance systems.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also known as ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security as well. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on standard H265 , the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also known as ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security as well. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on standard H265 , the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

ONVIF® :

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems
This camera supports Onvif version.

POC :

POC - POWER OVER COAX:
Dahua , a leading solution provider in the global video surveillance industry, has simplified the installation of HDCVI surveillance system with Power over Coax (PoC) technology , which transmits both video, audio, control signal and electrical power over a single coaxial cable , eliminating the need for separate camera power supplies and minimizing operating costs.

UP TO 32 CHANNELS:

Up to 32 Channels.

Resolution up to 4K ULTRA-HD 8 Megapixels

8 IP channels (expandable up to 32 in case of IP ENHANCED mode)

16 BNC analog channels

4K ULTRA-HD RESOLUTION:

ULTRA HD 4K technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

HDTVI input: 8MP@15fps, 8MP@12.5fps, 3K@20fps, 5MP@20fps, 5MP@12fps, 4MP@30fps, 4MP@25fps, 3MP@18fps, 1080p@30fps, 1080p@25fps, 720p@60fps, 720p@50fps, 720p@30fps, 720p@25fps
AHD input: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080p@25fps, 1080p@30fps, 720p@25fps, 720p@30fps
HDCVI input: 4MP@25fps, 4MP@30fps, 1080p@25fps, 1080p@30fps, 720p@25fps, 720p@30fps
CVBS input: PAL/NTSC
CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

H.265 Pro+ VIDEO COMPRESSION:

H.265+ is the optimized implementation of H.265 codec using scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without strain the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
Video compressione Smart H.265+

SMART FEATURE-SET - VIDEO ANALYSIS:
MOTION DETECTION 2.0
- Quick Search
- human / vehicle classification

PERIMETER PROTECTION

HIK-CONNECT

Hik Connect allows you to control the device remotely

RJ45:

1x RJ-45 (10/100/1000Mbps) Gigabit

HARD DISKS:

SATA 2x interface

Supports Hard Drives with digital capacity up to 10TB each! (not included)

HDMI and VGA output (full hd):

Present 1 HDMI output with resolution up to 4K and 1 VGA / HDMI output up to 1080p!

USB:

1x USB 2.0 (front panel)
1x USB 3.0 (back panel)

Audio and Alarm:

This DVR features:

4 input + 1 audio output
16 inputs on coaxial

4 inputs + 1 alarm output

Data sheet

model	iDS-7216HUHI-M2/P
Motion Detection 2.0
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Dimension(W×D×H)	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight	≤ 3.8 kg (without HDD, 8.4 lb.)
