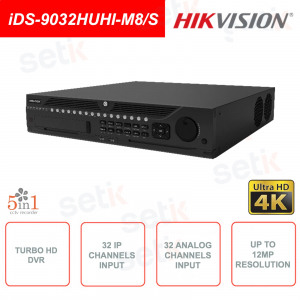

Turbo HD DVR IP ONVIF 5in1 - 32 IP and 32 analog channels - Up to 12MP

-35%

Turbo DVR IP ONVIF - HIKVISION - iDS-9032HUHI-M8/S - 5in1: HDTVI/AHD/CVI/CVBS/IP - Up to 12MP - 18 IP channels and 16 analog channels - Codec H.265 Pro+ - Bandwidth 320Mbps - Alarm - Audio - 8xSATA Ports for 12TB HDD (not included) - RS232 - RS485 - USB.

Reference: iDS-9032HUHI-M8/S

Brand: Hikvision

https://www.setik.biz/en/recording-devices/8889-hikvision-ids-9032huhi-m8-s-turbo-hd-dvr-ip-onvif-5in1-32-ip-and-32-analog-channels-up-to-12mp.html

€2,854.80

€4,392.00 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

iDS-9032HUHI-M8/S | DVR TURBO HD - 5in1 - IP ONVIF - HIKVISION - 32 IP CHANNELS - 32 ANALOG CHANNELS - 12MP - H.265+ AUDIO and ALARM

Turbo HD DVR - HIKVISION - iDS-9032HUHI-M8/S - 5in1: HDTVI/AHD/CVI/CVBS/IP - 18 IP channels in and 16 analog channels in - Up to 12MP - USB - 2xHDMI HDMI1 1080p / HDMI2 4K) - VGA (1080p) - RS232 - RS485 - Audio 4in/2out - Alarm: 16in/4out - 8x SATA for 12TB HDD (not included) - 320Mbps bandwidth - Smart H.265+ codec - Independent or simultaneous HDMI and VGA video output .

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also known as ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security as well. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on standard H265 , the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also known as ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security as well. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on standard H265 , the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

ONVIF

Onvif is by far the most important Standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs/cameras).

5in1

5 Technologies in 1!
This DVR supports 5 different technologies (HDCVI+AHD+TVI+ANALOG+IP)

CHANNELS

32 IP channels up to 12MP

32 analog channels.

IP channels are extendable up to 64 (analog channels are converted to IP)

4K ULTRA-HD RESOLUTION:

ULTRA HD 4K technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

H.265 Pro+ VIDEO COMPRESSION:

H.265+ is the optimized implementation of H.265 codec using scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without strain the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
Video compressione Smart H.265+

HIK-CONNECT

Hik Connect allows you to control the device remotely

RJ45:

2x RJ-45 (10/100/1000Mbps)

HARD DISKS:

SATA 8x interface

It supports hard drives with digital capacity up to 12TB each

HDMI and VGA output (full hd):

Present 1 HDMI output with resolution up to 4K and 1 VGA / HDMI output up to 1080p!

USB:

2x USB 2.0 (front panel)
1x USB 3.0 (back panel)

Audio and Alarm:

This DVR features 16 RCA inputs + 1 RCA audio output , 16 inputs + 8 alarm output

Data sheet

iDS-9032HUHI-M8/S
recording
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
EncodingResolution	8MP/3K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rates	Mainstream: 8MP@8fps/3K@12fps/5MP@12fps/4MP@15fps/3MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N ) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rates	32Kbps to 10Mbps
Dual-stream	Support
StreamType	Videos, Videos & Audios
Audio Compression	G.711u
Audio Bit Rates	64Kbps
Video and Audio
IP Video Input	32-ch (up to 64-ch); Up to 12MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	32-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	256Mbps
HDTVI inputs	8MP, 3K, 5MP, 4MP, 3MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD input	5MP, 4MP, 720p25, 720p30, 1080p25, 1080p30
CVBS Input	PAL/NTSC
HDCVI inputs	4MP, 720p25, 720p30, 1080p25, 1080p30
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Outputs	1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode	HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio inputs	16-ch, RCA (2.0 Vp-p, 1KΩ)
Audio Outputs	1-ch, RCA (Linear, 1KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback	16-ch

Network
NetworkProtocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Remote Connection	128
Network Interface	2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA	8 SATA interfaces
eSATA	Support
Capacity	Up to 12TB capacity for each disk
Serial Interface	RS-232, RS-485 (full-duplex), Keyboard
USB Interface	Front panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0,
Alarm In/Out	16/8
General
Power Supply	100 to 240VAC, 50 to 60Hz
consumption	≤ 55W (without HDD)
Working Temperature	-10°C to +55°C (+14°F to +131°F)
Working Humidity	10% to 90%
Dimension(W×D×H)	445 × 465 × 88mm (17.5 × 18.3 × 3.5inch)
Weight	≤ 9 kg (without HDD, 19.8 lb.)
