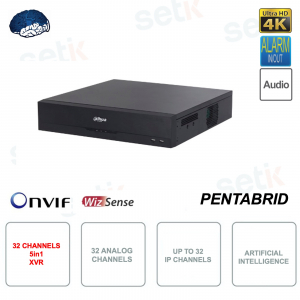

XVR DAHUA 32 CHANNELS WITH 5 TECHNOLOGIES IN 1 - UP TO 54K - 8HDD - ARTIFICIAL INTELLIGENCE - AUDIO AND ALARM - XVR5832S-4KL-I3
 XVR 32 Channels 5in1 - Dahua - XVR5832S-4KL-I3HDCVI/AHD/TVI/ANALOG/IP / Up to 4K Ultra HD
Video Compression H.265+ SMart Codec / Artificial Intelligence: Face Detection and Recognition, Perimeter Protection, SMD Plus - Video Interface: VGA (1080p out) - 2xHDMI (4K/1080p out) - 1xTV out - Audio: 16 BNC inputs and 32 BNC Coaxial / 1 BNC output - 1 BNC bidirectional channel - 16 inputs and 6 alarm outputs - RS2323 - RS485 - RJ45 LAN 10/100/1000M - Support 8HDD up to 16TB ! (not included, sold separately) - Cloud P2P - ONVIF® standard supported - 24 months warranty.
Product details

DAHUA SERIES X If you want to learn more about this new series of Dahua 5 in1 XVR recorders , read the article we wrote!  | |
| 5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI/AHD/TVI/ANALOG/IP )  | |
![]()  |  Onvif is by far the most important Standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs/cameras). This XVR supports ONVIF® version 21.12  |
![]()  |  This XVR features compression standards up to H.265+ H.265+: What are the benefits? - Save up to 90% on bandwidth - Reduction of storage space - Longer recording times on analog surveillance systems with the same storage space.    |
  | Recording resolution: 1.CVI : 4K@25/30fps; 6MP@20fps; 5MP@25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps. 2.TVI : 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. 3. AHD : 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.  IP CAMERA INPUT ENCODING CAPABILITY (DUAL STREAM)  Mainstream:  |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Pos search option by date or transaction      | |
  |  AI | Artificial intelligence Face Detection: Real-time facial recognition. Face recognition Perimeter Protection SMD Plus  |
![]()  | It supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,Sanyo, Sony, Videotec, Vivotek, and others... (operation with the models proposed here is to be checked on a case-by-case basis)  |
Supports 8x Audio / Video SATA Hard Drives up to 16TB! ( NOT INCLUDED ! )
  | |
![]()  | This XVR features 4x USB Ports: 2x USB 2.0 (front facing), 2x USB 3.0 (front rear) |
![]() ![]()  | This XVR features 2 HDMI PORTS. The HDMI 1 port allows for 4K Ultra HD 2830x2160p output resolution  New ULTRA HD 4K Technology!  |
![]()  | This XVR features 1 VGA port (1920×1080, 1280×1024, 1280×720)  |
![]()  |
 Video BNC output present  |
 This XVR features 16 BNC Audio Inputs / 32 BNC audio inputs via coaxial + 1 BNC Audio Output 1 channel dedicated to two-way audio. Also present 1 Input + 1 BNC Microphone Output  | |
![]()  | With alarm relay 16 inputs + 6 outputs for inputs from burglar alarms or other instruments and activate external peripherals (gates, sirens, etc.) |
![]()  | 2 Gigabit RJ45 (10/100/1000Mbps) ports! |
![]()  | RS 232 to communicate with PC and keyboard |
  | 1 RS485 port for PTZ commands (remotely controllable cameras) |
| Dynamic DNS: allows you to reach the device even in case of dynamic IP | |
![]()  |  This video recorder has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP  |
![]()  | Motion function. Recording starts when the camera detects movement. |
This product is covered by a 24 month guarantee.  |
Data sheet
| XVR5832S-4KL-I3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
main processor  | Industrial-grade processor  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System  | Embedded Linux  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface  | Web; Local GUI  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
perimeter protection  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance AI by Recorder (Number of Channels)  |  Advanced Model: 6 channels, 10 IVS for each channel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes  | gender; age group; glasses; expressions; face masks; beard  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Recorder (Number of Channels)  | 6 channels (up to 12 face images/s each channel)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity  | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Recorder (Number of Channels)  | 6 channels  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio inputs  |  16-channel BNC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Outputs  | 1-channel BNC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk  | 1-channel BNC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Inputs  | 16 channels  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output  | 6 channels (5-channel relay output, 1-channel 12V 1A output)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD Interface  | 8 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA  | 1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232  | 1 port, for PC Communication & Keyboard  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485  | 1 port, for PTZ control  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB  | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI  | 2  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA  | 1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port  | 2 (10/100/1000Mbps Ethernet port, RJ-45)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | 100-240VAC, 50/60Hz  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption  | <30W (without HDD)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight  | 7.00kg (15.44lbs)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | 9.60kg (21.17lbs)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions  | 439.9 mm × 463.0 mm × 94.9 mm (17.32'' × 18.23'' × 3.73'') (W × D × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions  | 570.0 mm × 570.0 mm × 226.0 mm (22.45" × 22.45" × 8.90") (W × D × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature  | –10°C to +55°C (14°F to +131°F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity  | 10%–90% (RH)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation  | Racks or desktops  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  |  CE: CE-LVD: EN 60950-1/IEC 60950-1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
