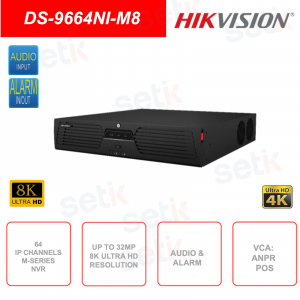

64 channel IP NVR - Up to 32MP 8K Ultra HD - POS - ANPR - Audio - Alarm - HDMI - VGA

Hikvision DS-9664NI-M8 NVR - 64 IP Channels - Resolution up to 8K 32MP , Bandwidth: 400Mbps in/400Mbps out - Codec up to H.265+ - 2xHDMI output (1x8K, 1x4K), VGA (FullHD), 4xUSB (2x 2.0 - 2x 3.0), up to 8 SATA HDDs of 16TB (each, not included), 1xeSATA, 2-way Audio, 2 audio outputs, 16in/9out Alarm - POS - ANPR - 2xRJ45 1000 Mbps - Hik-Connect Application - DDNS .

SOLUTION PRICE LIST: REQUEST DEDICATED QUOTE

Reference: DS-9664NI-M8

Brand: Hikvision

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Technical Data Sheet Further Details Download

DS-9664NI-M8 | HIKVISION NVR - 64 IP CHANNELS - RESOLUTION UP TO 32MP - H.265+ - AUDIO - ALARM - POS - ANPR

NVR - Hikvision - DS-9664NI-M8 - 64 IP channels
Resolution: Up to 32MP 8K ULTRA-HD 32Megapixels - 64 channels - 1xHDMI (4K) - 1xHDMI (8K) - 2xVGA (Full HD) - Synchronous playback up to 16 channels - 4xUSB (2x2.0 + 2x3.0) - Bidirectional audio - 2 audio outputs - 16 Inputs + 9 alarm outputs, ANPR, POS - 8xSATA Intreface for 16TB HDD (not included - 1x eSATA - 2xRJ45 10/100/1000Mbps - RS-232 Control Interface - Hik-Connect Application - DDNS - Ideal for video surveillance systems.

24 month warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

64 CHANNELS:

64 Channels up to 32 MEGAPIXEL 8K ULTRA-HD
Recording Resolution: 32MP/24MP/12MP/8MP/7MP/6MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback of up to 16 channels.

8K ULTRA-HD RESOLUTION:

Technology up to 8K 32 Megapixels 7680 × 4320
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

VIDEO COMPRESSION:

This NVR supports video compression in H.264 and also in the new H.265+ standard!

VCA (VIDEO ANALYSIS):
Supports video analysis functions with Hikvision cameras

HIK-CONNECT

Hik Connect allows you to control the device remotely

ANPR:
(Automatic Network Replenishment). This feature allows you to store locally when the network is temporarily unavailable or congested. Normally in case of events of this type, the NVR stops recording, but this type of NVR overcomes this problem. The ANR also manages the information flow to the NVR, thus avoiding network congestion

RJ45:

2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

HARD DRIVES:

Supports up to 8 SATA III HDDs, up to 16 TB (each) capacity.

HDMI (up to 8K!) and VGA(full-hd) output:

Present

1 x HDMI with resolution up to 8K ULTRA-HD,
1 x HDMI up to 4K Ultra HD
2x VGA up to 1080p!

USB:

Front Panel: 2 × USB 2.0

Front Panel: 2 × USB 3.0

Audio and Alarm:

This NVR features 1 audio input + 1 audio output ,

16 inputs + 9 alarm outputs

Data sheet

DS-9664NI-M8
Video and Audio
IP Video Input	64-ch
Incoming Bandwidth	400Mbps
Outgoing Bandwidth	400Mbps
HDMI 1 Output	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz , 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode	HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output	2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	32MP/24MP/12MP/8MP/7MP/6MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF MP/5 MP/4 MP/3
Synchronous playback	16-ch
Decoding Capability	2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p ( 30 fps)
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, UDP, RTP, RTCP
Network Interface	2, RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
RAID
RAID Type	RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Serial Interface	1 RS-485 (full-duplex), 1 RS-232
SATA	8 SATA interfaces supporting hot-plug
eSATA	1 eSATA interface
Capacity	Up to 16 TB capacity for each disk
Alarm In/Out	16/9
USB Interface	Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12V	Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V	12 VDC, 1 A power output
General
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	≤ 50W (without HDD)
Working Temperatures	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Chassis	2U chassis
Dimension (W × D × H)	445 × 465 × 93 mm (17.5" × 18.3" × 3.7")
Weight	≤ 10kg (22lb)
Certification
Obtained Certification	CE, FCC
FCC	Part 15 Subpart B, ANSI C63.4-2014
THERE IS	EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
