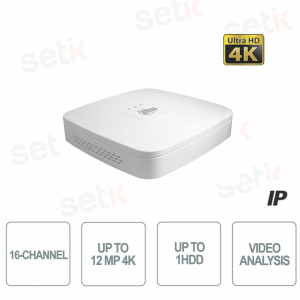

Nvr 16 channels ip 4k 12mpx Ultra HD h265+ audio Dahua

-57%

NVR2116-4KS3 IP Nvr 16 Channels - New 4K Series - Dahua 16 Channels 4K ULTRA-HD up to 12Megapixel - Max 144Mbps broadband - Smart H.265+, Smart H.264+, H.265, H.264 y MJPEG
ONVIF compatible - 1 Input + 1 Audio Output - Cloud P2P - 24 month warranty

Reference: NVR2116-4KS3

Brand: Dahua

https://www.setik.biz/en/recording-devices/9622-dahua-nvr2116-4ks3-nvr-16-channels-ip-4k-12mpx-ultra-hd-h265-audio-dahua.html

€120.66

€280.60 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available from 30 May 2024

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Technical Data Sheet Further Details Download

IP NVR 16 CHANNELS 4K ULTRA-HD UP TO 12 MEGAPIXELS - H.265+ - AUDIO - DAHUA
VERSION WITHOUT POE PORTS!

16 Channel IP NVR - New 4K Series - Dahua
16 channels 4K ULTRA-HD up to 12Megapixel - Max 80Mbps broadband - Smart H.265+, Smart H.264+, H.265, H.264 y MJPEG
ONVIF® compatible - 1 Input + 1 Audio Output - Cloud P2P
The color may vary from white to black depending on the arrivals. - 24 month warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

Product details

	This NVR supports video compression in Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG Optimized for Mobile
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	16 Channels H.264+/H.265+ Recording up to 12 Megapixels! Resolution\frame ratio and variable bit rate (16Kbps~20Mbps) for single channel All channels synchronize Playback and GRID interface in real time Up to 320Mbps incoming broadband
	Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec and more... (operation with the models proposed here must be verified on a case-by-case basis)
	Compliant with ONVIF® 2.4 standard
	Intelligent 3D Positioning with PTZ Dome Cameras (Dahua)
nt	This DVR has 1 Audio IN and 1 Audio OUT RCA
	Compatible with iPhone, iPad, Android
	Cloud function with Lechange (formerly Easy4IP)
	Prepared for mounting 1 SATA 20TB disk - NOT INCLUDED ATTENTION: on NVR systems use specific audio/video discs. For more information, read our dedicated article . .
	This NVR features 2 USB 2.0 ports
	Resolution up to 4K 12Megapixel ( 3840×2160) via HDMI Port! New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. There is also VGA output with resolution up to 1080P
	1 RJ45 port (10 / 100 Mbps)
	Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
	Ability to overwrite the disk when it is full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time
	Pentaplex: Recording, Live View, Recording History, Remotely, Backup
	This product is covered by a 24 month warranty.

Data sheet

Model: DVR

NVR2116-4KS3

SYSTEM

Main Processor

Industrial-grade processor

Operating System

Embedded LINUX

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

SMD Plus

AI by Camera

Perimeter protection; SMD Plus

PERIMETER PROTECTION

Perimeter Performance of AI by Camera (Number of Channels)

4 channels

SMD PLUS

SMD Plus by Recorder

4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

4 channels

VIDEO&AUDIO

Access Channel

16 Channel

Network Bandwidth

AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing

Resolution

12MP; 8MP; 5MP; 4MP; 3MP; 1080p; 720p; Q1

Decoding Capability

AI disabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 5MP@30fps; 2-channel 4MP@30fps; 4-channel 1080p@30fps

Video Output

1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

1/4/8/9/16

Third-party Camera Access

ONVIF

STANDARD COMPRESSION

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726;

NETWORK

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK

Browsers

Chrome; IE; Safari; Edge; Firefox

ALARM

General Alarm

Motion detection; camera external alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

Perimeter protection; SMD Plus

Alarm Linkage

Recordings; snapshot; buzzers; log; presets; e-mail; tours

RECORDING BACKUP

Playback Channel

1/4

Search Mode

Time /Date, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

PORT

Audio Input

1-channel RCA

Audio Output

1-channel RCA

Alarm Input

NA (2 channels are optional)

Alarm Output

NA (1-channel 12V 1A output is optional)

HDD Interface

1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.

USB

2 (2 rear USB 2.0 ports)

HDMI

VGA

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

GENERAL

Power Supply

12VDC, 1.5A

Power Consumption

<10W (without HDD)

Net Weight

0.45 kg (0.99 lb)

Gross Weight

1.05 kg (2.31 lb)

Product Dimensions

204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)

Packaging Dimensions

364.0 mm × 96.0 mm × 261.0 mm(14.33" × 3.78" × 10.28")(W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperatures

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Rack or desktop

Certifications

CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017 +A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
