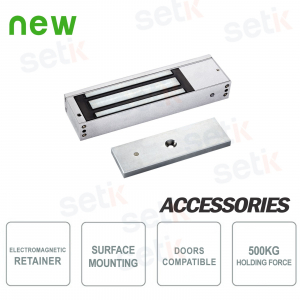

ELECTROMAGNETIC DOOR LOCK - LED - UP TO 500KG - SETIK
 Electromagnetic lock - Setik
 Electromagnetic lock - Setik It can be installed on wooden, glass, metal and fire doors.
Resistance up to 500kg - Lock with supervision
Protected against overloads (NA / NC / COM)
Product details

- Electromagnetic latch with LED - Setik
- Surface installation
- Suitable for wooden, glass, metal and fire doors
- Resistance up to 500kg
- Operation by applying voltage
- Lock with supervision (NA / NC / COM)
- Compatible with Dahua Access control
- Consumption: 420 mA at 12V DC, 210 mA at 24V DC
- Power supply NOT included
- Size: 265 x 71.8 x 38.8 mm
- Weight: 4.5 kg
Data sheet
| Model | CONAC-673 |
| Retain force | 500Kg |
| LED Indicator | Red (unlock), green (lock) |
| Lock status | NA, NC, COM |
| Input voltage | 12V DC / 24V DC |
