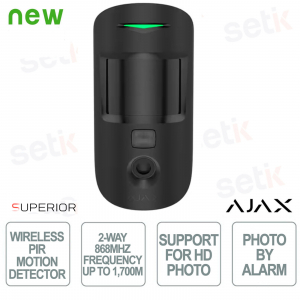

Ajax Superior MotionCam HD (PhOD) Jeweler Black – Wireless PIR Detector with HD Photos, PhOD and 1,700 m Range

Ajax Superior MotionCam HD (PhOD) Jeweler Black – Wireless PIR Detector with HD Photos, PhOD and 1,700 m Range

 
NEW

AJAX SUPERIOR | 118275.309.BL1 #118275 | Ajax Superior MotionCam HD (PhOD) Jeweller black is a wireless PIR motion detector with advanced photo verification in HD up to 960×720 px , ideal for confirming alarms with clear and detailed images. It supports photo on demand (PhOD) , for alarm, scenario, schedule and arm/disarm, with sending up to 5 photos in sequence and fast delivery (approx. 4.5 s at 320×240). It offers detection up to 12 m with a horizontal angle of 88.5° , temperature compensation and 4 sensitivity levels to reduce false alarms, including immunity to small animals. Jeweller + TurboWings communication ensures a range of up to 1,700 m , encrypted data and protection from interference. Complete security with anti-sabotage protection (tamper and anti-spoofing authentication) and up to 4 years of battery life with pre-installed batteries. Ajax

Technical Data Sheet

Reference: 118275.309.BL1

Brand: Ajax Systems

EAN: 4823114068324

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

CHRISTMAS WEEK 2025 ×

FREE SHIPPING ON THE ENTIRE CATALOGUE!
Minimum purchase €249
   CHRISTMAS-FREE-E

118275.309.BL1 | WIRELESS PIR MOTION DETECTOR WITH EXTENDED PHOTO VERIFICATION - SUPPORTS HD RESOLUTION

Ajax

Ajax Superior MotionCam HD (PhOD) Jeweller, 118275.309.BL1, black is a wireless PIR motion detector with HD photo verification up to 960×720 px , designed to confirm alarms with clear images and reduce false positives. It supports Photo on Demand , as well as photos for alarm , scenario , schedule and arm/disarm , with sending up to 5 images and first delivery in approximately 4.5 s (at 320×240). Jeweller + TurboWings communication offers a range of up to 1,700 m , encrypted data and protection against interference. The sensor guarantees detection up to 12 m with an 88.5° angle, temperature compensation and 4 sensitivity levels , including pet immunity to prevent unwanted alarms. It completes security with anti-sabotage protection via tamper and device authentication , and battery life of up to 4 years with pre-installed batteries.

Main specifications:

- 960×720 HD photos with HDR and IR illumination for clear images even in the dark

- Photo on Demand and photos for alarm/scenario/planning/arm-disarm with up to 5 images

- PIR detection up to 12m with 88.5° angle, temperature compensation and 4 sensitivity levels

- Jeweller + TurboWings communication up to 1,700 m, encryption and anti-interference

- Anti-tamper protection with anti-spoofing authentication

- Battery life up to 4 years with 2 pre-installed CR123A batteries

Further details

✅ Jeweler Communication :
It ensures a reliable and protected radio connection with a range of up to 1,700 m in open fields, with data encryption , periodic device status checks via app and frequency hopping to reduce interceptions and interference, maintaining a stable connection even in complex environments.
✅ TurboWings Communication :
Optimizes image transfer for photo verification , improving the speed and continuity of sending so you receive photos more quickly and consistently, even in less than ideal radio conditions, increasing the responsiveness and reliability of visual verification.
✅ Detection :
It provides PIR detection up to 12m with a horizontal angle of 88.5° , includes temperature compensation ( -10°C to +40°C ) for consistent performance and offers 4 adjustable sensitivity levels , with pet immunity to reduce false alarms.
✅ Photo-verification (PhOD) :
It offers HD photos up to 960×720 px , sending up to 5 images in sequence and supports shots on demand , for alarm, scenario, schedule and arm/disarm; integrates IR illumination for low light and HDR for more readable images even in backlight or difficult lighting.
✅ Anti-sabotage protection:
It integrates a tamper that signals disassembly or tampering attempts and uses device authentication to prevent spoofing, ensuring a superior level of security against physical attacks and compromises.
✅ Power supply:
It runs on 2 pre-installed CR123A batteries and lasts up to 4 years (up to 3 years with Photo on Demand enabled), with low battery notification to ensure continuous operation and programmable maintenance.

Technical data sheet

118275.309.BL1
Communication
Jeweler communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced sabotage protection.
  • Reloading the data packages in case of transmission errors
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element PIR sensor
Motion detection distance up to 12 meters
up to 39 ft
When installed at the height of 2.4 meters
When installed at the height of 7.9 ft
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 4 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity weight: up to 20 kg
weight: up to 44 lb
height: up to 50 cm
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Photo verification
Photo by alarm The built-in camera is activated if the detector is armed and motion is detected.
Photo on demand The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default.
Photo by scenario The detector's camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default
Photo by schedule The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.
Photo by arming/disarming The detector automatically takes photos when the security state is changed.
Adjustable photo resolution 640 × 480 px
320 × 240 px (default)
160 × 120 px
Adjusted by a PRO or user with admin rights in the Ajax app
IR backlight For night photography and low light conditions.
Series of pictures from 1 to 5 snapshots
Adjusted by a PRO or user with admin rights in an Ajax app
Photo delivery up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
Photo delivery time depends on the image resolution selected in the device settings
Recommendations It is recommended to install the detector at the height of 2.4 meters.
It is recommended to install the detector at a height of 7.9 ft.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the detector from the surface or remove it from the mounting panel
Holding screw to secure the detector on SmartBracket
Protection against forgery devices authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Battery 2 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 4 years
With Photo on demand toggle disabled.
up to 3 years
With Photo on demand toggle enabled.
Detector's operating voltage range 4.2−6.2 V⎓
Detector's nominal operating voltage 6 V⎓
Quiescent detector's current consumption at nominal voltage 0.030 mA
Maximum detector's current consumption at nominal voltage 400 mA
Full capacity 1,550 mAh
Low battery voltage 4.705–5.00 V⎓
Low battery recovery voltage 5.055–5.355 V⎓
End-of-life battery voltage 3.80 V⎓
Device is switched off
End-of-life battery capacity 150 mAh
Manufacturer Panasonic
Enclosure
Color Black
Dimension 135 × 70 × 60 mm
5.31" × 2.75" × 2.60"
Weight 170 g
5.54 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50
Complete set Superior MotionCam HD (PhOD) Jeweller
SmartBracket mounting panel with holding screw
2 x CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
