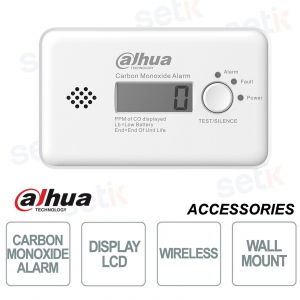

HY-GC21B-W2-868 | WIRELESS CARBON MONOXIDE DETECTOR


Dahua

The Dahua HY-GC21B-W2-868 is a wireless carbon monoxide (CO) detector designed to ensure safety in indoor environments such as homes, hotels and restaurants. Equipped with a high-performance electrochemical sensor, it accurately detects CO leaks and activates visual and audible alarms when concentrations reach dangerous thresholds. The device communicates on 868 MHz frequency with AES128 encryption and supports real-time notifications via the DMSS app. Easy to install on the wall, it offers a 3-year autonomy with a replaceable CR123A battery.

Further details

Electrochemical sensor for accurate carbon monoxide detection.
Audible alarm above 85dB at 3 meters, with LED indicators for alarm, fault and power status.
LCD display showing CO concentration in real time.
Advanced functions: automatic test, low battery warning and 45 seconds silent function.
Wireless communication on 868 MHz frequency with range up to 1000 m in open field.
Powered by 3V CR123A battery, 3-year battery life.
Certifications: Complies with EN 50291-1:2018 and EN 50291-2:2019 standards, TÜV and CE certified.

Technical data sheet

MODEL EAP6218-C
Working Principle
Collection Type Carbon monoxide (CO)
Sensor Type Electrochemical
Alarm
Alarm Type CO alarm, fault warning, low battery warning
Alarm Volume Over 85dB (A) at 3 m (9.84 ft)
Alarm Mode Visual and audible alarm
Silence Function Support
Silence Duration About 45 seconds
Alarm Response Threshold 50 ppm: 60 min–90 min
100 ppm: 10 min–40 min
300 ppm: < 3 min
Wireless
Carrier Frequency 868MHz
Communication Distance Up to 1000 m (3280.84 ft) in an open space
Frequency Hopping Yes
Encryption Mode AES128
Basic Parameters
Display LCD
Indicator Light LED (red/yellow/green)
LED Instructions Alarm: Red indicator
Fault: Yellow indicator
Power: Green indicator
Power Supply
Battery Life 3 years
Power Source 3V CR123A lithium battery (replaceable)
Operating Current Monitoring Current: ≤20uA
Alarm Current: ≤10mA
Operating Environment
Operating Environment Indoor use only
Operating Temperature –10°C to +40°C (+14°F to +104°F)
Operating Humidity ≤95% RH (non-condensing)
Appearance
Color White
Material PC + ABS
Dimensions 116.4 mm × 71.7 mm × 28.3 mm (4.58" × 2.82" × 1.11")
Weight 125 g
Installation Wall Mount
Certification
Certifications TÜV and CE listed
Compliance Standard EN 50291-1:2018, EN 50291-2:2019
