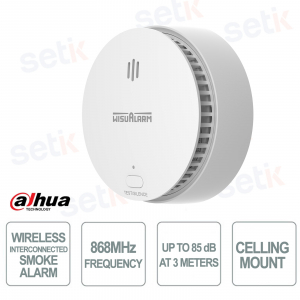

HY-SA30A-R8 | WIRELESS SMOKE DETECTOR

Dahua

The HY-SA30A-R8 wireless smoke detector provides advanced security for residential environments thanks to split-spectrum technology and wireless transmission to up to 24 devices. Featuring an 85dB audible alarm, a silence function, a built-in 10-year battery, and visual and audible alerts, it is ideal for apartments, villas, and dormitories.

Main specifications:

- Split-spectrum photoelectric sensor

- 85dB alarm with visual signal

- Silencing with infrared remote control

- Built-in battery with 10-year battery life

- Wireless interconnection of up to 24 devices

- CE and TÜV certified, compliant with EN 14604:2005

Further details

Split-Spectrum Technology:
The smoke detector integrates a split-spectrum optical sensor that improves its ability to detect different types of smoke, both slow- and fast-burning. This ensures high sensitivity with a significant reduction in false alarms, offering greater security in any home.
Test and Mute Function:
The device features a convenient multifunction button that allows you to perform periodic testing and temporarily silence the alarm if necessary. It also features an infrared remote control for maximum comfort and convenience.
Loud Sound Alarm :
When detecting smoke, the DHI-HY-SA30A-R8 emits a loud audible alarm of over 85 dB at 3 meters, ensuring clear warning even in large rooms or in the presence of other ambient noise.

Low Battery Signal:
It features an intelligent battery monitoring system with light and sound alerts. When the built-in, long-lasting (10-year) battery is low, the battery indicator flashes and the device beeps to prevent malfunctions.

Intelligent Status LED:
The LED indicator provides constant visual feedback on the operating status of the device:
  • Standby : Green light flashing every minute
  • Alarm : Red light flashing every second
  • Fault : Red light flashing every minute
  • Low battery : Red light flashing every minute
This system allows you to easily check the status of the detector without the need for manual testing.

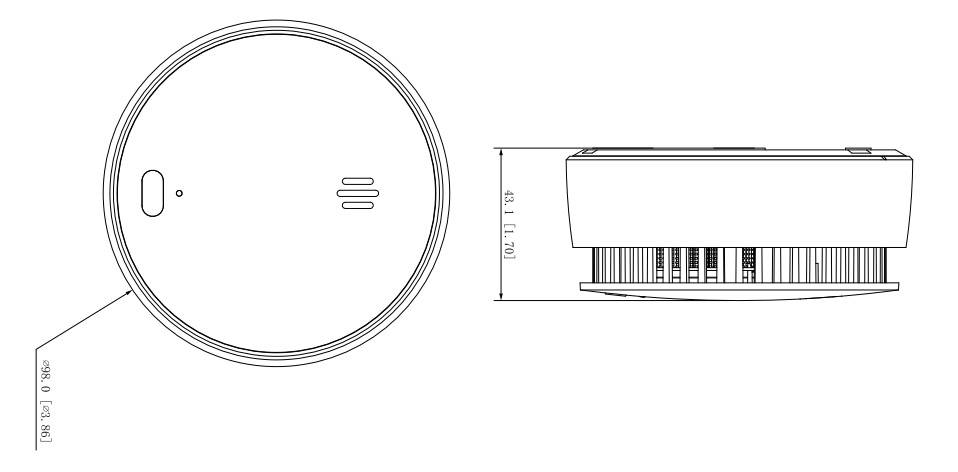

HY-SA30A-R8 dimensions

Technical data sheet

HY-SA21A-W2-868

Working Principle

Collection Type

Smoke

Sampling Period

9 s

Sensor Type

Photoelectric

Alarm

Alarm Type

Smoke alarm, fault alarm, low battery warning

Alarm Volume

85dB (A) at 3 m (9.84 ft)

Alarm Mode

Visual and audible alarm

Silence Function

Yes

Silence Duration

About 12 min

Alarm Response Threshold

0.2 dB/m - 0.3 dB/m

Basic Parameters

Indicator Light

Alarm, fault and operation indicator

LED Instructions

Standby: Green indicator flashes once per minute
Alarm: Red indicator flashes once per second
Fault: Red indicator flashes once per minute
Low battery warning: Red indicator flashes once per minute

Operating Frequency

868 MHz

Maximum Number of Interconnected Units

24pcs

Coverage Area

When the height of the space is less than 8 m (3.28 ft), the protection area of a device is 20 m2–40 m2

Power Supply

Battery Life

10 years

Operating Voltage

3V CR123A lithium battery (replaceable)

Operating Current

Monitoring current: ≤ 15uA (avg.)
Alarm current: ≤ 25mA (avg.)

Operating Ambient

Operating Environment

Indoor

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

≤ 95% RH (non-condensing)

Appearance

Color

White

Casing

PC+ABS

Dimensions

φ98mm × H43.1mm (φ3.85" × H1.70")

Weight

138 g (0.30 lb)

Installation

Ceiling Mount

Certifications

Certifications

TÜV and CE listed

Compliance Standard

EN 14604:2005+AC:2008
