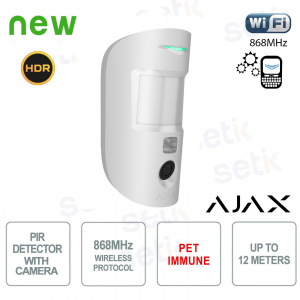

Ajax MotionCam HDR Jeweller White – PIR sensor with HDR photo verification

Ajax MotionCam HDR Jeweller White – PIR sensor with HDR photo verification

 
IN PROMOTION New

117744.307.WH1 #117744 | Ajax MotionCam HDR, Jeweller White is a wireless PIR sensor with photo verification that ensures advanced security and clear images even in low light conditions. Thanks to HDR technology, photos are sharper and more balanced, improving visual quality for quick and effective identification. With a detection range of up to 12 meters and a coverage angle of 88.5°, it integrates intelligent false alarm prevention algorithms and immunity to pets weighing up to 20 kg. With up to 4 years of battery life with pre-installed batteries, it offers secure communication with the hub via Jeweller and Wings and includes anti-sabotage protection for reliable surveillance.

Technical Data Sheet

Reference: 117744.307.WH1

Brand: Ajax Systems

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

117744.307.WH1 | WIRELESS IR MOTION DETECTOR WITH PHOTO ALARM - WHITE

Ajax

The Ajax MotionCam HDR Jeweller White motion detector, 117744.307.WH1 , is an advanced wireless IR sensor that detects motion up to 12 meters, ensuring reliable security and quick photo verification in the event of an alarm. Thanks to IR backlighting and HDR technology, images are clear even in low light conditions, improving light balance and detail. With up to 4 years of battery life and secure communication with Ajax systems, it offers professional protection against false alarms and easy installation.

Main specifications:

- Detection up to 12 m with an 88.5° angle

- Photo verification with resolution up to 640×480 px and HDR support

- Up to 4 years of battery life with pre-installed batteries

- Immunity to animals up to 20 kg (height up to 50 cm)

- Secure communication with Jeweller and Wings technology

Further details

✅ Communication:
It uses Jeweller and Wings technologies, with a communication range of up to 1,700 m in open terrain. Data is protected by high-speed encryption, and regular pings allow for constant monitoring of the device's status. Furthermore, frequency hopping prevents interference and ensures reliability even in complex environments.
✅ Detection :
The PIR sensor covers a distance of up to 12 meters with a wide horizontal angle of 88.5° , adapting to different temperature conditions. Thanks to the SmartDetect algorithm, it reduces false alarms and is immune to pets up to 20 kg in weight and 50 cm in height , making it perfect for homes with dogs or cats.
✅ Photo verification :
It integrates a camera with a resolution of up to 640x480 pixels , capable of sending the first photo in just 9 seconds . It supports bursts of up to 5 shots and features IR backlighting to ensure clear images even in the dark. The HDR function equalizes lighting, offering more detailed and reliable photos in any scenario.
✅ Anti-sabotage protection:
It includes a tamper alarm system to detect openings or tampering attempts. Additionally, device authentication protects against counterfeiting, increasing the overall level of security.
✅ Power supply:
It works with 2 pre-installed CR123A batteries , guaranteeing up to 4 years of battery life . Low battery notifications allow for timely and surprise-free maintenance, making it a practical and reliable device over time.

Technical data sheet

117744.307.WH1
Communication
Jeweler Communication Technology Proprietary wireless communication technology for transmitting commands, alarms and events.
Main features:
  • Two-way communication.
  • Advanced anti-sabotage system.
  • Block cipher with movable key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.
Operating frequencies 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Based on the sales region.
Maximum Effective Radiated Power (ERP) up to 20 mW
Radio signal modulation GFSK
Radio communication range up to 1,700 m
up to 5,500 ft
Between the hub and connected devices (in open field).
Encrypted communication All stored and transmitted data is protected by block encryption with a mobile key.
Frequency hopping To avoid radio interference and signal jamming.
Wings Communication Technology Proprietary wireless communication technology for transmitting photos.
Main features:
  • Two-way communication.
  • Block cipher with movable key.
  • Advanced anti-sabotage system.
  • Reload data packets in case of transmission errors.
  • Photo delivery control.
Operating frequencies 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Based on the sales region.
Radio communication range up to 1,700 m
up to 5,500 ft
Between the hub and connected devices (in open field).
Encrypted communication All stored and transmitted data is protected by block encryption with a mobile key.
Frequency hopping To avoid radio interference and signal jamming.
Detection Sensor type PIR sensor
Motion detection distance up to 12 m
When installed at a height of 2.4 m.
up to 39 ft
When installed at a height of 7.9 ft.
Motion detection angle horizontal: 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The detector lens must be positioned perpendicular to the path you take to enter the room.
Sensitivity 3 levels
Set by a PRO or user with administrator rights in Ajax apps.
Pet immunity weight: up to 20 kg
height: up to 50 cm
weight: up to 44 lb
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm.
Temperature compensation Effective motion detection at temperatures from −10°C to +40°C.
Effective motion detection at temperatures between 14°F and 104°F.
Photo-verification Photo for alarm The built-in camera is activated when the detector is armed and motion is detected.
Photo resolution 640 × 480 px
320 × 240 px (by default)
160 × 120 px
Set by a PRO or user with administrator rights in Ajax apps.
HDR image Improves detail accuracy in bright and dark scenes.
The feature is available for devices with firmware version 15.59.35.14 or later1.
IR illumination For night or low-light shots.
Images in series 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px
1 to 3 images with a resolution of 640 × 480 px
Set by a PRO or user with administrator rights in Ajax apps.
Photo delivery time within 7 s at a resolution of 160 × 120 px
within 9 s at a resolution of 320 × 240 px
within 20 s at a resolution of 640 × 480 px
Suggestions It is recommended to install the detector at a height of 2.4 m (7.9 ft). The device is designed for indoor use only.
Anti-sabotage protection Tamper alarm Notifications when attempting to detach the device from the surface or remove it from the mounting panel.
Protection against counterfeiting device authentication
Communication loss detection in 36 s
Detection time depends on Jeweller or Jeweller/Fiber settings.
Diet Batterie 2 × CR123A
Pre-installed.
Calculated battery life up to 4 years
Custody Dimensions 135 × 70 × 60 mm
5.31″ × 2.75″ × 2.36″
Weight 170 g
6 oz
Operating temperatures from −10 °C to +40 °C
from 14°F to 104°F
Maximum permissible humidity up to 75%
Protection class IP50
Color White
Complete set MotionCam Jeweler
SmartBracket mounting panel
Installation kit
2 × CR123A batteries (pre-installed)
Quick Guide
Additional Information Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form

⯈ Complete your purchase
