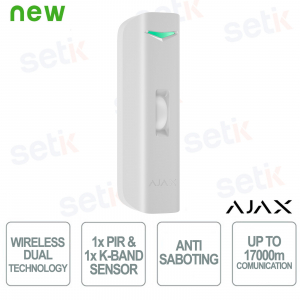

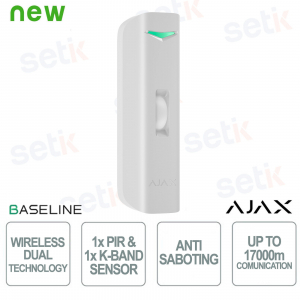

Ajax Curtain Outdoor Mini Jeweller – Wireless Outdoor PIR and Microwave Curtain Sensor, 5 m Range, IP55, Anti-sabotage

Ajax Curtain Outdoor Mini Jeweller – Wireless Outdoor PIR and Microwave Curtain Sensor, 5 m Range, IP55, Anti-sabotage

 
New

130273.345.WH1 #130273 - The Ajax Curtain Outdoor Mini Jeweller is an outdoor and indoor curtain sensor with dual PIR and K-band microwave technology, capable of detecting motion up to 5 meters with a vertical angle of 100° and a horizontal angle of 15° . Thanks to the SmartDetect algorithm and animal immunity up to 100 cm, it minimizes false alarms. It offers wireless communication between Jeweller and Wings up to 1,700 m with encryption and anti-jamming protection. It features anti-masking, tamper protection and easy installation via SmartBracket , with a battery life of up to 3 years and IP55 protection. Ajax

Technical data sheet

Reference: 130273.345.WH1

Brand: Ajax Systems

EAN: 4823114074325

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

130273.345.WH1 | AJAX CURTAIN OUTDOOR MINI JEWELLER - WIRELESS DUAL-TECHNOLOGY CURTAIN MOTION DETECTOR FOR OUTDOOR AND INDOOR USE


Ajax Systems

The Ajax Curtain Outdoor Mini Jeweller, 130273.345.WH1, is a wireless curtain motion detector for indoor and outdoor use, ideal for protecting windows, doors, and passageways thanks to its dual PIR and K-band microwave technology. Designed for high performance and reduced false alarms, it ensures maximum security with stable radio communication and long battery life.

Perfect for residential and professional installations, it combines advanced technology and ease of use in a compact and durable design.

Main specifications:

- Detection up to 5 m with a vertical angle of 100° and a horizontal angle of 15°

- Dual PIR + microwave technology with SmartDetect algorithm to filter false alarms

- Immunity to animals up to 100 cm in height

- Anti-masking and anti-sabotage protection with integrated tamper and accelerometer

- IP55 protection rating, operation from -25°C to +60°C

- Battery life up to 3 years, easy installation with SmartBracket or corner mount

Further details

✅ Advanced detection:
Equipped with dual PIR and K-band microwave technology , the sensor guarantees precise detection up to 5 meters with a 100° vertical and 15° horizontal angle, eliminating blind spots. Ideal for protecting windows, doors, and passageways, it ensures reliable performance both indoors and outdoors.

✅ False alarm prevention:
Thanks to the intelligent SmartDetect algorithm and automatic temperature compensation , the device distinguishes human movements from thermal interference, animals, or vegetation. It has three adjustable sensitivity levels and the Pet Immunity function , which ignores animals up to 100 cm high , avoiding unwanted detections.
✅ Jeweler Communication:
Jeweller technology ensures a stable and secure radio connection up to 1,700 meters in open terrain. Communication is encrypted and uses frequency hopping to prevent interference or jamming attempts, with constant monitoring of the sensor's status.
✅ Wings Communication:
The Wings channel allows for the transmission of data and notifications in real time, ensuring immediate response even in difficult radio conditions. The technology is designed to ensure signal redundancy and operational continuity in the event of congestion on the main network.
✅ Anti-sabotage protection:
The sensor integrates an anti-masking system compliant with EN 50131 Grade 2 , a tamper switch , and an internal accelerometer that sends notifications in case of removal or tampering. Additionally, the SmartBracket security screw physically locks the device to the base for additional mechanical protection.
✅ Effortless installation and maintenance:
Thanks to the SmartBracket support and optional corner mounting , installation is quick and without the need to open the device body. Addition to the system is done by scanning the QR code , with remote management and configuration via the Ajax app . Power is provided by 2 pre-installed CR123A batteries with a battery life of up to 3 years , minimizing maintenance.

Technical data sheet

130273.345.WH1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication
  • Advanced anti-sabotage
  • Block encryption featuring a dynamic key
  • Instant notifications
  • Remote control and configuration in Ajax apps
Frequency bands 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio communication range up to 1,700 m
up to 5,550 ft
Between the detector and a hub (or a range extender) in an open space
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming.
Wings communication technology Proprietary wireless communication technology for uploading firmware updates.
Key features:
  • Two-way communication
  • Advanced anti-sabotage
  • Block encryption featuring a dynamic key
  • Data packets reload in case of transmission errors
Frequency bands 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Radio communication range up to 1,700 m
up to 5,550 ft
Between the detector and a hub (or a range extender) in an open space
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming.
Detection
Sensitive elements 1 × PIR sensor
1 × K-band microwave sensor
K-band microwave sensor to prevent false alarms caused by thermal interference.
Operating frequency: 24 GHz.
Motion detection distance up to 5 m
up to 16.4 ft
When installed at a height of 1 m.
When installed at a height of 3.3 ft.
Motion detection angles horizontal: 15°
vertical: 100°
Motion detection speed 0.3 to 2.0 m/s
1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity 3 levels
Adjusted by a PRO or a user with admin rights in the Ajax apps.
Pet immunity height: up to 100 cm (3.3 ft)
weight: irrelevant
The detector should be installed at a height of 1 meter, and the slider on its enclosure should be set to the Pet position.
The detector should be installed at a height of 3.3 feet, and the slider on its enclosure should be set to the Pet position.
False alarm prevention dual motion detection technology
SmartDetect
Software algorithm.
Temperature compensation Effective motion detection at temperatures from −25 °C to +60 °C. (−13 °F to +140 °F)
Recommendations The device's recommended installation height is 5 m on the ceiling and 1 m on the side.
The device's recommended installation height is 16.4 ft on the ceiling and 3.3 ft on the side.
The device is designed for indoor and outdoor use.
Sabotage protection
Tamper alarm Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing device authentication
Anti-masking system detects attempts to block the detector view
Accelerometer alarm when the detector is moved
Must be activated when the detector is installed on third-party brackets.
Holding screw To secure the detector on SmartBracket.
Communication loss detection after 36 s
Detection time depends on Jeweler or Jeweler/Fibra settings.
Power supply
Battery 2 × CR123A
Pre-installed.
Type type C
Calculated battery life up to 3 years
Detector's operating voltage range 4.1−6.2 V⎓
Detector's nominal operating voltage 6 V⎓
Quiescent detector's current consumption at nominal voltage 30 μA
Maximum detector's current consumption at nominal voltage 600 mA
Full battery capacity 1,600 mAh
Low battery voltage 4.48 V⎓
Low battery recovery voltage 5.14 V⎓
End-of-life battery voltage 4.1 V⎓
Device is switched off.
End-of-life battery capacity 170 mAh
Manufacturer Huiderui or Panasonic
Enclosure
Detector dimensions 145 × 32 × 43 mm
5.71″ × 1.26″ × 1.69″
Dimensions of detector with angle mount 145 × 44 × 54 mm
5.71″ × 1.73″ × 2.13″
Weight of detector 130 g
4.59 oz
Weight of angle mount 20 g
0.7 oz
Operating temperature range from −25 °C to +60 °C
from –13 °F to +140 °F
Operating humidity up to 95%
Protection class IP55
Color White
Complete set Curtain Outdoor Mini Jeweler
SmartBracket mounting panel
2 × CR123A battery (pre-installed)
Angle mount
Installation kit
Quick start guide
