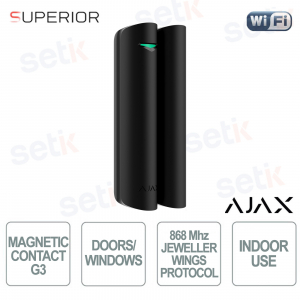

Ajax DoorProtect G3 Jeweller Superior Black Opening Sensor: Advanced Security for Doors and Windows

Ajax DoorProtect G3 Jeweller Superior Black Opening Sensor: Advanced Security for Doors and Windows

 
NEW New

130591.347.BL1 #130591 - Superior DoorProtect G3 Jeweler is a black wireless opening sensor designed to protect doors and windows with maximum precision, thanks to two reed switches, an accelerometer, and anti-masking sensors. It offers communication up to 3,500 m , advanced encryption, and tamper resistance for professional security. Superior Jeweler technology ensures OTA updates and complete immunity to interference. Easy to install via QR code and SmartBracket, it guarantees up to 5 years of battery life. An advanced device ideal for modern, reliable, and fully app-managed burglar alarm systems. Ajax

Technical Data Sheet

Reference: 130591.347.BL1

Brand: Ajax Systems

EAN: 4823114074790

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

130591.347.BL1 | WIRELESS OPENING SENSOR WITH REED RELAY, SHOCK SENSORS, TILT SENSORS, AND MAGNETIC MASKING

Ajax

The DoorProtect G3 Jeweller Superior , 130591.347.BL1 , black, is an advanced wireless sensor designed to protect doors and windows with extremely precise detection thanks to its reed switches, accelerometer, and anti-masking systems. Integrated with Superior Jeweller and Wings technologies, it guarantees secure communications up to 3,500 meters, high resistance to tampering, and OTA firmware updates. Quick installation via QR code and SmartBracket and a long battery life of up to 5 years make it ideal for professional, reliable, and fully app-managed burglar alarm systems.

Main specifications:

- Opening detection with 2 reed switches, 1 accelerometer and 1 magnetometer

- Anti-shock, anti-tilt and anti-masking sensors with adjustable levels

- Secure communication up to 3,500 m with advanced encryption

- Anti-sabotage protection: anti-jamming, tamper, fixing screws

- Add to the system via QR code and mount with SmartBracket

- Battery life up to 5 years with pre-installed CR123A battery

Further details

✅ Jeweler Connection :
Superior Jeweler technology ensures ultra-stable radio communication up to 3,500 meters , with advanced encryption, device authentication, and regular polling for real-time status. This protocol ensures high resistance to interference and spoofing attempts, offering fast, secure transmissions and over-the-air firmware updates.
✅ Wings Connection :
 The Wings channel works in synergy with Jeweller to ensure redundant, faster, and more reliable communications. It leverages multiple frequencies to ensure stable packet transmission in alarm systems, improving data integrity even in saturated or complex environments.
✅ Detection:
The device uses two reed switches , one accelerometer , and one magnetometer to detect opening, vibrations, impacts, changes in tilt angle, and masking attempts. The parameters are adjustable, allowing you to adapt the sensitivity to different doors, windows, or environments, minimizing false alarms and increasing accuracy.
✅ Sabotage Resistance:
The system integrates advanced Grade 3 anti-masking , a tamper protection against removal or detachment, a SmartBracket security screw, and frequency hopping technology to defend against jamming and interference. It also detects loss of communication in less than 36 seconds, ensuring continuous protection against any tampering.

Technical data sheet

130591.347.BL1
Wireless communication Superior Jeweler communication technology
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
Up to 3,000 m
Up to 9,800 ft
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology for uploading firmware updates.
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Block encryption featuring a dynamic key.
  • Data packet reload if a transmission error occurs.
  • Data packets delivery check.
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
Radio communication range
Up to 2,000 m
Up to 6,500 ft
Between the hub and the devices added to it in open space. The maximum range depends on the added device
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Detection Sensitive elements
2 reed switches
1 accelerometer
1 magnetic masking sensor
Protection against reed switch chatter
The detector ignores vibrations lasting up to 0.15 s.
Input to connect an additional detector
Wired detector with the normally closed (NC) contact type and additional Roller shutter mode.
Shock sensor sensitivity
3 levels
Adjusted by a PRO or a user with admin rights in Ajax apps.
The detection radius depends on the material type:
  • Framed glass window — 1.2 m (high sensitivity level), 1 m (low sensitivity level).
  • Wooden plate — 1.2 m (high sensitivity level), 1 m (low sensitivity level).
  • Concrete plate — 0.75 m (high sensitivity level), 0.5 m (low sensitivity level).
  • Framed glass window — 3.9 ft (high sensitivity level), 3.2 ft (low sensitivity level).
  • Wooden plate — 3.9 ft (high sensitivity level), 3.2 ft (low sensitivity level).
  • Concrete plate — 2.4 ft (high sensitivity level), 1.6 ft (low sensitivity level).
The smoother and cleaner the detection surface is, the better the detection radius is.
Option to ignore single impact
Adjusted by a PRO or a user with admin rights in Ajax apps.
Tilt sensor activation threshold
from 5° to 25°
Adjusted by a PRO or a user with admin rights in Ajax apps.
Chime
When the system is disarmed, the siren emits a special sound to notify that the opening detectors are triggered.
Sabotage protection Tamper alarm
Notifications of attempts to detach the detector from the surface or remove it from the mounting panel.
Magnetic masking sensor
The device detects an attempt to mask the main magnet of Superior DoorProtect G3 Jeweler with a fraudulent magnet.
Holding screw
secures the device on SmartBracket
Protection against spoofing
device authentication
Connection loss detection
after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power supply Battery
1 × CR123A
Pre-installed.
Type
type C
Calculated battery life
up to 5 years
Operating voltage range
2.3−3.2 V⎓
Nominal operating voltage
3 V⎓
Quiescent current consumption at nominal voltage
33 μA
Maximum current consumption at nominal voltage
7 mA
Peak current consumption at nominal voltage
27 mA
Full battery capacity
1,550 mAh
Low battery voltage
2.5 V⎓
Low battery recovery voltage
2.7 V⎓
End-of-life battery voltage
2.3 V⎓
The device switches off.
End-of-life battery capacity
150 mAh
Manufacturer
Panasonic
Enclosure Dimensions dimensions
103 × 22 × 21 mm
4.06″ × 0.87″ × 0.83″
Magnet dimensions
103 × 22 × 21 mm
4.06″ × 0.87″ × 0.83″
Weight of the detector
39 g
1.38 oz
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP30, IK04
Color Black
Complete set Superior DoorProtect G3 Jeweller
SmartBracket mounting panel
CR123A battery (pre-installed)
Magnet
Connector for a third-party detector
Installation kit
Quick start guide
Warranty 24 months
