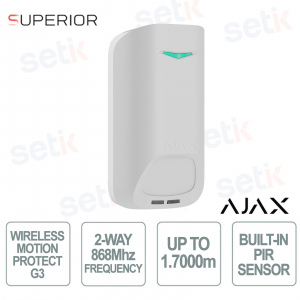

Ajax Superior MotionProtect G3 Jeweler White – Professional PIR Sensor with Anti-Masking

Ajax Superior MotionProtect G3 Jeweler White – Professional PIR Sensor with Anti-Masking

 
NEW New

135979.09.WH1 # 135979 - Ajax Superior MotionProtect G3 Jeweller White is a professional wireless PIR sensor designed to offer highly reliable motion detection up to 15 meters, thanks to a proprietary optical system with a multifaceted mirror that guarantees accuracy even on slow or creeping movements. The SmartDetect algorithm reduces false alarms by filtering out light sources and heat flows, while Jeweller & Wings radio technology ensures stable communications up to 3,000 m with advanced encryption and OTA updates. The anti-masking system and three integrated tamper switches protect against sabotage attempts, supported by immediate notifications and constant device supervision. Installation is quick via QR code, with included batteries that guarantee up to 7 years of battery life, making it ideal for environments that require maximum security and operational continuity. Ajax

Technical Data Sheet

Reference: 135979.09.WH1

Brand: Ajax Systems

EAN: 4823114076671

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

135979.09.WH1 | WIRELESS PIR MOTION DETECTOR WITH ANTI-MASKING SYSTEM

Ajax

The Superios MotionProtect G3 Jeweler, 135979.09.WH1, White is a professional wireless PIR sensor designed to ensure precise motion detection up to 15 meters, thanks to an advanced optical system with a multifaceted mirror that ensures maximum accuracy even on slow or creeping movements. The SmartDetect algorithm reduces false alarms by filtering out bright lights and heat flows, while Jeweler and Wings radio technologies offer stable communications up to 3,000 meters with advanced encryption and over-the-air firmware updates. Equipped with an anti-masking system, three anti-sabotage tamper switches and constant supervision, it guarantees continuous protection and immediate notifications in the event of anomalies. Installation is simple via QR code, with pre-installed batteries that ensure up to 7 years of battery life.

Main specifications:

- PIR detection up to 15m with 90° horizontal and 71° vertical angle

- SmartDetect algorithm with 3 sensitivity levels to reduce false alarms

- Anti-masking system with 3 dedicated sensitivity levels

- Jeweller & Wings radio technologies up to 3,000 m and advanced encryption

- Continuous supervision: self-diagnosis, low battery and malfunction notifications

- Three anti-sabotage tamper switches and protection against jamming and spoofing

- Battery life up to 7 years with 4 pre-installed CR123A batteries

- Quick installation with SmartBracket and management via mobile/desktop app

Further details

✅ Jeweler Connection :
Jeweller's advanced radio technology offers secure communication up to 3,000 meters , with full encryption, regular polling to monitor device status, and protection against interference, ensuring stable transmissions even in large installations.
✅ Detection:
The detection system covers up to 15 meters , with an angle of 90° horizontal and 71° vertical, thanks to a proprietary optical system that intercepts rapid, slow or creeping movements, ensuring continuous and high-precision protection.
✅ PIR Sensor:
Equipped with a highly sensitive PIR sensor and a multifaceted mirror, the device optimizes infrared detection and minimizes false alarms, aided by the SmartDetect software that filters out bright lights and thermal variations.
✅ Sabotage Resistance:
The Superior MotionProtect G3 integrates three anti-tamper switches , anti-masking detection with 3 sensitivity levels, frequency hopping to prevent jamming, and device authentication to prevent spoofing. Any attempt to open, cover, or interfere with the device generates immediate notifications to ensure complete security.

Technical data sheet

135979.09.WH1
Wireless communication Superior Jeweler communication technology
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
Up to 3,000 m
Up to 9,800 ft
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Detection Sensitive elements
1 PIR sensor
Motion detection distance
up to 15 m
up to 49 ft
When installed at a height of 2.4 m.
When installed at a height of 7.9 ft.
Reduced blind zone
up to 0.5 m
up to 1.6 ft
Detects a crawling person at a distance of 50 cm from the detector.
Detects a crawling person at a distance of 1.6 ft from the detector.
Motion detection angles
horizontal: 90°
vertical: 71°
Motion detection speed
from 0.1 to 4.0 m/s
from 0.3 to 13.1 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
False alarm prevention
SmartDetect
Software algorithm.
Temperature compensation
Effective motion detection at temperatures from −10 °C to +40 °C.
Effective motion detection at temperatures from 14 °F to 104 °F.
Self-test of sensitive elements
The device checks its sensors' state and notifies if any malfunction is detected.
Recommendations It is recommended to install the detector at a height of 2.4 m.
It is recommended to install the detector at a height of 7.9 ft.
The pet immunity feature is not available for this device.
The device is designed for indoor use only.
Sabotage protection Tamper alarm
3 tampers
Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel
Protection against spoofing
device authentication
Anti-masking system
detects attempts to block the detector view
Lock for SmartBracket
To secure the detector on SmartBracket.
Communication loss detection
after 36 s
Detection time depends on the Jeweller/Fiber settings.
Power supply Battery
4 × CR123A 3V⎓ lithium battery
Pre-installed.
Type
type C
Calculated battery life
up to 7 years
Operating voltage range
3.5−6.0 V⎓
Nominal operating voltage
3 V⎓
Quiescent current consumption at nominal voltage
50 μA
Maximum current consumption at nominal voltage
95 mA
Full battery capacity
3,100 mAh
Low battery voltage
4.5 V⎓
End-of-life battery voltage
3.5 V⎓
The device switches off.
End-of-life battery capacity
250 mAh
Manufacturer
Panasonic
Enclosure Dimensions dimensions
135 × 66 × 60 mm
5.31" × 2.60" × 2.36"
Weight of the detector
308 g
10.86 oz
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP30
Color White
Complete set Superior MotionProtect G3 Jeweller
SmartBracket mounting panel
4xCR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
