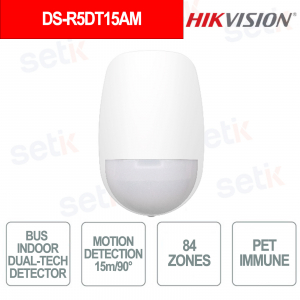

Hikvision 24GHz Dual-Tech PIR and Microwave Motion Sensor with 15m Coverage and Pet Immunity

Hikvision 24GHz Dual-Tech PIR and Microwave Motion Sensor with 15m Coverage and Pet Immunity

-35% New

DS-R5DT15AM - is a dual-tech indoor motion detector designed for professional security systems, integrating a PIR sensor and 24 GHz microwave technology for extremely precise detection up to 15 meters with 90° coverage. 3D optics with creep-zone protection allow detection even in the areas closest to the sensor, increasing the level of security. Thanks to animal immunity up to 30 kg and digital temperature compensation, it effectively reduces false alarms. Advanced technology ensures high resistance to interference and stable performance over time. It supports remote configuration via app and simple installation , making it ideal for residential and commercial environments. Hikvision

Technical Data Sheet

Reference: DS-R5DT15AM

Brand: Hikvision

EAN: 6942640550269

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-R5DT15AM – BUS INDOOR DUAL-TECH DETECTOR

Hikvision

The Hikvision DS-PD512DT15 is a dual-tech indoor motion detector designed to ensure high security and accuracy, thanks to combined PIR and 24 GHz microwave technology with coverage up to 15 meters and a 90° angle. 3D optics with creep-zone protection ensure detection even in the most sensitive areas near the sensor, while digital temperature compensation improves reliability. The device integrates animal immunity up to 30 kg to reduce false alarms and ensure operational continuity. It offers high resistance to interference and stable performance over time. It supports remote configuration via app and simple installation , making it ideal for residential and commercial environments.

Main features:

- Dual-tech PIR + 24 GHz microwave detection

- Range up to 15 meters with 90° coverage

- 3D optics with creep-zone protection

- Pet immunity up to 30 kg

- High resistance to interference

- Remote configuration and simplified installation


Further details

PIR Detector:
The detector uses dual-tech technology with PIR sensor and 24 GHz microwave , capable of ensuring precise detection up to 15 meters with 90° coverage , integrating digital processing and temperature compensation for an effective reduction of false alarms.
Pet immune:
Thanks to the pet immunity function up to 30 kg , the device accurately distinguishes between human presence and animal movements, ensuring reliable protection without unwanted activations even in inhabited environments.
Bus interconnection :
The system is based on RS-485 half-duplex technology , which enables stable and secure communication over a wired bus , ensuring efficient integration into professional security systems and reliable data transmission.
Power supply :
Powered directly via a bus with a nominal voltage of 12V DC (9–24V) and low consumption, the device ensures operational continuity and simplified installation , reducing the need for maintenance over time.

Technical data sheet

DS-R5DT15AM
PIR detection
Detection method Passive Infrared, Microwave
Detection range 15 m
Detection angle 90°
Detection zones 84
Detection planes 7
Detectable speed 0.3 m/s ~ 2 m/s
Sensitivity Low, Normal, High
Microwave frequency 24GHz(24.15~24.25GHz)
Pet immunity 30kg
White light filter 6500 lux
Sealed optics Support
Digital processing Support
Temperature compensation Support

Bus interconnection

Bus extender No
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Input voltage 12 VDC nominal (9~24 VDC), powered by bus
Quiescent current 9 mA @12VDC
Max. current 13 mA @12VDC
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 65.7mm × 103.8mm × 45.5mm
Weight 100 g
Tamper-proof Front
Installation method Wall mount & Celling mount (with bracket)
Bracket DS-PDB-IN-Ceilingbracket (Optional) DS-PDB-IN-Wallbracket (Optional) DS-PDB-IN-UBKT2(Optional)
Mounting height 1.8 m ~ 2.4 m, 2.1 m typical
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
