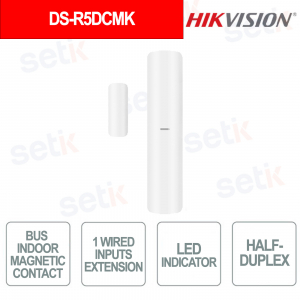

Magnetic Contact with Shock and Tilt RS-485 Bus for Doors and Windows Security Systems - Hikvision

Magnetic Contact with Shock and Tilt RS-485 Bus for Doors and Windows Security Systems - Hikvision

-35% New

DS-R5DCMK is a professional indoor magnetic contact designed for door and window protection. It integrates combined magnetic, shock, and tilt detection for complete security against intrusion and tampering. Thanks to its multi-level adjustable sensitivity , it accurately detects vibrations and suspicious movements, adapting to different materials and installation contexts. The device supports additional wired input to expand the system's functionality. Half-duplex RS-485 bus communication ensures stable and reliable transmission. Featuring remote configuration via app and simple installation , it is an ideal solution for professional and residential security systems. Hikvision

Technical Data Sheet

Reference: DS-R5DCMK

Brand: Hikvision

EAN: 6942640549096

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-R5DCMK – INDOOR MAGNETIC CONTACT BUS

Hikvision

Hikvision DS-PD540MCK is a professional indoor magnetic contact designed for advanced door and window protection, integrating combined magnetic, shock, and tilt detection to detect openings, vibrations, and tampering attempts. Thanks to its multi-level adjustable sensitivity , it guarantees precise detection on different materials such as wood, glass, and concrete. The device supports an additional wired input to expand the security system. Half-duplex RS-485 bus communication ensures stable and reliable transmission. Featuring remote configuration via app and simple installation , it is ideal for residential and professional environments.

Main features:

- Magnetic sensing with integrated shock and tilt

- Multi-level adjustable sensitivity for greater precision

- Additional wired input for system expansion

- Stable communication on half-duplex RS-485 bus

- Remote configuration via app

- Easy installation and professional design


Further details

Detection:
The device integrates a combined magnetic, shock and inclination detection , capable of identifying door/window openings, vibrations and tampering attempts thanks to adjustable sensitivity up to 8 levels for shock and inclination from 5° to 25° , guaranteeing maximum precision on different materials.
Input:
It has 1 additional wired input (expandable zone) that allows you to connect additional sensors or devices, offering greater flexibility and integration into the security system.
Interface:
It features a built-in LED status indicator , useful for immediate operation monitoring and for easy installation, diagnostics and maintenance.
Bus interconnection :
It uses half-duplex RS-485 technology on a wired bus , ensuring stable, reliable and secure communication between devices and perfect integration into professional systems.
Power supply :
Powered by a bus with a nominal voltage of 12V DC (9–16V) and low consumption ( 10 mA standby, 30 mA max ), it ensures energy efficiency and operational continuity in any condition.

Technical data sheet

DS-R5DCMK
Detection
Detection method Door/Window Magnetic Shock and tilt
Sensitivity Shock detection: 8 levels Tilt detection: from 5° to 25°
Shock range Wood: 1 m(Sensitivity level ≥ 4); Glass: 1 m(Sensitivity level≥ 3 ); Concrete: 1 m(Sensitivity level ≥ 5);
Inputs (zones)
Max. Zones 1
On-board zones 1
User Interface
Indication 1 status LED indicators

Bus interconnection

Bus extender No
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Input voltage 12 VDC nominal (9~16 VDC), powered by bus
Quiescent current 10 mA @12VDC
Max. current 30 mA @12VDC
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 104 × 24 × 24.6 mm
Weight Rough: 72.8 g Net: 30 g
Tamper-proof Front and rear
Installation method Wall mount
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
