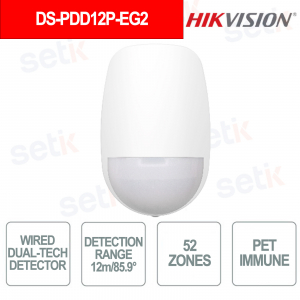

Hikvision 24GHz 12m Dual-Tech Microwave PIR Motion Sensor with Pet Immunity and Anti-False Alarm

Hikvision 24GHz 12m Dual-Tech Microwave PIR Motion Sensor with Pet Immunity and Anti-False Alarm

-35% New

DS-PDD12P-EG2 is a wired dual-tech detector designed to ensure high reliability in security systems, combining PIR sensor and 24 GHz K-Band microwave for precise detection up to 12 meters with 85.9° coverage. 3D optics with 52 zones and creep-zone protection ensure complete coverage without blind spots, while IFT technology effectively reduces false alarms. The device integrates animal immunity up to 30 kg and digital temperature compensation for stable performance. Thanks to sealed insect-proof optics and automatic sensitivity , it guarantees reliability over time. It supports 9–16V DC power supply and quick installation , making it ideal for residential and professional environments. Hikvision

Technical Data Sheet

Reference: DS-PDD12P-EG2

Brand: Hikvision

EAN: 6954273603243

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-PDD12P-EG2 – WIRED DUAL-TECH DETECTOR

Hikvision

Hikvision DS-PDD12P-EG2 is a wired dual-tech detector designed for advanced security systems, combining PIR sensor and 24 GHz K-Band microwave for precise detection up to 12 meters with 85.9° coverage. 3D optics with 52 zones and creep-zone protection ensure total coverage without blind spots, while IFT technology reduces false alarms. The device integrates animal immunity up to 30 kg and digital temperature compensation for reliable performance. Thanks to sealed anti-insect optics and automatic sensitivity , it ensures continuous operation over time. It supports 9–16V DC power supply and simple installation , ideal for residential and professional environments.

Main features:

- Dual-tech PIR + microwave detection 24 GHz K-Band

- Range up to 12 m with 85.9° coverage

- 3D optics with 52 zones and creep-zone protection

- Pet immunity up to 30 kg

- IFT anti-false alarm technology

- Sealed insect-proof optics and automatic sensitivity


Further details

Detection Performance:
The detector uses dual-tech technology with PIR sensor and 24 GHz microwave , offering coverage up to 12 meters with an 85.9° angle and 52 3D detection zones , integrating digital temperature compensation and white light filter to ensure maximum precision and reduction of false alarms.
Features:
Featuring sealed insect-proof optics, IFT technology and creep-zone protection , the device ensures complete protection with no blind spots , with automatic sensitivity and animal immunity up to 30 kg for reliable operation in any context.
Interface:
It integrates a normally closed (NC) alarm output and multi-color LED indicators (PIR, microwave and alarm) that allow immediate monitoring of the operating status and facilitate installation and diagnostics.
Transmission :
The system uses stable and secure wired transmission , ideal for professional applications where continuous reliability and interference-free communication are required.
Power supply :
Powered by 9–16V DC voltage (typical 12V) and low consumption ( 17 mA max ), it guarantees energy efficiency, protection against polarity reversal and operational continuity over time.

Technical data sheet

DS-PDD12P-EG2
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 65.7 mm (2.59") × 103.8 mm (4.09") × 45.5 mm (1. 79")
Weight 99g (3.5 oz)
Mounting Height 1.8 m to 2.4 m
Mounting Method Wall
Application Scenario Indoor
Bracket Optional wall & ceiling accessory
Detection Performance
Detection Method Passive Infrared; Microwave
Detection Range 12 m
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3~2m/s
Sensitivity Car; Pet
Pet Immunity 30kg
White Light Filter 6500lux
Microwave Frequency 24GHz(24.15~24.25GHz)
Digital Temperature Compensation Support
Creep Zone Protection Support
Features
Digital Processing Support
Sealed Optics Support
Tamper Protection Front

Interfaces

Alarm Output Normally Closed
LED Indicator Green(PIR), Orange(Microwave), Blue(Alarm)
Transmission
Transmission Method Wired
Electrical Characteristics
Power Supply 9 to 16 VDC
Typical Voltage 12 VDC
Power Consumption Maximum current:17mA@12VDC Quiescent current:17mA@12VDC
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
