ARD1233-W2-868-B The black wireless PIR detector is an advanced solution for indoor security, designed to detect human movements with high precision thanks to the dual-element PIR sensor and a coverage of up to 12 m at a 90° angle . It integrates immunity to animals up to 18 kg and automatic temperature compensation , ensuring reliability even in variable environments. Communication is stable and secure via two-way technology with AES128 encryption and frequency hopping , with a range of up to 1600 m in open fields . It has adjustable sensitivity on 3 levels , signal strength detection and low battery alarm , with battery life of up to 4 years . It also supports cloud updates and temperature measurement, making it ideal for alarm systems in homes and commercial businesses. Dahua
ARD1233-W2-868-B | WIRELESS PIR DETECTOR - 12M RANGE - PET IMMUNE

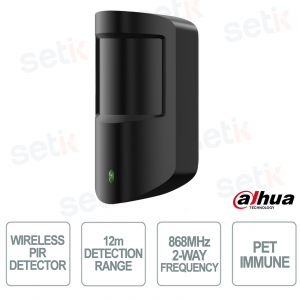

The black Dahua ARD1233-W2-868-B motion detector is a wireless PIR sensor designed to ensure advanced security in indoor environments, offering precise detection thanks to the dual-element PIR sensor and a coverage of up to 12 meters at a 90° angle . It integrates animal immunity up to 18 kg and automatic temperature compensation , ensuring reliable performance even in variable environmental conditions. Stable communication is guaranteed by two-way technology with AES128 encryption and frequency hopping with a range of up to 1600 m in open fields . It also features 3-level adjustable sensitivity , signal strength detection and up to 4 years of battery life. Ideal for homes and businesses, it also supports cloud updates and temperature monitoring.
Main specifications:
- Dual-element PIR sensor for precise motion detection
- Range up to 12 m (90°) for effective coverage of rooms
- Animal immunity up to 18 kg to reduce false alarms
- 868MHz wireless communication with AES128 and two-way for security and stability
- Radio range up to 1600 m in open field
- Sensitivity adjustable on 3 levels to adapt to your needs
- Battery life up to 4 years with low battery alarm
- Automatic temperature compensation for consistent performance
- Cloud updates and temperature measurement for advanced management
Further details
It uses an 868 MHz connection with two-way technology , AES128 encryption and frequency hopping , offering high stability and security with a range of up to 1600 m in open field.
Technical data sheet
| ARD1233-W2-868-B | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
1 × green alarm indicator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button |
1 × power button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Upgrade |
Cloud update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Search |
Signal strength detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Test Mode |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Battery Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Carrier Frequency |
868.0 MHz–868.6 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Distance |
Up to 1,600 m (5,249.34 ft) in an open space |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mechanism |
Two-way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encryption Mode |
AES128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
CR123A battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max. 120 mW |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH). |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Package Dimensions |
135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation Mode |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
100 g (0.22 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
170 g (0.37 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
THERE IS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Life |
4 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Range |
–15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Precision |
± 1 °C (± 33.8 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1 °C (33.8 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Detection Mode |
PIR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensor |
Dual-element low-noise PIR sensor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Detection Range |
12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Detection Speed |
0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pet Immunity Level |
≤ 18 kg (39.68 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Light Resistance Level |
2000 lx |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Two-way Digital Temperature Compensation |
Yes, no attenuation of detection distance in high temperatures |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensitivity |
3 levels adjustable |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
