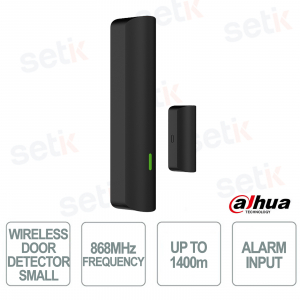

ARD333-W2(868S)-B Wireless Door Sensor 868MHz AES128 1400m with Temperature Monitoring - Dahua

ARD333-W2(868S)-B Wireless Door Sensor 868MHz AES128 1400m with Temperature Monitoring - Dahua

 
BEST PRICE -56%

ARD333-W2(868S)-B The black wireless door sensor is an advanced solution for door and window security, designed to ensure precise and reliable detection in real time. Thanks to two-way communication and frequency hopping technology, it offers a stable connection up to 1,400 meters in open field , with high protection through AES128 encryption . It integrates advanced features such as temperature monitoring , tampering alarm and low battery detection , ensuring continuous control of the system. The device supports automatic cloud updates and guarantees a long battery life of up to 4.6 years , making it ideal for professional installations and smart security systems. Dahua

Technical data sheet

Reference: ARD333-W2(868S)-B

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


ARD333-W2(868S)-B | WIRELESS DOOR SENSOR - 1400m OPEN RANGE - BATTERY - ALARM INPUT

Dahua

The black Dahua ARD333-W2(868S)-B wireless door sensor is designed to provide advanced security and precise monitoring of doors and windows, ideal for residential and commercial environments. Thanks to two-way communication and frequency hopping technology, it offers stable connections up to 1,400 meters in open field , with protection via AES128 encryption . It integrates intelligent functions such as temperature monitoring , tampering alarm and low battery detection , ensuring continuous and reliable control. The system supports automatic cloud updates and guarantees a high battery life of up to 4.6 years , making it ideal for smart and professional security systems.

Main specifications:

- Two-way communication with frequency hopping technology

- Range up to 1,400 m for extended wireless coverage

- Integrated temperature monitoring for environmental control

- AES128 encryption for advanced data security

- Tamper and low battery alarm for increased reliability

- Up to 4.6 years of battery life with a high-performance CR123A battery

Further details

✅ Alarm:
The device integrates advanced security systems with tamper alarm and door opening detection via Reed Switch sensor , generating immediate notifications in the event of intrusion or anomaly, ensuring constant and reliable access monitoring .
✅ Functions:
It offers intelligent features such as temperature monitoring , low battery detection , LED status indicator and automatic cloud updates , ensuring remote management, business continuity and complete control of your security system.
✅ Wireless Communication :
It uses 868 MHz technology with two-way communication and frequency hopping , ensuring stable and secure transmission up to 1,400 meters in open field , with advanced data protection thanks to AES128 encryption.
✅ Technical :
Designed with reliable components such as Reed switch sensor , it supports EMI/RFI anti-interference , low power consumption and power supply via CR123A battery with up to 4.6 years of autonomy, operating in a temperature range from -10°C to +55°C for professional installations.

Technical data sheet

ARD333-W2(868S)-B
Port
Alarm Input 1-channel external digital input
Function
Indicator Light 1 × green alarm indicator
Button 1 × power switch
Remote Update Cloud update
Low Battery Detection Yes
Tamper Yes
Measuring Range (Temperature) –15 °C to +65 °C (+5 °F to +149 °F) (indoor)
Technical
Sensor Reed switch
Movement Distance < 40 mm (1.57")
Anti-EMI/RFI Interference Yes
Test Mode Yes
Scenario Non-metal doors
Wireless
Carrier Frequency 868.0 MHz–868.6 MHz
Transmitter Power (EIRP) Limit 25 mW
Communication Mechanism Two-way
Communication Distance Up to 1,400 m (4,593.18 ft) in an open space
Encryption Mode AES128
Frequency Hopping Yes
General
Power Supply CR123A battery
Power Supply Type Type C
Battery Model CR123A
Battery Life A single CR123 battery can last for 4.6 years if alarms are triggered 2 times a day, with a battery efficiency of 80%.
Low Battery Threshold 2.2V
Battery Restore Threshold 2.6V
Power Consumption 0.258W (Max), 0.087mW (Standby)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity 10%–90% (RH)
Product Dimensions 101.0 mm × 21.0 mm × 22.2 mm (3.98" × 0.83" × 0.87") (L × W × H)
Net Weight 48.7 g (0.11 lb)
Gross Weight 88 g (0.19 lb)
Installation Wall mount
Protection PC + ABS
Certifications THERE IS
Packaging Dimensions 110.0 mm × 75.0 mm × 33.0 mm (3.61" × 2.46" × 1.08") (L × W × H)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
