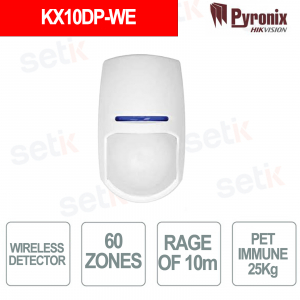

KX10DP-WE Wireless Dual Technology PIR and Microwave Motion Detector 10m Pet Immunity 25kg - Pyronix

KX10DP-WE Wireless Dual Technology PIR and Microwave Motion Detector 10m Pet Immunity 25kg - Pyronix

 
IN PROMOTION -55% New

KX10DP-WE - is a wireless volumetric motion detector with dual PIR and microwave technology , designed for indoor intruder alarm systems. It offers a detection range of up to 10 meters , with 85° volumetric coverage and Pet Immunity technology up to 25 kg , ideal for homes and offices with pets. It integrates Blue Wave Technology (BWT), automatic temperature compensation and adaptive sensitivity to reduce false alarms. Two-way wireless communication with 128-bit encryption , front and rear tamper protection and the One-Push-To-Learn function guarantee safety and ease of installation. Powered by a 3V CR123A lithium battery , with a minimum battery life of 2 years , it is EN50131 Grade 2 certified. Pyronix

Technical Data Sheet

Reference: KX10DP-WE

Brand: Pyronix

Manufacturer Object ( [id] => 32 [name] => Pyronix [description] =>

Pyronix boasts a wide range of wired, hybrid and wireless intrusion detection products, relying on the latest technologies developed and created by its in-house teams. Winners of major awards for the new technologies they have discovered and implemented, Pyronix is still a guarantee in the field of security

[short_description] =>

Pyronix 42.jpg

Pyronix, a leading specialist in the field of intruder alarms, joined Hikvision, the world's number one company for surveillance solutions, in May 2016

[id_address] => [date_add] => 2019-01-24 17:10:41 [date_upd] => 2022-03-23 16:20:19 [link_rewrite] => pyronix [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

KX10DP-WE | WIRELESS VOLUMETRIC DETECTOR - DUAL PIR TECHNOLOGY

Hikvision

The Pyronix KX10DP-WE is a wireless volumetric motion detector with dual PIR and microwave technology , ideal for intruder alarm systems in homes, offices and indoor environments. It guarantees a detection range of up to 10 metres with 85° coverage and Pet Immunity technology up to 25 kg , to reduce alarms caused by pets. It integrates Blue Wave Technology (BWT), 3D optics , automatic sensitivity and digital temperature compensation for precise and reliable detection. Two-way wireless transmission with 128-bit encryption , front and rear tamper protection and the One-Push-To-Learn function ensure safety and ease of installation. Powered by a 3V CR123A lithium battery , it offers a minimum battery life of 2 years and is EN50131 Grade 2 certified.

Main specifications:

  • Type: Wireless volumetric detector
  • Technology: Dual technology PIR and microwave
  • Detection: Up to 10m, 85° angle
  • Pet Immunity: Up to 25 kg
  • Anti-false alarms: Blue Wave Technology and 3D optics
  • Transmission: Two-way wireless, 128-bit encryption
  • Protection: Front and rear tamper
  • Power supply: CR123A 3V battery, minimum 2 years battery life
  • Certification: EN50131 Grade 2

Further details

✅ Type :
The Pyronix KX10DP-WE is a wireless indoor volumetric motion detector , designed for intruder alarm systems, ideal for the protection of homes, offices, living rooms and commercial environments, with simple installation and no wiring.
✅ Technology :
It integrates dual PIR and microwave (DT) detection technology , which can detect movements by monitoring changes in infrared energy, improving the reliability of the security system.
✅ Detection:
It guarantees a maximum range of 10 metres with 85° volumetric coverage , distributed across 60 zones and 7 detection planes , ensuring effective control of internal environments with a recommended installation height between 1.8 and 2.4 metres.
✅ Pet Immunity :
It features intelligent Pet Immune (PI) technology up to 25 kg , designed to distinguish the movements of pets from those of potential intruders, reducing unwanted alarms thanks to dedicated coverage of 56 zones across 6 floors.
✅ Anti-false alarms:
Blue Wave Technology (BWT) , combined with 3D optics, automatic digital temperature compensation, adaptive sensitivity and Independent Floating Thresholds (IFT) technology, reduces environmental interference and improves detection accuracy.
✅ Transmission:
It uses Enforcer two-way wireless communication with 128-bit encryption and advanced jamming detection , ensuring secure signal exchange with the control panel, while One-Push-To-Learn and Signal Strength Indicators (SSI) features make setup and positioning easy.
✅ Protection :
It integrates a front and rear tamper anti-tamper system, which activates the alarm in the event of sabotage attempts, as well as sealed optics against insects and environmental interference, with EN50131 Grade 2 and environmental class II safety certification.
✅ Power supply:
It works via 1 CR123A 3V lithium battery included , with a minimum declared autonomy of 2 years , while the Instant Two-Way Device Control (ITDC) technology optimises consumption through the intelligent management of the device's activation and rest modes.

Technical data sheet

KX10DP-WE
Lens Characteristics
Dual Technology (DT) ✓
PIR x
Volumetric lens 85 degree coverage, 60 zones and 7 planes ✓
Pet immunity coverage, 6 planes and 56 zones ✓
Curtain lens, 20 degree coverage, 46 zones, 6 planes x
Long range lens, 20 degree coverage, 24 zones, 6 planes x
Maximum range 10m
Optimum installation height 1.8-2.4m
Microwave Frequency 24GHz(24.15～24.25GHz)
Creep-zone protection x
Technical Characteristics
Animal Immunity 25kg
Blue Wave Technology ✓
Automatic sensitivity ✓
Automatic temperature compensation ✓
Front and rear tamper protection included ✓
Separate LED indication: Microwave, PIR and Alarm ✓
Signal Strength Indicators (SSI) ✓
3V lithium battery included 1x CR123A
Minimum battery life (years) 2
Certification & Warrenty
Electrical compliance THERE IS
EN50131 Grade 2
Environmental class II
Warranty 2 years
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
