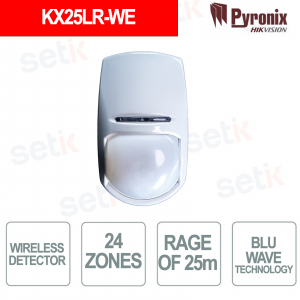

KX25LR-WE Wireless PIR Motion Detector Long Range 25m Blue Wave Intrusion Detector - Pyronix

KX25LR-WE Wireless PIR Motion Detector Long Range 25m Blue Wave Intrusion Detector - Pyronix

 
IN PROMOTION -55% New

The KX25LR-WE is a long-range wireless PIR volumetric motion detector , designed for intrusion alarm systems in corridors, entrances and large indoor environments . It integrates a dual-element passive infrared (PIR) sensor with a detection range of up to 25 metres and 20° coverage across 24 zones and 6 floors . Blue Wave Technology (BWT), 3D optics , automatic sensitivity and digital temperature compensation reduce false alarms. It features Enforcer two-way wireless transmission with 128-bit encryption, front and rear tamper protection and One-Push-To-Learn function for quick installation. Powered by a 3V CR123A lithium battery , it guarantees a minimum battery life of 2 years and is EN50131 Grade 2 certified. Pyronix

Technical Data Sheet

Reference: KX25LR-WE

Brand: Pyronix

Manufacturer Object ( [id] => 32 [name] => Pyronix [description] =>

Pyronix boasts a wide range of wired, hybrid and wireless intrusion detection products, relying on the latest technologies developed and created by its in-house teams. Winners of major awards for the new technologies they have discovered and implemented, Pyronix is still a guarantee in the field of security

[short_description] =>

Pyronix 42.jpg

Pyronix, a leading specialist in the field of intruder alarms, joined Hikvision, the world's number one company for surveillance solutions, in May 2016

[id_address] => [date_add] => 2019-01-24 17:10:41 [date_upd] => 2022-03-23 16:20:19 [link_rewrite] => pyronix [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

KX25LR-WE | Long-Range Wireless Volumetric PIR Detector

Hikvision

The Pyronix KX25LR-WE is a long-range wireless PIR volumetric motion detector , designed for intruder alarm systems in corridors, entrances and internal environments. It integrates a dual-element passive infrared (PIR) sensor with a maximum range of 25 metres and 20° coverage across 24 zones and 6 detection planes. Blue Wave Technology (BWT) , 3D optics and automatic temperature compensation ensure precise detection, reducing false alarms. It features Enforcer two-way wireless transmission with 128-bit encryption, front and rear tamper protection and One-Push-To-Learn function for quick installation. Powered by a 3V CR123A lithium battery , it offers a minimum battery life of 2 years and is EN50131 Grade 2 certified.

Main specifications:

  • Type: Wireless PIR volumetric detector
  • Technology: Dual element PIR sensor
  • Detection: Up to 25m, 20° angle
  • Coverage: 24 zones on 6 floors
  • Anti-false alarms: Blue Wave Technology and 3D optics
  • Transmission: Two-way wireless, 128-bit encryption
  • Protection: Front and rear tamper
  • Power supply: CR123A 3V battery, minimum 2 years battery life
  • Certification: EN50131 Grade 2

Further details

✅ Type :
The Pyronix KX25LR-WE is a long-range wireless PIR volumetric motion detector, designed for indoor intruder alarm systems, ideal for protecting long corridors, entrances, hallways and passageways , with simple, wiring-free installation.
✅ Technology :
It integrates a dual-element passive infrared (PIR) pyroelectric sensor, which constantly monitors changes in infrared energy in the environment to identify intruder movements and promptly transmit the alarm signal to the control panel.
✅ Detection:
It offers a maximum detection range of up to 25 metres, thanks to a long-distance PIR optic designed to monitor corridors and deep-seated spaces, with a recommended installation height of between 1.8 and 2.4 metres.
✅ Coverage:
It has a long-range lens with a 20° detection angle , distributed across 24 zones and 6 detection planes , ensuring targeted protection along access routes and integrating the protection of the area underneath the sensor (Creep Zone).
✅ Anti-false alarms:
Blue Wave Technology (BWT) , combined with 3D optics, automatic digital temperature compensation, adaptive sensitivity and Independent Floating Thresholds (IFT) technology, reduces environmental interference and improves detection accuracy.
✅ Transmission:
It uses Enforcer two-way wireless communication with 128-bit encryption and advanced jamming detection , ensuring secure signal exchange with the control panel, while One-Push-To-Learn and Signal Strength Indicators (SSI) features make setup and positioning easy.
✅ Protection :
It integrates a front and rear tamper anti-tamper system, which activates the alarm in the event of sabotage attempts, as well as sealed optics against insects and environmental interference, with EN50131 Grade 2 and environmental class II safety certification.
✅ Power supply:
It works via 1 CR123A 3V lithium battery included , with a minimum declared autonomy of 2 years , while the Instant Two-Way Device Control (ITDC) technology optimises consumption through the intelligent management of the device's activation and rest modes.

Technical data sheet

KX25LR-WE
Lens Characteristics
PIR ✓
Volumetric lens 85 degree coverage, 60 zones and 7 planes x
Pet immunity coverage, 6 planes and 56 zones x
Curtain lens, 20 degree coverage, 46 zones, 6 planes x
Long range lens, 20 degree coverage, 24 zones, 6 planes ✓
Maximum range 25m
Optimum installation height 1.8-2.4m
Creep-zone protection ✓
Technical Characteristics
Animal Immunity x
Blue Wave Technology ✓
Automatic sensitivity ✓
Automatic temperature compensation ✓
Front and rear tamper protection included ✓
Separate LED indication: Microwave, PIR and Alarm ✓
Signal Strength Indicators (SSI) ✓
3V lithium battery included 1x CR123A
Minimum battery life (years) 2
Certification & Warrenty
Electrical compliance THERE IS
EN50131 Grade 2
Environmental class II
Warranty 2 years
