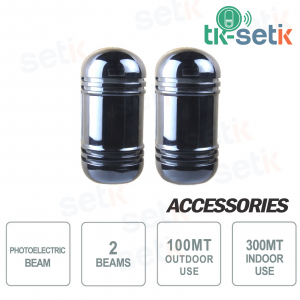

Double beam infrared barrier 100MT Setik RAY100

Double beam infrared barrier 100MT Setik RAY100
-50%

Setik active infrared double beam barrier (Transmitter+Receiver), usable both outdoors (max protection 100m) and indoors (max protection 300m). Alarm output, black tamper. RAY100 100% Compatible Setik TK-RY100

Reference: TK-RY100

Brand: Setik

EAN: 8058258767802

Manufacturer Object ( [id] => 7 [name] => Setik [description] =>

Always committed to the world of security, in addition to products from the best brands, we also offer our own production line, where convenience and quality come together to protect you. Imported products but with quality, warranty and updates managed directly by us. Take a look at our products: cameras, ip recorders, complete security kits, home alarm systems, spy products, cables, accessories and much more. Choose Setik for your security!

[short_description] =>

Setik was founded in 2012.
Initially 10 products in the catalogue, today almost 4,000.

[id_address] => [date_add] => 2012-03-20 12:17:52 [date_upd] => 2022-04-19 17:28:56 [link_rewrite] => setik [meta_title] => Made by Setik [meta_keywords] => setik, cctv, Made by Setik [meta_description] => Setik CCTV production [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DOUBLE BEAM INFRARED ACTIVE BARRIER 100MT - SETIK

Rilevatore fotelettrico doppio raggio a infrarosso attivo TK-RY100

DESCRIPTION:

DESCRIPTION:

Setik offers its line of alarm products able to guarantee high protection wherever you want to install them.

The TK-RY100 detector is one of the best active infrared dual beam intrusion detectors on the market.

Consisting of a transmitter and a receiver, it can be installed both outdoors (max range 100m) and indoors (max range 300m). CE&ROHS certified

Product details

  • Active infrared double beam barrier - Setik
  • Transmitter + Receiver
  • It can be installed both outdoors (max protection 100mt) and indoors (max protection 300mt)
  • Alarm output
  • Tamper
  • Infrared 2 beams
  • CE&ROHS certified
  • Black colour
  • Material Polycarbonate (PC)

Rilevatore fotelettrico doppio fascio a infrarosso attivo - Setik

Data sheet

model TK-RY100
System
Recommended Protection Distance

Outdoors: 100m

Indoors: 300m

Max arrival distance

1100mt

Infrared Beam 2 beams
Detection System Simultaneous Cut-off of 2 beams
Light Source Pulsed infrared
Response Time 50 - 700ms, Adjustable
Alarm output Relay On/Off output, Rating: AC / DC 30V 500mA max
Power Supply 13.8 - 24VDC or 11-18VAC
Current Consumption

TX/RX: 65mA

Working Temperature -25°C - 55°C
Output tamper NC Contact, Rating: 24Vdc/500mA max.
Optical axis adjustable angle (horizontal) 180° (+-90°)
Optical axis adjustable angle (vertical) 20° (+-10°)
Messure for Moisture/Frost /Dew Heating cover (optional)
Material Polycarbonate (PC)
Weight 1.0Kg
Remarks Black colour

Further details

DISCOVER THE FULL RANGE OF TK SETIK SENSORS

Model Guy Characteristics Coverage
TK-501 Internal Volumetric Wired Sensor PIR, Pet Immune 12MT
TK-504 Internal Volumetric Wired Sensor PIR+MW, Pet Immune 12MT
TK-504A Internal Volumetric Wired Sensor PIR+MW, Pet Immune, Anti-Masking 12MT
TK-405M Visible magnetic contact Metal
TK-415-TF Recessed magnetic contact ABS
TK-314N Recessed magnetic contact 6mm ABS
TK-450N Visible magnetic contact for up-and-over doors Zinc alloy
TK-314CSA Recessed magnetic contact Copper
TK-403AP Visible magnetic contact Zinc alloy
TK-RY60 Barrier Transmitter and Receiver Max range 60M, for indoors and outdoors
TK-RY100 Barrier Transmitter and Receiver Max range 100M, for indoors and outdoors
Schema dimensioni barriera TK-RY60

Downloads

Datasheet (coming soon)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form

⯈ Complete your purchase

Questions (1)

From Riccardo Giustetto | 2020-10-20 17:56:51

Posso sapere le dimensioni? Grazie.

administrator

Buongiorno, le dimensioni (con relativo esploso) sono chiaramente riportate nell'annuncio (nella sezione ULTERIORI DETTAGLI).
