38194.09.BL1 | WIRELESS IR MOTION DETECTOR


Ajax

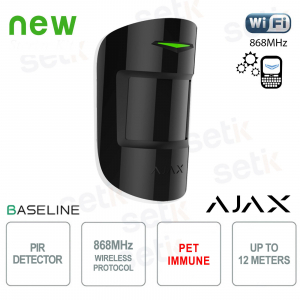

The Ajax MotionProtect Jeweller, 38194.09.BL1, black is a wireless indoor PIR detector designed to ensure highly accurate motion detection up to 12 meters , with a coverage angle of 88.5° , as illustrated in the technical graphic on page 1. Thanks to the combination of advanced optics and proprietary software, the sensor distinguishes human movement from interference and pets up to 20 kg , drastically reducing false alarms. The SmartDetect algorithm analyzes IR intensity, size of thermal areas and speed of movement, while the sensor design and the SmartBracket panel ensure quick and risk-free installation for the electronics. The device communicates via Jeweller technology, ensuring reliability and immediate response in any indoor environment.

Main specifications:

- Detection up to 12 m with an 88.5° angle

- Animal immunity up to 20 kg / 50 cm

- Dedicated optics that filter out interference and non-human IR sources

- SmartDetect algorithm for advanced false alarm prevention

- Easy installation with SmartBracket and pre-installed battery

- Management and configuration via app with Jeweller communication

Further details

Jeweler Communication :
Jeweller technology ensures stable and encrypted radio communication between the sensor and the hub, ensuring immediate response to events and constant monitoring of the device's status. The system uses a proprietary long-range protocol, optimized for low power consumption and to maintain connection even in the presence of obstacles, ensuring operational continuity in any indoor environment.
Detection :
The MotionProtect uses a high-precision PIR sensor that detects motion up to 12 meters away with a wide 88.5° angle, as shown in the coverage map on page 1. The advanced optics and software filter out interference and recognize the difference between a person and pets up to 20 kg , while minimizing false alarms thanks to thermal analysis and the SmartDetect algorithm.
Anti-sabotage protection:
The device is designed to prevent tampering during use and installation. The housing and SmartBracket prevent access to the internal electronics, while the system alerts you to any attempts at removal or misalignment. This ensures the sensor remains operational at all times and protected from unauthorized intervention.
Power supply:
The sensor is powered by a pre-installed, long-lasting battery that ensures years of maintenance-free operation. Energy efficiency is optimized by the Jeweller protocol and electronic design, allowing the device to constantly communicate with the hub while maintaining minimal power consumption, ideal for home or professional installations.

Technical data sheet

38194.09.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,600 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming
Detection
Sensitive element IR sensor
Motion detection distance up to 12* m
up to 39 ft
When installed at the height of 2.4 m.
When installed at the height of 7.9 ft.
* — 10 m according to INCERT (with high sensitivity level)
Motion detection angles horizontal: 88.5°
Motion detection speed from 0.3 to 2 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity 3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity weight: up to 20 kg
weight: up to 44 lb
height: up to 50 cm
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Recommendations It is recommended to install the detector at height of 2.4 m.
It is recommended to install the detector at height of 7.9 ft.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
Holding screw to secure the detector on SmartBracket
Protection against spoofing device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power Supply
Battery 1 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 5 years
Detector's operating voltage range 2.1−3.3 V⎓
Device's nominal operating voltage 3 V⎓
Quiescent device's current consumption at nominal voltage 0.019 mA
Maximum device's current consumption at nominal voltage 2.75 mA
Full capacity 1,600 mAh
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.1 V⎓
Device is switched off.
End-of-life battery capacity 300 mAh
Manufacturer Panasonic
Enclosure
Color Black
Dimension 110 × 65 × 50 mm
4.33″ × 2.56″ × 1.97″
Weight 86 g
3.03 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP30
Complete set MotionProtect Jeweler
SmartBracket mounting panel with holding screw
CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
