Hikvision K-Band PIR + MW Motion Sensor 24GHz 12M Double Technology

Hikvision K-Band PIR + MW Motion Sensor 24GHz 12M Double Technology
IN PROMOTION -35%


HIKVISION | BAND-K

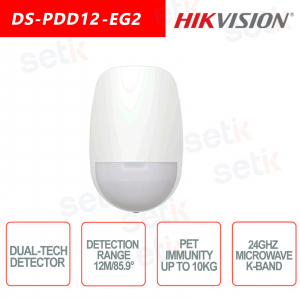

DS-PDD12-EG2 Hikvision Band-K 24GHz new sensor alarm dual technology indoor motion detector Dual Tech PIR + MW Microwave up to 12m of coverage. High immunity to false alarms, wide coverage, precise detection thanks to Blue Wave and IFT technology . Automatic temperature compensation, SEOL / DEOL balancing resistors. Pet immunity up to 10KG.

Reference: DS-PDD12-EG2

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-PDD12-EG2 | HIKVISION INDOOR K-BAND DOUBLE TECHNOLOGY SENSOR MICROWAVE 24GHZ

h


K-BAND | MAXIMIZED PROTECTION

The DS-PDD12-EG2 is one of Hikvision's new k-band sensors. This dual-tech dual technology PIR + MW indoor detector features a 24GHz K-Band microwave, coverage up to 12m and pet immunity up to 10KG. Equipped with automatic temperature compensation, Blue Wave technology and IFT that guarantee detection reliability and accuracy. Thanks to its clean and discreet design, it is ideal for both residential and commercial environments. Easy installation thanks to SEOL / DEOL resistors.



Incentivo fiscale

 Curious to learn more? Read the article on our blog!

DS-PDMCS-EG2
DUAL TECH DETECTOR (DS-PDD12-EG2):

- Optional / Automatic Sensitivity
- Up to 12m of detection range
- Digital temperature compensation
- 52 zones of 3d optics including creep-zone protection, full coverage without dead angle
- Selectable EOL resistors for alarm and tamper proof wiring
- Sealed optic that prevents insect interference
- 24G microwave
- Global certifications available (EN Grade2 / CE / FCC / CB / CCC / IC / RCM)
- Voltage matching from 9 to 16 v with reverse polarity protection
- Wall / ceiling mount bracket available (sold separately)
- IFT technology prevents false alarms

Documentation: Brochure

Data sheet

DS-PDD12-EG2
Detection Performance
Detection Range 12 m, 85.9 °
Detection Speed 0.3 to 2 m / s
Sensitivity High, auto, and low
Auto Sensitivity Yes
Onboard EOL Yes
Digital temperature Compensation Yes
Technology Digital microprocessor based
SEC technology Yes
Sealed Optics Yes
Creep zone Protection Yes
Direct light Filter 6500 lux
Tamper Protection Front
Led indicator Green (PIR), orange (microwave), blue (alarm)
Microwavefrequency 24 Ghz (24.15 Ghz to 24.25 Ghz)
AND / OR mod AND = PIR + MW OR = PIR / MW (shouldn't be used with pets)
Pet Immunity 10 kg (with optional pet mask)
Power Supply 9 to 16 VDC (standard: 12 VDC)
Current Consumption 17 mA quiescent; 15 mA alarm
Operating Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Storage Temperature -20 ° C to 60 ° C (-4 ° F to 140 ° F)
Operating Humidity 10% to 90%
Installation Height 1.8 m to 2.4 m
Dimension (H x W x D) 103.8 mm (4.09 ") × 65.7 mm (2.59") × 45.5 mm (1. 79 ")
Weight 99 g (3.5 oz)
Bracket Optional wall & ceiling accessory
