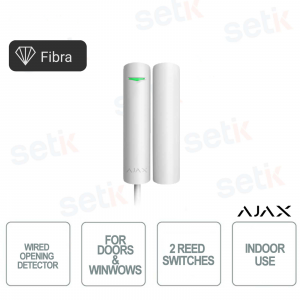

Ajax Superior DoorProtect Fibra White – Professional Wired Opening Sensor for Doors and Windows

Ajax Superior DoorProtect Fibra White – Professional Wired Opening Sensor for Doors and Windows


AJAX FIBER | 44393.03.WH1 # 44393 | Ajax Superior DoorProtect Fiber white is a professional wired sensor for detecting the opening of doors and windows, designed for advanced Ajax security systems. It ensures reliable control thanks to the two integrated reed switches , effective regardless of the positioning of the magnet. Communication on a dedicated line with bidirectional encrypted Fiber technology up to 2,000 meters ensures stability, data protection and constant monitoring of the device status. Equipped with high sabotage resistance with double tamper , it detects tampering attempts and line interruption. Quick installation and configuration via the Ajax app completes the profile, ideal for certified professional installations. Ajax

Technical Data Sheet

Reference: 44393.03.WH1

Brand: Ajax Systems

EAN: 4823114019982

Disponibilità: 105

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


FREE TVCC SIGN!×


With all >> AJAX KITS

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

44393.03.WH1 | WIRED OPENING DETECTOR WITH REED RELAY


Ajax

The Ajax Superior DoorProtect Fibra, 44393.03.WH1, white is a professional wired opening sensor designed for advanced door and window monitoring in Ajax security systems. Thanks to Fibra technology with encrypted two-way communication up to 2,000 meters , it guarantees signal stability, constant status monitoring and maximum data protection. Detection is extremely reliable thanks to two independent reed switches , effective even in case of variable magnet positioning. Designed for professional contexts, it integrates advanced solutions against tampering, false alarms and line interruptions, with quick setup via the Ajax app.

Main specifications:

- Reliable detection with double reed switch for doors and windows

- Wired fiber technology with data encryption and continuous polling

- Sabotage resistance with double anti-tampering

- Short circuit protection and connection loss detection

- Additional NC input for connecting third-party sensors

- Quick installation and configuration via Ajax app

Further details

Fiber Communication :
The Superior DoorProtect Fibra uses Ajax wired Fibre technology with encrypted two-way communication up to 2,000 metres , ensuring signal stability , device authentication and continuous real-time monitoring , ideal for professional and highly reliable security systems.
Detection :
The detection system is based on two independent reed switches that ensure precise control of the opening of doors and windows , working correctly regardless of the position of the magnet , reducing installation errors and false alarms .
Anti-sabotage protection:
Security is enhanced by advanced tamper protection thanks to two anti-sabotage tampers , connection loss detection and short circuit protection , ensuring high reliability even in high-risk contexts.
Power supply:
The power supply is via a wired fiber line , ensuring constant operational continuity , the absence of batteries and maximum reliability over time , making the device ideal for professional installations and permanent security systems.

Technical data sheet

44393.03.WH1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length up to 2,000 meters
up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Encrypted communication
Detection
Sensitive element 2 x reed switches
The magnet can be installed to the right or left side of the detector.
Opening sensors resource up to 2,000,000
For each reed switch.
Additional detector connection Wired detector with the normally closed (NC) contact type
Recommendations Do not install the detector using both magnets at the same time. The detector recognizes only one magnet on one side of the detector - left or right. The device is designed for indoor use only.
Sabotage protection
Tamper alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against forgery devices authentication
Power Supply
Fiber line power supply 5−30 V⎓, up to 23 mW
The detector is powered by the control panel.
Type 5−30 V⎓, up to 23 mW
The detector is powered by the control panel.
Device's nominal operating voltage 24 V⎓
Quiescent device's current consumption at nominal voltage 0.044 mA
Maximum device's current consumption at nominal voltage 1.42 mA
Enclosure
Color White
Dimension 90.5 × 21 × 18.5 mm
3.56″ × 0.83″ × 0.73″
Weight 54 g
1.90 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50, IK04
Complete set Superior DoorProtect Fiber
Big magnet
Small magnet
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
