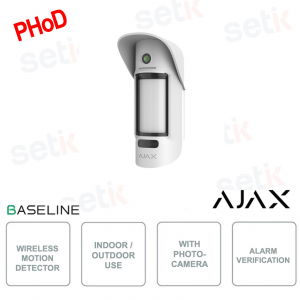

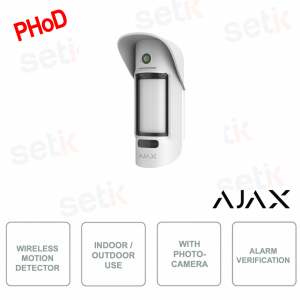

MotionCam Outdoor PhOD Jeweller: Outdoor PIR Sensor with HDR Photo Verification and Tamper Protection

MotionCam Outdoor PhOD Jeweller: Outdoor PIR Sensor with HDR Photo Verification and Tamper Protection

 

39293.121.WH1 # 39293 Ajax MotionCam Outdoor (PhOD) Jeweller is an advanced outdoor PIR detector with a built-in camera, designed to provide professional security thanks to adjustable detection range of 3–15 m, a 90° viewing angle , tamper protection , and HDR photo verification up to 640×352 px . Dual PIR technology with SmartDetect and LISA algorithms reduces false alarms, while IR illumination ensures clear images even in low light conditions. Jeweller and Wings radio communication ensures encrypted transmissions up to 1,700 m, preserving reliability and privacy. Weatherproof with IP55 certification, it operates from –25°C to +60°C and offers up to 3 years of battery life thanks to the pre-installed batteries. Ajax

Technical Data Sheet

Reference: 39293.121.WH1

Brand: Ajax Systems

EAN: 4823114017513

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

39293.121.WH1 | WIRELESS PIR MOTION DETECTOR WITH EXTENDED PHOTO VERIFICATION - FOR INDOOR AND OUTDOOR USE


Ajax

The Ajax MotionCam Outdoor (PhOD) Jeweller, 39293.121.WH1, is a professional outdoor PIR detector that combines advanced detection and instant photo verification, providing high-level security thanks to two PIR sensors , the SmartDetect algorithm , sabotage protection , and encrypted Jeweller & Wings radio communication up to 1,700 m. The built-in HDR camera provides clear images even in low light conditions, while the IP55 construction and battery life of up to 3 years ensure reliable performance in any environment.

Main specifications:

- Adjustable detection range 3–15 m with 90° horizontal angle and LISA and SmartDetect anti-false alarm algorithms

- HDR photo verification up to 640×352 px, with IR illumination and series of up to 5 images

- Anti-sabotage protection with anti-masking, active tamper and anti-spoofing authentication

- Jeweler & Wings radio communication with full encryption and range up to 1,700 m

- IP55 resistance and operation from –25°C to +60°C for outdoor installations

- Up to 3 years of battery life with pre-installed CR123A batteries and quick installation via QR code

Further details

✅ Jeweler Communication :
The Jeweller protocol ensures highly stable and encrypted two-way radio transmission between the sensor and the hub, with a range of up to 1,700 m , ensuring continuous synchronization, protection from interference and jamming attempts, as well as regular polling that monitors the device status in real time.
✅ Wings Communication :
Wings is the dedicated photo verification channel, designed to transfer images quickly and securely thanks to end-to-end encryption. It operates in parallel with Jeweller without creating interference, ensuring every photo is sent even under difficult radio conditions, maintaining reliability and continuity in the visual verification process.
✅ Detection :
The system uses two PIR sensors combined with advanced algorithms like SmartDetect and LISA to analyze thermal intensity, movement, and frequency, distinguishing real threats from environmental disturbances. The detection distance is adjustable between 3 and 15 meters , while the horizontal field of view is 90° , ensuring precise coverage and reduced false alarms, including animal immunity up to 80 cm.
✅ Photo verification :
The integrated HDR camera provides clear images even in low-light conditions thanks to IR illumination . It supports resolutions up to 640x352 pixels and sends series of 1 to 5 photos for quick and detailed evaluation, activated via alarm, scenarios, programming, arming/disarming, or manual request.
✅ Anti-sabotage protection:
The device integrates an anti-masking system that detects coverings, paintwork, or attempts to obscure the camera, along with a tamper sensor that sends instant notifications if the camera is removed from the holder. Device authentication prevents spoofing and tampering, while loss of communication is detected and reported immediately.
✅ Power supply:
Powered by 4 pre-installed CR123A batteries , it offers up to 3 years of battery life , optimizing consumption thanks to intelligent energy management and maintaining constant performance even in extreme conditions between –25°C and +60°C. The independent power supply eliminates wiring and simplifies professional installations in outdoor environments.

Technical data sheet

39293.121.WH1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming
Wings communication technology Proprietary wireless communication technology to transmit photo verifications.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Data package reloading in case of transmission errors.
  • Photo delivery check.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Radio signal range Up to 1,700 m
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming
Detection
Sensitive element 2 × PIR sensors
Motion detection distance up to 3–15 m
When installed at a height of 0.8–1.3 m. Adjusted with a scrollbar on the device enclosure.
Motion detection angles horizontal: 90°
vertical — N/A
Motion detection speed from 0.3 to 2 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity 3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity weight: not relevant
height: up to 80 cm
False alarm prevention LISA
SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −25°C to +60°C.
Photo verification
Photo by alarm A built-in camera is activated if the detector is armed, and motion is detected.
Photo on demand User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.
Photo by scenario A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.
Photo by schedule The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.
Photo by arming/disarming The detector automatically takes photos when the security state is changed.
Photo resolution
  • 640 × 352 px
  • 320 × 176 px (by default)
Adjusted by PRO or user with admin rights in the Ajax app.
Camera viewing angles
  • horizontal — 105°
  • vertical — 50°
IR backlight For night photography and low light conditions.
Pictures in a series
  • from 1 to 5 images with resolution of 320 × 176 px
  • from 1 to 3 images with resolution of 640 × 352 px
Adjusted by PRO or user with admin rights in the Ajax app.
Photo delivery time
  • up to 9 s — 320 × 176 px resolution
  • up to 20 s — 640 × 352 px resolution
When the hub is connected via Ethernet or 4G and the Wings signal strength between hub When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.
TV distortion (EBU standard) barrel — 17%
Recommendations It is recommended to install the detector at a height of 0.8–1.3 m.
The device is designed for indoor and outdoor use.
Anti-sabotage protection
Anti-masking system The detector is equipped with masking sensors reacting to hindering, covering and painting the lens.
Tamper alarm Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing device authentication
Holding screw to secure the detector on SmartBracket
Communication loss detection after 36 s
Detection time depends on the Jeweler settings.
Power Supply
Battery 4 × CR123A batteries
Up to 3 years of battery life.
Enclosure
Color White
Dimension 206 × 108 × 93 mm
Weight 470 g
Operating temperature range from −25°C to +60°C
Operating humidity up to 95%
Casing protection class IP55
Complete set MotionCam Outdoor (PhOD) Jeweller
Hood
To protect the camera and masking sensors from snow and rain
SmartBracket mounting panel
4 × CR123A batteries
Installation kit
Quick start guide
Warranty 24 months
