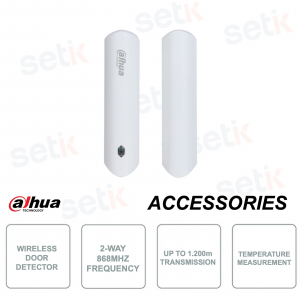

ARD323-W2-868 | WIRELESS DOOR/WINDOW ALARM SENSOR

The Dahua ARD323-W2-868 wireless magnetic sensor is designed to monitor door and window openings, offering a reliable solution for home and commercial security. Thanks to two-way communication on the 868 MHz frequency and AES128 encryption, it ensures secure and stable transmission up to 1,200 meters in open spaces. The device includes advanced features such as a tamper alarm, low battery warning, and room temperature monitoring. Installation is easy thanks to the bracket mount, and the CR123A battery provides up to 5 years of battery life. Compatible with the DMSS app, it allows remote control and firmware updates via the cloud, making it ideal for residential and commercial environments.
Main specifications:
- 868 MHz wireless technology: Stable and secure connection with a range of up to 1,200 meters in open fields, ideal for homes and offices.
- Built-in magnetic reed sensor: Accurately detects the opening of doors and windows, essential for perimeter security.
- Tamper alarm: Protection against sabotage or unauthorized removal attempts.
- Ambient temperature monitoring: Includes a sensor with a range of –15°C to +65°C to monitor internal conditions.
- AES128 encryption: Secure data transmission for safe communication between sensor and control panel.
Further details

Technical data sheet
| ARD323-W2-868 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
1 × green alarm indicator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button |
1 × power button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Upgrade |
Cloud update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Battery Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Test Mode |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Search |
Signal strength detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Carrier Frequency |
868.0 MHz–868.6 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Distance |
Up to 1,200 m (3,937.01 ft) in an open space |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mechanism |
Two-way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encryption Mode |
AES128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
CR123A battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max. 125 mW |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100.2mm × 20.8mm × 20.3mm (3.94”× 0.82” ×0.80”) (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
135.0mm × 98.5mm × 27.8mm (5.31" × 3.88" × 1.09") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Bracket mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
70 g (0.15 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
115 g (0.25 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
THERE IS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Life |
5 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Range |
–15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Precision |
± 1 °C (± 33.8 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1 °C (33.8 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensor |
Reed Switch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scenario |
Non-metal doors |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Movement Distance |
< 40 mm (1.57") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Peripherals |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
External Zone |
1-channel dry contact input |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
