FCL702H Conventional temperature detector Fixed, indicates a static response temperature from 54C° to 65C°, Thermal detector category EN54-5 A1S, Diameter 108, Height 42, Material PC-ABS
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

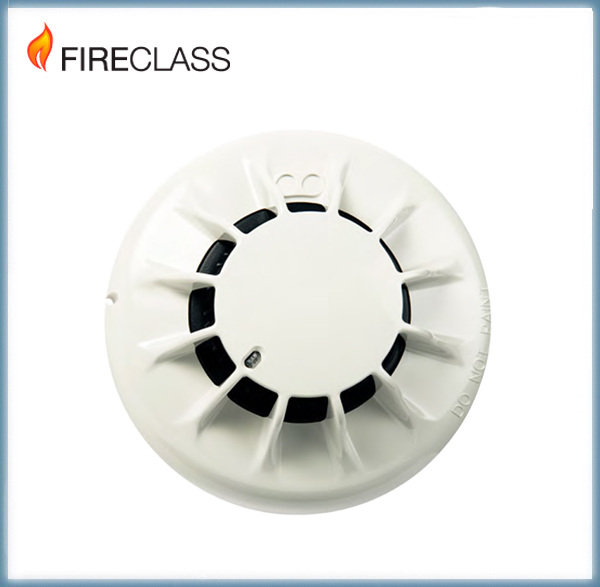

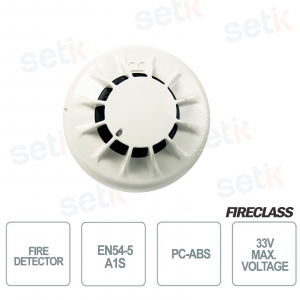

FIRECLASS CONVENTIONAL FIXED TEMPERATURE DETECTOR

Product details
- Fixed temperature detector - FireClass
- Low operating voltage
- Available as smoke, fixed heat, RoR heat, and photoheat
- Compatibility with the 600 series
- Compatible with 4" BD, 4B and 5B bases
- Discreet, low profile design
- Approval according to EN54 and LPCB standards
- Improved detection algorithms
- Built-in drift compensation
- EN54 approval
Data sheet
| Item | FCL702H | |
| Operating voltage Minimum |
10.5V | |
| Operating voltage Typical |
24th | |
| Operating voltage maximum |
33 v | |
| Average quiescent current | 37 μA | |
| Switch on surge | 200 μA maximum | |
| Establishment time | 30s typically | |
| Alarm current | 12.5mA @ 12V 35mA @ 20V 65mA @ 30V |
|
| Voltage reset | 6.9V | |
| Time reset | 2 sec | |
| Remote LED drives | Pulls low from line positive via a 1k resistor | |
Further details
No additional details availableDownloads
Brochure (Currently Not Available
