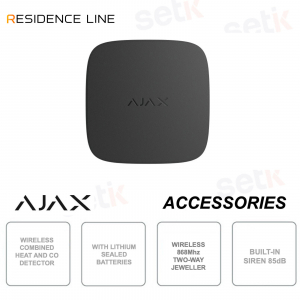

Ajax FireProtect 2 SB Black – Jeweler Heat and Carbon Monoxide Detector

Ajax FireProtect 2 SB Black – Jeweler Heat and Carbon Monoxide Detector

 

63217.136.BL1 # 63217 | Ajax FireProtect 2 SB (Heat/CO) Jeweller black is a wireless fire detector designed to provide comprehensive protection against dangerous overheating and carbon monoxide in residential and professional environments. The device integrates high-precision A1R heat sensors and a chemical carbon monoxide sensor with a lifespan of up to 10 years , ensuring timely and reliable detection even in the absence of smoke. Long-range Jeweller radio communication up to 1700 m , intelligent interconnected fire alarms and a built-in 85 dB siren ensure immediate and coordinated reporting. The elegant black design, long-life sealed lithium battery , continuous self-diagnosis and quick installation make the device ideal for advanced and low-maintenance security systems. Ajax

Technical Data Sheet

Reference: 63217.136.BL1

Brand: Ajax Systems

EAN: 4823114042614

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

63217.136.BL1 | WIRELESS HEAT AND CO DETECTOR WITH SEALED BATTERIES

Ajax

The Ajax FireProtect 2 SB (Heat/CO) Jeweler, 63217.136.BL1, black, is a wireless fire detector designed to provide comprehensive, continuous protection against dangerous overheating and carbon monoxide in residential and professional environments. Thanks to its combination of advanced sensors and reliable radio communication, the device ensures rapid detection, reduced false alarms, and immediate notifications to the Ajax system. Its sleek black design, constant self-diagnosis, and long-lasting sealed battery make the detector a safe, modern, and low-maintenance solution.

Main specifications:

- High-precision A1R heat sensors for rapid detection of critical temperatures

- Chemical carbon monoxide sensor with a lifespan of up to 10 years

- Two-way Jeweler radio communication with a range of up to 1700 m

- Intelligent interconnected fire alarms with built-in 85 dB siren

- Long-lasting sealed lithium battery up to 10 years

- Automatic self-diagnosis and quick installation with SmartBracket support

Further details

✅ Jeweler Communication:
The detector uses two-way, encrypted Jeweller radio technology, designed to ensure stable and secure communication with the Ajax hub, with a range of up to 1700 meters in open terrain, constant connection supervision and immediate alarm transmission even in the presence of interference.
✅ Sensor type:
It integrates a multi-sensor system consisting of high-precision heat sensors and a chemical carbon monoxide sensor, offering comprehensive protection against the main invisible risks associated with smoldering fires and toxic gases.
✅ Dangerous temperature detection:
A1R heat sensors continuously monitor the environment and activate the alarm in the event of a rapid increase in temperature or when critical thresholds are exceeded, ensuring timely warning even in the absence of smoke.
✅ Carbon Monoxide (CO) Detection:
The built-in CO chemical sensor accurately detects dangerous concentrations of carbon monoxide for up to 10 years of use, triggering the alarm before the gas reaches levels harmful to people's health.
✅ Additional features :
It supports intelligent interconnected fire alarms , automation scenarios, real-time notifications via the Ajax app, status LED indications and a built-in 85 dB siren , improving the management and responsiveness of the security system.
✅ Anti-sabotage protection :
It is equipped with anti-tampering and anti-removal systems that detect unauthorized opening or disassembly attempts, immediately sending a signal to the hub to maintain a high level of system security.
✅ Power supply:
It works with a high-efficiency sealed lithium battery , designed to guarantee up to 10 years of autonomy without the need for replacement, with continuous status monitoring and early warnings of low battery.

Technical data sheet

63217.136.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Sensitive elements heat sensor
CO (carbon monoxide) sensor
Dangerous temperature detection
Sensitive element according to the requirements for Class A1R heat detectors Requirements of EN 54-5 and BS 5446-2 standards
High temperature alarm at temperatures above 64 °C
at temperatures above 147 °F
Temperature spike alarm when the temperature rises more than 10°C 50°F in 1 minute or less
Carbon monoxide (CO) detection
Sensitive element chemical CO sensor
Alarm if accumulated dose of CO is exceeded more than 50 ppm (0.005%) — no more than in 90 minutes
more than 100 ppm (0.01%) — no more than in 40 minutes
more than 300 ppm (0.03%) — no more than in 3 minutes
CO concentration of 400 ppm (0.04%) within 3 hours can be life-threatening. The detector stops notifying about the dangerous level of carbon monoxide when the concentration drops to 50 ppm (0.005%) within one minute.
Sensor life 10 years
After 10 years of operation, the detector must be replaced with a new one.
Additional features
Built-in siren 85 dB volume at a distance of 3 meters
85 dB volume at a distance of 9 ft
Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables the notification.
Interconnected fire detectors alarm via primary interconnection
If one of the fire detectors in the system detects a threat, it sends an alarm to the hub. Within 20 seconds, the hub initiates an interconnected alarm and sends data to Ajax apps.
via fallback interconnection1
At the same time with notifying the hub, the initiating detector sends an alarm directly to other detectors. All connected detectors activate the buzzer within a minute. It will work even in the worst-case scenario of losing connection with the hub.
1 Fallback interconnected alarm is available only for FireProtect 2 detectors with firmware version 5.59.2.ХХ or later. Devices that support the fallback interconnected alarm are marked on the package with a “Fallback interconnect supported” label.
LED indication green is a power indication
A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291
yellow is an indication of malfunctions
A LED indicator on the device enclosure lights up when malfunctions are detected. For example, in the case of discharged batteries, contamination of the smoke chamber, or end of the service life
red is an indication of fire alarms
A LED indicator on the device enclosure lights up when the detector registers a fire alarm
Button on the front panel of the detector In normal mode, when pressed, it starts the smoke chamber test. In the event of an alarm or malfunction, pressing turns off the detector sound notification.
Recommendations The device is designed only for indoor installation
SmartBracket mounting panel allows adjusting the position of the detector after installation.
Sabotage protection
Tampering alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against spoofing device authentication
Detection of communication failure within 15 minutes
The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweler or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds.
Power supply
For FireProtect 2 SB (Heat/CO) 2 × CR123A batteries
Up to 7 years of battery life.
Enclosure
Color Black
Dimension 44 × 86 × 86 mm
1.71″ × 3.39″ × 3.39″
Weight 145 g
5.11 oz
Operating temperature range from 0 °C to +50 °C
from 32°F to 122°F
Operating humidity up to 80%
Protection class IP20
Complete set FireProtect 2 SB (Heat/CO) Jeweller
SmartBracket mounting panel
Installation kit
2 × CR123A battery (pre-installed)
Quick start guide
Warranty 24 months
