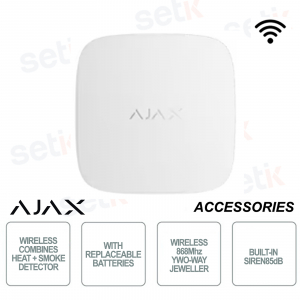

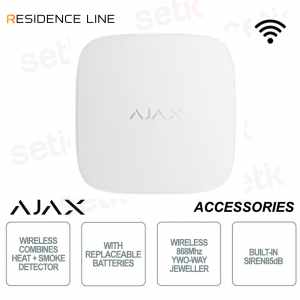

Ajax FireProtect 2 RB White – Wireless Fire Detector with Smoke, Heat and Carbon Monoxide Sensor Jeweller

Ajax FireProtect 2 RB White – Wireless Fire Detector with Smoke, Heat and Carbon Monoxide Sensor Jeweller

 

52252.137.WH1 # 52252 | Ajax FireProtect 2 RB (Heat/Smoke/CO) Jeweller white is an advanced wireless fire detector designed for comprehensive and reliable protection of residential and professional premises. It integrates a dual-spectrum optical smoke sensor , high-precision heat sensors and a chemical carbon monoxide sensor with a lifespan of up to 10 years , ensuring fast and accurate detection. Long-range Jeweller communication up to 1700 m , intelligent interconnected alarms and a built-in 85 dB siren ensure an immediate response to danger. The modern black design, continuous self-diagnosis , quick SmartBracket installation and power supply with long-lasting replaceable batteries make the device ideal for advanced security systems. Ajax

Technical Data Sheet

Reference: 52252.137.WH1

Brand: Ajax Systems

EAN: 4823114030710

Disponibilità: 15

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

52252.137.WH1 | WIRELESS HEAT, SMOKE, AND CO DETECTOR WITH REPLACEABLE BATTERIES

Ajax

The Ajax FireProtect 2 RB (Heat/Smoke/CO) Jeweller, 52252.137.WH1, white, is a next-generation wireless fire detector designed to provide comprehensive, intelligent protection against fires and carbon monoxide leaks in residential and commercial environments. Thanks to a combination of advanced sensors and long-range Jeweller radio communication, the device ensures rapid detection, reduced false alarms, and immediate notifications. The elegant black design blends seamlessly into any environment, while continuous self-diagnosis, interconnected alarms, and a built-in siren ensure a high level of safety and long-term reliability, with simple installation and minimal maintenance.

Main specifications:

- Dual-spectrum optical smoke sensor with anti-false alarm algorithm

- High-precision heat sensors with intelligent thresholds

- Chemical carbon monoxide sensor with a lifespan of up to 10 years

- Jeweller radio communication with a range of up to 1700 m

- Interconnected fire alarms and integrated 85 dB siren

- Long-life replaceable batteries and continuous self-diagnosis system

Further details

✅ Jeweler Communication:
It uses encrypted two-way Jeweller radio technology, designed to ensure stable and secure transmission of fire alarms up to 1700 meters in open fields, with constant monitoring of the integrity of the connection and immediate notification of any interference or signal loss.
✅ Sensor type:
It integrates an advanced multi-sensor system that combines optical smoke detection, temperature measurement and chemical analysis of carbon monoxide, offering complete protection against the main fire and poisoning risks.
✅ Smoke Detection:
Equipped with a dual-spectrum optical sensor with HazeFlow 2 intelligent algorithm, it is able to distinguish real smoke from water vapor or dust, drastically reducing false alarms and ensuring a rapid response in the event of a fire.
✅ Dangerous temperature detection:
High-precision heat sensors constantly monitor abnormal temperature increases and trigger the alarm when critical thresholds are exceeded, even in the absence of smoke, ensuring effective protection against rapidly developing fires.
✅ Carbon Monoxide (CO) Detection:
The built-in CO chemical sensor detects dangerous concentrations of carbon monoxide for up to 10 years, triggering an alarm before the gas reaches levels harmful to human health.
✅ Additional features :
It supports intelligent interconnected alarms , automation scenario triggering, visual and acoustic signaling, real-time app notifications, and integration with sirens and Ajax system devices.
✅ Anti-sabotage protection :
It includes anti-tampering and anti-removal systems that detect attempts to open, disassemble, or deactivate the device, immediately sending a signal to the security system.
✅ Power supply:
It works with replaceable high-efficiency CR123A batteries , designed to provide up to 7 years of battery life, with continuous charge status monitoring and early low battery warnings.

Technical data sheet

52252.137.WH1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Sensitive elements smoke sensor
heat sensor
CO (carbon monoxide) sensor
Smoke detection
Sensitive element double-spectrum optical sensor
Recognizes smoke by the size of particles in the air
False alarm prevention Does not react to water vapor.
Patented smoke chamber Protects the smoke sensor from dust, dirt, and insects
Dangerous temperature detection
Sensitive element according to the requirements for Class A1R heat detectors Requirements of EN 54-5 and BS 5446-2 standards
High temperature alarm at temperatures above 64 °C
at temperatures above 147 °F
Temperature spike alarm when the temperature rises more than 10°C 50°F in 1 minute or less
Carbon monoxide (CO) detection
Sensitive element chemical CO sensor
Alarm if accumulated dose of CO is exceeded more than 50 ppm (0.005%) — no more than in 90 minutes
more than 100 ppm (0.01%) — no more than in 40 minutes
more than 300 ppm (0.03%) — no more than in 3 minutes
CO concentration of 400 ppm (0.04%) within 3 hours can be life-threatening. The detector stops notifying about the dangerous level of carbon monoxide when the concentration drops to 50 ppm (0.005%) within one minute.
Sensor life 10 years
After 10 years of operation, the detector must be replaced with a new one.
Additional features
Built-in siren 85 dB volume at a distance of 3 meters
85 dB volume at a distance of 9 ft
Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables the notification.
Interconnected fire detectors alarm via primary interconnection
If one of the fire detectors in the system detects a threat, it sends an alarm to the hub. Within 20 seconds, the hub initiates an interconnected alarm and sends data to Ajax apps.
via fallback interconnection1
At the same time with notifying the hub, the initiating detector sends an alarm directly to other detectors. All connected detectors activate the buzzer within a minute. It will work even in the worst-case scenario of losing connection with the hub.
1 Fallback interconnected alarm is available only for FireProtect 2 detectors with firmware version 5.59.2.ХХ or later. Devices that support the fallback interconnected alarm are marked on the package with a “Fallback interconnect supported” label.
LED indication green is a power indication
A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291
yellow is an indication of malfunctions
A LED indicator on the device enclosure lights up when malfunctions are detected. For example, in the case of discharged batteries, contamination of the smoke chamber, or end of the service life
red is an indication of fire alarms
A LED indicator on the device enclosure lights up when the detector registers a fire alarm
Button on the front panel of the detector In normal mode, when pressed, it starts the smoke chamber test. In the event of an alarm or malfunction, pressing turns off the detector sound notification.
Recommendations The device is designed only for indoor installation
SmartBracket mounting panel allows adjusting the position of the detector after installation.
Sabotage protection
Tampering alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against spoofing device authentication
Detection of communication failure within 15 minutes
The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweler or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds.
Power supply
For FireProtect 2 RB (Heat/Smoke/CO) 2 × CR123A batteries
Up to 7 years of battery life.
Enclosure
Color White
Dimension 124 × 124 × 45 mm
4.88″ × 4.88″ × 1.77″
Weight 272 g
9.59 oz
Operating temperature range from 0 °C to +50 °C
from 32°F to 122°F
Operating humidity up to 80%
Protection class IP20
Complete set FireProtect 2 RB (Heat/Smoke) Jeweller
SmartBracket mounting panel
Installation kit
2 × CR123A battery (pre-installed)
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
