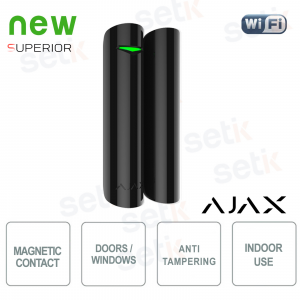

Superior DoorProtect Jeweller Black – Ajax Wireless Opening Sensor with Jeweller Technology and Anti-Sabotage Protection

Superior DoorProtect Jeweller Black – Ajax Wireless Opening Sensor with Jeweller Technology and Anti-Sabotage Protection

 
NEW

AJAX SUPERIOR | 133195.03.BL1 #133195 (ex 67734.03.BL1) # 133195 | Ajax Superior DoorProtect Jeweller black is a wireless opening sensor designed to provide advanced security on doors and windows with an elegant and discreet design. Equipped with a double reed switch, it ensures reliable detection even with flexible magnet installations. Encrypted Jeweller radio communication up to 1200 m ensures stability and data protection. It offers anti-sabotage protection with a built-in tamper and device authentication against tampering. Up to 5 years of battery life with the pre-installed battery minimizes maintenance. Ideal for professional installations thanks to quick installation with SmartBracket and configuration via the Ajax app .

Technical Data Sheet

Reference: 133195.03.BL1

Brand: Ajax Systems

EAN: 4823114075247

Disponibilità: 54

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

133195.03.BL1 | WIRELESS OPENING DETECTOR WITH TWO REED RELAYS

Ajax

The Ajax Superior DoorProtect Jeweller, 133195.03.BL1 #133195 (formerly 67734.03.BL1), black, is a professional wireless opening sensor designed for advanced door and window protection in residential and commercial environments. Thanks to Jeweller radio technology with encrypted communication up to 1200 m, it ensures stable and secure transmission even over long distances. The double reed switch ensures reliable and flexible detection, adapting to different installation configurations. Anti-sabotage protection with tamper and device authentication increases the level of security against tampering attempts. The matte black design discreetly integrates into any environment, while the battery life of up to 5 years with the pre-installed battery reduces maintenance. Installation is quick and intuitive thanks to SmartBracket support and remote configuration via the Ajax app.

Main specifications:

- Encrypted Jeweller radio communication up to 1200 m

- Double reed switch for precise detection

- Anti-sabotage protection with integrated tamper

- Battery life up to 5 years with pre-installed CR123A battery

- Quick installation with SmartBracket and configuration via app

- Matte black design for discreet integration

Further details

✅ Jeweler Communication :
The sensor uses encrypted Jeweller radio technology , which ensures stable two-way transmission up to 1200 m in open field , with constant monitoring of the device status and advanced data protection against interception and interference.
✅ Detection :
Thanks to the high-sensitivity double reed switch , the device ensures immediate and reliable detection of the opening of doors and windows , allowing flexible installation of the magnet on multiple sides without loss of performance.
✅ Anti-sabotage protection:
The system integrates anti-tamper and device authentication , detecting attempts at disassembly, unauthorized opening or spoofing, and sending immediate notifications to the control panel for continuous perimeter security.
✅ Power supply:
Powered by a pre-installed CR123A battery , the sensor offers up to 5 years of battery life , with automatic low battery notifications ensuring continuous operation and reduced maintenance over time.

Technical data sheet

133195.03.BL1
Communication
Jeweler communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
  • Remote configuration in the Ajax apps.
Frequency bands up to 20 mW
Automatic power control to reduce power consumption and noise interference
Radio signal modulation GFSK
Radio signal range up to 1,200 m
up to 3,900 ft
Between detector and control panel (or range extender) in an open space
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming
Detection
Sensitive element 2 x reed switches
The magnet can be installed to the right or left side of the detector.
Magnets small and big one come in the set
The small magnet operates at a distance of up to 1 cm from the detector, and the big magnet — up to 2 cm
The small magnet operates at a distance of up to 0.4″ from the detector, and the big magnet — up to 0.8″
Protection against reed switch chatter The detector ignores vibrations lasting up to 0.15 s
Input to connect an additional detector Wired detector with the normally closed (NC) contact type
Chime The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Recommendations Do not install the detector using both magnets at the same time. The detector recognizes only one magnet on one side of the detector — left or right
For indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the detector from the surface or remove it from the mounting panel
Holding screw to secure the detector on SmartBracket
Protection against forgery devices authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power Supply
Battery 1 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 7 years
Detector's operating voltage range 2.1−3.3 V⎓
Detector's nominal operating voltage 3 V⎓
Quiescent detector's current consumption at nominal voltage 0.013 mA
Maximum detector's current consumption at nominal voltage 10.5 mA
Full capacity 1,600 mAh
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.1 V⎓
Device is switched off
End-of-life battery capacity 300 mAh
Manufacturer Panasonic
Enclosure
Color Black
Detector dimensions 103 × 22 × 21 mm
4.05″ × 0.87″ × 0.83″
Dimensions of the big magnet 103 × 22 × 21 mm
4.05″ × 0.87″ × 0.83″
Dimensions of the small magnet 55 × 11 × 6 mm
2.15″ × 0.43″ × 0.24″
Weight 34 g
1.20 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Protection class IP50, IK04
IP30 tested by CNPP according to NFa2P.
Complete set Superior DoorProtect Jeweler
SmartBracket mounting panel with holding screw
CR123A battery (pre-installed)
Big magnet
Small magnet
Outside-mounted terminal clamp
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
