Ajax Superior Montion Protect Jeweller Plus - Wireless IR Motion Detector with Microwave Sensor - AJAX

Ajax Superior Montion Protect Jeweller Plus - Wireless IR Motion Detector with Microwave Sensor - AJAX

NEW

AJAX SUPERIOR | 133223.02.BL1 #133223 (ex 67726.02.BL1) - Ajax Superior Montion Protect Jeweller Plus Wireless Motion Detector 868MHz Jeweller. Two-way communication, Grade 2 certificate. Up to 1200m transmission range (in open area), two types of sensors: PIR sensor - microwave sensor. Detection distance up to 12m. Pet immune. 1 x CR123 lifespan up to 5 years. >> Read our article!

AJAX SUPERIOR SERIES | FOR CERTIFIED PROFESSIONALS ONLY:

The following products are part of a special line intended for professional projects.
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.

Reference: 133223.02.BL1

Brand: Ajax Systems

EAN: 4823114075537

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


FREE TVCC SIGN!×


With all >> AJAX KITS

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Prodotto PRO

AJAX SUPERIOR SERIES | FOR CERTIFIED PROFESSIONALS ONLY:
The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.


Prodotto Ajax

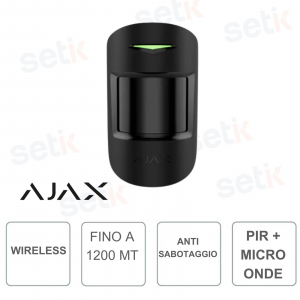

133223.02.BL1 | AJAX SUPERIOR MOTION PROTECT JEWELLER PLUS - WIRELESS IR MOTION DETECTOR WITH ADDITIONAL K-BAND MICROWAVE SENSOR





AJAX SUPERIOR MOTION PROTECT JEWELLER PLUS | MOTION DETECTOR

GRADE 2 EN 50131 | PD 6662 2017 | UNCERTAIN | SSF (Soon)

133223.02.BL1 #133223 (ex 67726.02.BL1) - Ajax Superior Montion Protect Jeweler Plus Wireless IR motion detector with additional K-band microwave sensor

|| COMPATIBLE WITH:

  • HUB PLUS
  • HUB 2 (2G)
  • HUB 2 (4G)
  • HUB 2 (PLUS)
  • HYBRID HUB (2G)
  • HYBRID HUB (4G)

133223.02.BL1 | Ajax Superior Montion Protect Jeweller Plus - Wireless IR motion detector with additional K-band microwave sensor

Main features:

Ajax Superior
Dual-technology volumetric PIR detector with pet immunity
Bidirectional
Grade 2 Certificate
Wireless 868 MHz Jeweler
Internal antenna range in open field 1200 m
Motion detection indicator
Detection: Range 12m / H:88.5º / V:80º
Anti-opening tamper
Inmunidad before pets <20 kg=""> 50 cm
Power supply 1 CR123a 3.0 V Panasonic battery (lifespan approximately 5 years)
Operating temperature from −10°C to +40°C
Weight 105 g
Protection class IP30
Internal use
Includes bracket with fixing screw
Black color

133223.02.BL1 | Ajax Superior Montion Protect Jeweller Plus - Wireless IR motion detector with additional K-band microwave sensor

Brand Ajax Superior
Technology Volumetric PIR and microwave sensor
security level Grade 2
PIR lens 24 zones and 6 floors
Detection field 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency 868 MHz Jeweler
Transmission distance ≤ 1200 m in open space
Pet immune ≤ 20 kg, ≤ 50 cm
Anti-masking Not available
Sensitivity Adjustable. 3 levels (low, medium, and high)
LED indication Alarm, tamper, signal
Drums 1 CR123A 3.0 V Panasonic battery (lasting approximately 5 years)
Compatibility Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2
Bracket SmartBracket with fixing screw
Operating temp. 0ºC ~ 50ºC
Cover material ABS plastic
Dimensions (without bracket) 110 (I) x 65 (W) x 50 (L) mm
Color Black

133223.02.BL1 | Ajax Superior Montion Protect Jeweller Plus - Wireless IR motion detector with additional K-band microwave sensor


Sensor type


PIR sensor
microwave sensor
The K-band microwave sensor prevents false alarms caused by thermal interference.
Operating frequency: 24 GHz.




Jeweler 868MHz

Transmission distance between the detector and the central unit (or repeater) in open field.

up to 1200 M


Pet immunity

weight: up to 20 kg
height: up to 50 cm




Remote configuration and management

Via AJAX APP




Two colors

Available: White or Black

Included in the package

MotionProtect S Plus Jeweler

SmartBracket mounting panel with fixing screw

CR123A battery (pre-installed)

Installation kit

Quick Guide

133223.02.BL1 | Ajax Superior Montion Protect Jeweller Plus - Wireless IR motion detector with additional K-band microwave sensor

Brochure not available


WHO IS AJAX?

Ajax Systems

Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELER wireless technology, allowing you to securely monitor all connected network devices. Ajax offers solutions for the home, office, or commercial business, managed via an app that's always up-to-date and compatible with iOS and Android systems. Ajax devices are easy to install—it takes just 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have a virtually zero error rate, and, in the event of danger, send a notification (text message, push notification, or call) in less than 150 milliseconds.

Ajax alarm systems use cutting-edge wireless technology, making all products reliable and always connected. In addition to excellent performance, Ajax systems stand out for their modern and elegant design.

I sistemi ajax sono muniti di batterie?

ARE BATTERIES INCLUDED?

All alarm products in the Ajax range are already equipped with batteries!
Out of the box they are ready to use!
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
