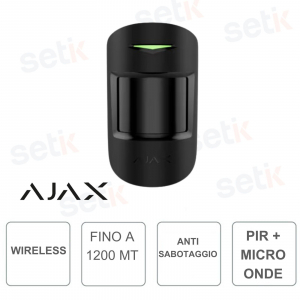

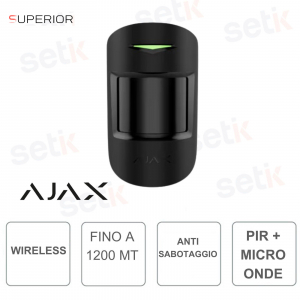

Ajax Superior MotionProtect Plus Jeweler Black – Professional Wireless PIR and Microwave Sensor

Ajax Superior MotionProtect Plus Jeweler Black – Professional Wireless PIR and Microwave Sensor

 
NEW

AJAX SUPERIOR | 133223.02.BL1 (ex 67726.02.BL1) #133223 | Ajax Superior MotionProtect Plus Jeweller black is a professional-grade wireless motion detector that combines a PIR sensor and a K-band microwave sensor for extremely reliable detection even in critical environments. It guarantees a detection range of up to 12 meters with an 88.5° angle , maintaining constant accuracy thanks to advanced temperature compensation . Encrypted Jeweller technology up to 1,700 meters ensures stable and interference-free communications, while the prevention of false alarms with the SmartDetect algorithm and immunity to pets up to 20 kg increase the reliability of the system. The device is completed by anti-sabotage protection with tamper and authentication and a battery life of up to 5 years , ideal for professional wireless installations. Ajax

Technical Data Sheet

Reference: 133223.02.BL1

Brand: Ajax Systems

EAN: 4823114075537

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

133223.02.BL1 | WIRELESS IR MOTION DETECTOR WITH ADDITIONAL K-BAND MICROWAVE SENSOR

Ajax

Ajax Superior MotionProtect Plus Jeweller, 133223.02.BL1 (formerly 67726.02.BL1), black is a professional wireless motion detector that integrates a PIR sensor and a K-band microwave sensor to ensure extremely reliable detection even in complex environments. The device offers a detection range of up to 12 meters with an 88.5° angle , maintaining constant accuracy thanks to advanced temperature compensation . Encrypted Jeweller radio communication up to 1,700 meters ensures stability, protection from interference and continuous supervision. The system is completed by false alarm prevention with the SmartDetect algorithm , pet immunity up to 20 kg , anti-sabotage protection with tamper and authentication and a battery life of up to 5 years , ideal for professional wireless installations.

Main specifications:

- Wireless motion detector with dual PIR and microwave K-band sensors

- Detection range up to 12 m with an 88.5° angle

- Encrypted Jeweler radio communication up to 1,700 m

- SmartDetect algorithms and advanced thermal compensation

- Pet immunity up to 20 kg

- Anti-sabotage protection with tamper and authentication

- Battery life up to 5 years with CR123A

Further details

✅ Jeweler Communication :
Ajax Jeweller technology ensures secure two-way radio transmission up to 1,700 meters in open terrain , with advanced encryption , jamming detection , frequency hopping and continuous monitoring of the device status for always reliable communication.
✅ Detection :
The dual detection system combines PIR sensor and K-band microwave sensor , ensuring motion detection up to 12 meters with an 88.5° angle , high accuracy even in critical environments and intelligent thermal compensation for consistent performance.
✅ Anti-sabotage protection:
The device integrates anti-spoofing authentication , anti-opening and anti-tear tamper protection and immediate notifications in the event of tampering attempts, ensuring constant security of the sensor and the alarm system .
✅ Power supply:
Ajax Superior MotionProtect Jeweller is powered by pre-installed CR123A battery , offering up to 5 years of battery life , low battery notifications and continuous operation without frequent maintenance , ideal for professional wireless installations.

Technical data sheet

133219.09.BL1
Communication
Jeweler communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element PIR sensor
microwave sensor
K-band microwave sensor to prevent false alarms caused by thermal interference.
Operating frequency: 24 GHz.
Motion detection distance up to 12 meters
up to 39 ft
When installed at the height of 2.4 meters
When installed at the height of 7.9 ft
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity weight: up to 20 kg
weight: up to 44 lb
height: up to 50 cm
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Recommendations It is recommended to install the detector at the height of 2.4 meters.
It is recommended to install the detector at a height of 7.9 ft.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the detector from the surface or remove it from the mounting panel
Holding screw to secure the detector on SmartBracket
Protection against forgery devices authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Battery 1 × CR123A
Pre-installed..
Type Type C
Calculated battery life up to 5 years
Detector's operating voltage range 2.1−3.3 V⎓
Detector's nominal operating voltage 3 V⎓
Quiescent detector's current consumption at nominal voltage 0.019 mA
Maximum detector's current consumption at nominal voltage 2.75 mA
Full capacity 1,600 mAh
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.1 V⎓
Device is switched off
End-of-life battery capacity 300 mAh
Manufacturer Panasonic
Enclosure
Color Black
Dimension 110 × 65 × 50 mm
4.33″ × 2.56″ × 1.97″
Weight 105 g
3.7 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP30
Complete set Superior MotionProtect Plus Jeweller
SmartBracket mounting panel with holding screw
CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
