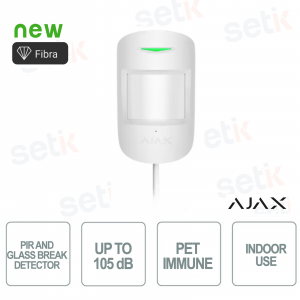

Ajax Superior CombiProtect Fibre White – Professional Wired PIR and Glass Breakage Sensor

Ajax Superior CombiProtect Fibre White – Professional Wired PIR and Glass Breakage Sensor

 
NEW

AJAX FIBER | 44391.06.WH1 # 44391 | Ajax Superior CombiProtect Fiber white is a professional wired sensor that combines PIR motion detection and glass break detection with a built-in microphone , ideal for advanced security systems. It guarantees a motion detection range of up to 12 meters with an 88.5° angle and a glass break coverage of up to 9 meters with a 180° angle , reducing false alarms thanks to SmartDetect algorithms and temperature compensation . Encrypted fiber communication up to 2,000 meters ensures stability and reliability, while anti-sabotage protection with tamper and device authentication completes a safe, efficient solution designed for professional installations. Ajax

Technical Data Sheet

Reference: 44391.06.WH1

Brand: Ajax Systems

EAN: 4823114020018

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

44391.06.WH1 | Wired IR Motion and Glass Break Detector with Microphone

Ajax

Ajax Superior CombiProtect Fiber, 44391.06.WH1, white is a professional wired sensor that combines PIR motion detection and glass break detection with a built-in microphone , offering comprehensive protection for residential and commercial premises. The device ensures a motion detection range of up to 12 meters with an 88.5° angle and glass break coverage of up to 9 meters with a 180° angle , drastically reducing false alarms thanks to the SmartDetect, DualTone algorithms and temperature compensation . Encrypted fiber communication up to 2,000 meters and advanced anti-sabotage protection ensure reliability, stability and continuous security in professional installations.

Main specifications:

- Dual PIR and glass break sensors with digital microphone

- Motion detection up to 12m with 88.5° angle

- Glass break detection up to 9m with 180° angle

- SmartDetect and DualTone algorithms for false alarm reduction

- Encrypted fiber communication technology up to 2,000 meters

- Anti-tamper protection with device tamper and authentication

- Pet immunity and advanced thermal compensation

Further details

✅ Fiber Communication :
Ajax Fiber technology ensures stable two-way transmission up to 2,000 meters , with advanced encryption , continuous polling of device status and maximum reliability even in complex professional security installations.
✅ Motion detection :
The intelligent temperature-compensated PIR sensor provides accurate detection up to 12 meters at an 88.5° angle , maintaining consistent performance over temperature variations and offering pet immunity to reduce false alarms.
✅ Glass break detector :
The acoustic sensor with DualTone algorithm enables glass break detection up to 9 meters with 180° horizontal coverage , effectively filtering out ambient noises such as barking dogs or traffic.
✅ Anti-sabotage protection:
The device integrates anti-opening and anti-tear tamper , authentication against spoofing and protection against short circuits on the fibre line , guaranteeing continuous security against tampering attempts .
✅ Power supply:
Ajax Superior CombiProtect Fibra is powered directly via 5–30 V Fibre line with extremely low power consumption , ensuring stable and continuous operation within the wired alarm system.

Technical data sheet

44391.06.WH1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length up to 2,000 meters
up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Encrypted communication
Detection
Sensitive element 1 × PIR sensor
Motion detection distance up to 12 meters
When installed at the height of 2.4 meters
up to 39 ft
When installed at 7.9 ft height
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity up to 20 kg
up to 44 lb
up to 50 cm in height
up to 1.6 ft height
False alarm prevention SmartDetect
Software algorithm.
Temperature compensation Effective motion detection within −10 °C to +40 °C range
Effective motion detection within 14 °F to 104 °F range.
Recommendations It is recommended to install the detector at the height of 2.4 meters. The device is designed for indoor use only.
Glass break detection
Sensing element 1 × electret microphone
Glass break detection distance from 0.3 to 9 m
from 1 to 29.5 ft
Glass break detection angles horizontal — 180°
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
False alarm prevention DualTone
Two-factor glass break verification software algorithm: by low and high frequencies
Glass break characteristics
Minimum glass size 400 × 400 mm
15.7" × 15.7"
Detection distance is up to 9 m (29.5 ft) for all glass types when the High sensitivity level is selected.
Glass types and their thickness standard bread — 4 mm
insulated glass — 4 mm
tempered glass — 6 mm
Sabotage protection
Tamper alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against forgery devices authentication
Power supply
Fiber line power supply 7−30 V⎓, up to 26 mW
The detector is powered by the control panel.
Device's nominal operating voltage 24 V⎓
Quiescent device's current consumption at nominal voltage 90 µA
Maximum device's current consumption at nominal voltage 2.1 mA
Enclosure
Color White
Dimension 110 × 65 × 50 mm
4.33″ × 2.56″ × 1.97″
Weight 82 g
2.89 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50, IK04
IP30 tested by CNPP according to NFa2P.
Complete set Superior CombiProtect Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
