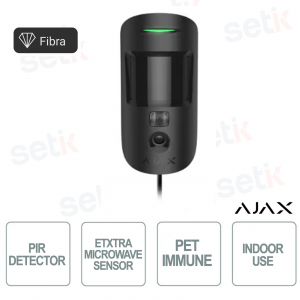

Ajax Superior MotionCam (PhOD) Fiber-optic wired indoor motion detector with extra microwave sensor Black

Ajax Superior MotionCam (PhOD) Fiber-optic wired indoor motion detector with extra microwave sensor Black

NEW

AJAX FIBER | 143611.169.BL1 #143611 (ex 53770.169.BL1) - Ajax Superior MotionCam(PhOD) Fiber PIR Motion Detector Wired with PIR sensor. Motion detection distance 12 meters. Connection with Fiber line up to 2000 m. Pet Immune, Anti Tampering, Smart Detect . Remote configuration and management . Temperature compensation. IP50 protection.

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:

The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.

Reference: 143611.169.BL1

Brand: Ajax Systems

EAN: 4823114079177

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


FREE TVCC SIGN!×


With all >> AJAX KITS

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Prodotto PRO

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:
The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.


Prodotto Ajax

143611.169.BL1 | AJAX SUPERIOR MOTIONCAM (PHOD) FIBER - PIR DETECTOR WITH DETECTION ANGLE SENSOR - DETECTION SPEED - PET IMMUNE






AJAX SUPERIOR MOTIONCAM (PHOD) FIBER | DUAL-TECHNOLOGY WIRED PIR DETECTOR

GRADE 2 EN 50131 | PD 6662 2017 | SSF

143611.169.BL1 #143611 (formerly 53770.169.BL1) - Ajax Superior MotionCam(PhOD) Fibra is a wired motion detector with an additional K-band microwave sensor. It detects motion at a distance of up to 12 meters, with a motion detection speed of 0.3 to 2.0 m/s. Together with the infrared sensor, it uses radio frequency scanning that filters out thermal interference. It ignores animals up to 50 cm tall and weighing up to 20 kg. For indoor installation.

|| COMPATIBLE EXCLUSIVELY WITH:
  • HYBRID 2G HUB ( White / Black )
  • 4G HYBRID HUB (White / Black)

143611.169.BL1 | Ajax Superior MotionCam (PhOD) Fiber - Wired Dual Technology Motion Detector


Main features:

- Wired motion detector with dual technology, K-band microwave to filter thermal interference

- Device capable of detecting, through PIR and MW technology, any intrusion attempt.

- Analyzes movement with 12m coverage

- Pet Immunity : Ignores the movement of small pets (up to 20kg / height 50cm)

- Ignore drafts and air conditioners

- Sensitivity adjustable on 3 levels

- Connection with fiber line up to 2000 m

- IR backlight

- Images in series from 1 to 5 seconds

- Anti-counterfeiting, Anti-tampering, Smart Detect

- Connects to the Ajax Hub with a simple switch and with the help of QR codes

- Can work with a third-party security system via Ajax integration modules (uartBridge and ocBridge/ocBridge Plus)

- Supply voltage 7−30 V⎓, up to 120 mW

- Suitable for indoor environments

- Encrypted communication

- Temperature compensation

- Grade 2 Certificate

- IP50 protection

- Operating temperature: from −10°C to +40°C

- Operating humidity: up to 75%

- Quick installation

- Color: Black

- Dimensions: 135 × 70 × 66 mm

143611.169.BL1 | Ajax Superior MotionCam (PhOD) Fiber - Wired Dual Technology Motion Detector

Model: Alarm 143611.169.BL1
General settings
Classification Optical-electronic wired security detector
Color

Black

Installation method Indoors
Type of detector

Wired

Limitations
Compatibility Hybrid Hub (2G)
Hybrid Hub (4G)
Communication
Fiber protocol Transmission of events and alarms

Alarm delivery time: 0.15 s

Recommended cable type for detector connection

Signal cable (4×0.22 copper)

Twisted pair U/UTP cat.5 (4×2×0.51)

Connection wire length Up to 2000
Polling interval

From 12 to 300 seconds (set by admin in the app)

Sensor parameters
Sensing element Passive IR sensor
Microwave sensor
Sensitivity

Adjustable, 3 levels

Motion detection distance Up to 12 meters
Detector angle

Horizontal — 88.5°
Vertical — 80°

Motion detection speed From 0.3 to 2.0 m/s
Pet immunity option

Yes.

The detector does not react to animals up to 50 cm tall and weighing up to 20 kg when properly installed and configured.

Anti-sabotage protection

Tampering alarm Yes
Protection against forgery

Yes

Power supply

Detector power supply 7−30 V
Current consumption up to 120 mW
Enclosure
Dimensions 135 × 70 × 66 mm
Weight 150 g
Operating temperature range From −10°C to +40°C
Operating humidity Up to 75%
Protection class IP50
Service life 10 years

143611.169.BL1 | Ajax Superior MotionCam (PhOD) Fiber - Wired Dual Technology Motion Detector


PIR + Microwave

Microwave sensor verifies PIR sensor alarms





Pet immunity

Up to 20 kg / Up to 50 cm





Fiber

Connection with fiber line

up to 2000 M


Detection angle Vertical / Horizontal





SmartDetect

Software algorithm against false alarms


Remote configuration and management





Easy installation




Energy consumption

up to 120 mW


Temperature compensation

Effective detection in hot and cold temperatures





Two colors

Also available in Black



143611.169.BL1 | Ajax Superior MotionCam (PhOD) Fiber - Wired Dual Technology Motion Detector
