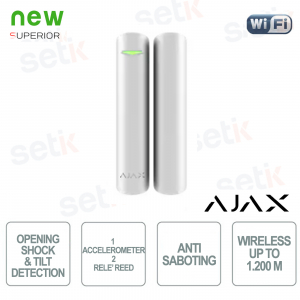

Ajax Superior DoorProtect Jeweller Plus Wireless 868MHz Jeweler Magnetic Door/Window Contact with Two Reed Relays - White

Ajax Superior DoorProtect Jeweller Plus Wireless 868MHz Jeweler Magnetic Door/Window Contact with Two Reed Relays - White

NEW

AJAX SUPERIOR | 133198.21.WH1 #133198 (formerly 67735.21.WH1) - Ajax Superior DoorProtect Jeweller Plus (8PD) white Wireless 868MHz Jeweller opening detector. Two-way magnetic door/window contact, grade 2 certified. Up to 1200m transmission range (in open field), two reed relays for magnet installation on both sides, opening/closing detection indicator. Wired sensor input, anti-opening tamper, power supply: 1 CR123A 3.0V battery, indoor use, white color. >> Read our article!

AJAX SUPERIOR SERIES | FOR CERTIFIED PROFESSIONALS ONLY:

The following products are part of a special line intended for professional projects.
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.

Reference: 133198.21.WH1

Brand: Ajax Systems

EAN: 4823114075261

Disponibilità: 68

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


FREE TVCC SIGN!×


With all >> AJAX KITS

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Prodotto PRO

AJAX SUPERIOR SERIES | FOR CERTIFIED PROFESSIONALS ONLY:
The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.


Prodotto Ajax


133198.21.WH1 | AJAX SUPERIOR DOORPROTECT JEWELLER PLUS WHITE 868MHZ WIRELESS INDOOR DOOR/WINDOW OPENING DETECTOR





AJAX SUPERIOR DOORPROTECT JEWELLER PLUS | DOOR/WINDOW OPENING DETECTOR

GRADE 2 EN 50131 | PD 6662 2017 | UNCERTAIN | SSF (Soon)

133198.21.WH1 #133198 (ex 67735.21.WH1) - Ajax Superior DoorProtect Jeweller Plus (8PD) white Wireless opening detector 868MHz Jeweller

|| COMPATIBLE WITH:

  • HUB PLUS
  • HUB 2 (2G)
  • HUB 2 (4G)
  • HUB 2 (PLUS)
  • HYBRID HUB (2G)
  • HYBRID HUB (4G)

133198.21.WH1 | Ajax Superior Doorprotect Jeweller Plus - Door/Window Opening Detector

Main features:

Ajax Superior

Magnetic door/window contact

Bidirectional

Grade 2 Certificate

Wireless 868 MHz Jeweler

Internal antenna range in open field 1200 m

Two reed relays: Allows the magnet to be installed on both sides of the device

Opening/closing detection indicator

Accepts wired sensor input

Anti-opening tamper

Power supply 1 CR123a 3.0 V Panasonic battery (lifespan approximately 7 years)

Internal use

Includes bracket with fixing screw

White color

133198.21.WH1 | Ajax Superior Doorprotect Jeweller Plus - Door/window opening detector

Model: Alarm 133198.21.WH1
Frequency

868 MHz Jeweler

Security grade

Grade 2

Transmission Distance

1200 m in open space

Number of relays

2, for installation on both sides

LEDs Alarm, Tamper, Signal
Cover material ABS plastic
Battery 1 battery CR123A 3.0 (7 years of battery life)
Compatibility Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2
Bracket SmartBracket with fixing screw
Operating temperature range from -10°C to +40°C
Transmitter dimensions 103×22×21mm
Dimensions of the big magnet 103 × 22 × 21 mm
Dimensions of the small magnet 55 × 11 × 6 mm
Detector weight 37 g
Operating humidity up to 75%
Protection class IP50
Color white

133198.21.WH1 | Ajax Superior Doorprotect Jeweller Plus - Door/Window Opening Detector


Two magnets included


Small magnet + large magnet.
The small magnet works at a maximum distance of 1cm from the detector, the large one up to 2cm

More installation options.
The magnet can be installed on the right or left side of the detector. 2 reed switches





Jeweler 868MHz

Transmission distance between the detector and the central unit (or repeater) in open field.

up to 1200 M


Terminals

Useful for connecting a third-party NC detector




Reed switch vibration protection

The detector ignores vibrations lasting up to 0.15 s




Energy consumption

reaches 20 mW

Automatic power control to reduce power consumption and noise interference.


Remote configuration and management

Via AJAX APP




Two colors

Also available in black


Included in the package

DoorProtect S Jeweler

SmartBracket mounting panel with fixing screw

CR123A battery (pre-installed)

Large magnet

Small magnet

External detector connection input

Installation kit

Quick Guide
