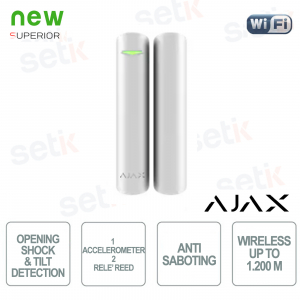

Ajax Superior DoorProtect Plus Jeweller White – Shock and Tilt Opening Sensor

Ajax Superior DoorProtect Plus Jeweller White – Shock and Tilt Opening Sensor

 
NEW

AJAX SUPERIOR | 133198.21.WH1 (formerly 67735.21.WH1) # 133198 | Ajax Superior DoorProtect Plus Jeweller white is an advanced wireless opening sensor designed for complete perimeter protection of doors and windows. It integrates highly sensitive dual reed switches along with shock and tilt sensors , providing precise detection of openings, vibrations, and break-in attempts. Encrypted Jeweller radio technology up to 1200 m ensures reliable and secure communication with the Ajax hub. It features tamper protection and device authentication against tampering and spoofing. The matte black design fits into any architectural context, while the battery life of up to 5 years with the pre-installed battery ensures continuous operation and minimal maintenance. Ajax

Technical Data Sheet

Reference: 133198.21.WH1

Brand: Ajax Systems

EAN: 4823114075261

Disponibilità: 63

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

133198.21.WH1 | WIRELESS OPENING, SHOCK, AND TILT DETECTOR WITH TWO REED RELAYS AND ACCELEROMETER

Ajax

The Ajax Superior DoorProtect Plus Jeweller, 133198.21.WH1 (formerly 67735.21.WH1), white is a professional-grade wireless opening sensor designed to provide advanced perimeter protection for doors and windows. It combines a double reed switch , shock sensor , and tilt sensor , allowing it to detect not only opening but also vibrations and break-in attempts before they occur. Encrypted Jeweller radio technology up to 1200 m ensures stable, secure, two-way communication with the Ajax hub. The device integrates anti-sabotage protection with tamper and authentication , reducing the risk of tampering. The matte black design ensures discreet installation, while the battery life of up to 5 years with the pre-installed battery minimizes maintenance and is ideal for professional installations.

Main specifications:

- Double reed switch for reliable opening detection

- Shock and tilt sensors for advanced break-in protection

- Encrypted Jeweller radio communication up to 1200 m

- Anti-tamper protection with device tamper and authentication

- Battery life up to 5 years with pre-installed CR123A battery

- Matte black design with quick SmartBracket installation

Further details

✅ Jeweler Communication :
The device uses Jeweller radio technology which guarantees safe, stable and interference-free transmissions , with a range of up to 1200 metres in open fields and constant monitoring of the sensor status, ensuring high reliability even in complex professional installations.
✅ Detection :
Thanks to the combination of a double reed switch , shock sensor and inclination sensor , the system accurately detects openings, vibrations, impacts and changes in angle , allowing break-in attempts to be intercepted before they turn into real intrusions.
✅ Anti-sabotage protection:
The sensor integrates anti-tampering and device authentication , detecting dismantling, unauthorized opening and spoofing attempts, with immediate alarm sending to the control panel for continuous perimeter security.
✅ Power supply:
Powered by a pre-installed CR123A battery , the device ensures an operating life of up to 5 years , with automatic low battery warnings that reduce maintenance and ensure continuity of operation over time.

Technical data sheet

133198.21.WH1
Communication
Jeweler communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
  • Remote configuration in the Ajax apps.
Frequency bands up to 20 mW
Automatic power control to reduce power consumption and noise interference
Radio signal modulation GFSK
Radio signal range up to 1,200 m
up to 3,900 ft
Between detector and control panel (or range extender) in an open space
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming
Detection
Sensitive element 1 accelerometer
2 reed switches
The magnet can be installed to the right or left side of the detector.
Magnets small and big one come in the set
The small magnet operates at a distance of up to 1 cm from the detector, and the big magnet — up to 2 cm
The small magnet operates at a distance of up to 0.4″ from the detector, and the big magnet — up to 0.8″
Protection against reed switch chatter The detector ignores vibrations lasting up to 0.15 s
Input to connect an additional detector Wired detector with the normally closed (NC) contact type
Shock sensor sensitivity 3 levels
For each reed switch. The detection radius depends on the material type:
  • Framed glass window — 1.2 m (high sensitivity level), 1 m (low sensitivity level).
  • Wooden plate — 1.2 m (high sensitivity level), 1 m (low sensitivity level).
  • Concrete plate — 0.75 m (high sensitivity level), 0.5 m (low sensitivity level).
The smoother and cleaner the detection surface is, the better the detection radius is
Option to ignore single shock Adjusted by PRO or user with admin rights in the Ajax app.
Tilt sensor activation threshold from 5° to 25°
Adjusted by PRO or user with admin rights in the Ajax app
Chime The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Recommendations Do not install the detector using both magnets at the same time. The detector recognizes only one magnet on one side of the detector — left or right
For indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the detector from the surface or remove it from the mounting panel
Holding screw to secure the detector on SmartBracket
Protection against forgery devices authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power Supply
Battery 1 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 5 years
Detector's operating voltage range 2.1−3.3 V⎓
Detector's nominal operating voltage 3 V⎓
Quiescent detector's current consumption at nominal voltage 0.013 mA
Maximum detector's current consumption at nominal voltage 10.5 mA
Full capacity 1,600 mAh
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.1 V⎓
Device is switched off
End-of-life battery capacity 300 mAh
Manufacturer Panasonic
Enclosure
Color White
Detector dimensions 103 × 22 × 21 mm
4.05″ × 0.87″ × 0.83″
Dimensions of the big magnet 103 × 22 × 21 mm
4.05″ × 0.87″ × 0.83″
Dimensions of the small magnet 55 × 11 × 6 mm
2.15″ × 0.43″ × 0.24″
Weight 37 g
1.30 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Protection class IP50, IK04
IP30 tested by CNPP according to NFa2P.
Complete set Superior DoorProtect Plus Jeweller
SmartBracket mounting panel with holding screw
CR123A battery (pre-installed)
Big magnet
Small magnet
Outside-mounted terminal clamp
Installation kit
Quick start guide
Warranty 24 months
