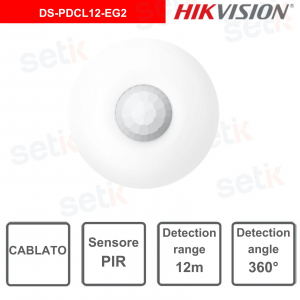

Hikvision ceiling Pir sensor - 12MT operating range

Hikvision ceiling Pir sensor - 12MT operating range
-35%

AXPRO HIKVISION

DS-PDCL12-EG2 Hikvision Indoor PIR ceiling detector and Digital quad pyro sensor - 12m detection range - 172 360° detection zones - LED status and operation indicators - High quality product.




Reference: DS-PDCL12-EG2

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

AXPro Alarms Hikvision

Hikvision AXPro Alarms

DS-PDCL12-EG2 | AX PRO HIKVISION CEILING PIR SENSOR - DIGITAL QUAD PYRO SENSOR

AX Pro Hikvision Indoor PIR ceiling detector, with PIR technology - LED operating indicator - 12m detection range - 172 detection zones 360° - For indoor ceiling application

DS-PDCL12-EG2-WE

DS-PDCL12-EG2 - HIKVISION


Main features

- Ceiling sensor with PIR technology
- Digital quad pyro sensor
- 12m detection range
- 172 detection zones
- LED status indicator:
- Operating temperature: -10°C to 55°C (14°F to 131°F)
- Product net weight: 79g
- For ceiling application
- Ideal for indoor use
- Dimensions: Ø101.2 x 32.9 (H) mm
- Mounting height: 2.4 up to 4 m

Documentation: Brochures

Data sheet

Model

DS-PDCL12-EG2

Detection Performance

Detection Method

Passive Infrared

Detection Range

12m

Detection Angle

360°

Detection Zones

172

Detectable Speed

0.3 ? 2m/s

Sensitivity

Auto,Low

White Light Filter

6500lux

Digital Temperatures

Compensation

Support

Creep Zone Protection

Support

Features

Digital Processing

Support

Sealed Optics

Support

Tamper Protection

Front

Hardware features

Alarm output

Normally Closed

Interface

LED Indicator

Blue(Alarm)

Electrical characteristics

Power consumption

13mA Max

Electrical Characteristics

Power Supply

9 to 16 VDC

Typical Voltage

12 VDC

General

Operation Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Storage Temperatures

-20 °C to 60 °C (-4 °F to 140 °F)

Operation Humidity

10% to 90%

Dimension(WxHxD)

φ101.2mm x 32.9mm

Weight

79g

Mounting Height

2.4 to 4m

Mounting Method

Ceiling

Application Scenario

Indoors

AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog article !

AXPRO SYSTEM - BEYOND SAFETY

AXPro is the new intelligent and professional wireless system with latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as Video Surveillance, Video Intercom and Access Control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both a professional audience and end users.

axpro hikvision alarm system

Intruder Verification

Intruder Verification is the HD video alarm service that manages video verification from any Hikvision IP camera. It provides the recording of a 7-second video clip containing pre and post event which is sent from the control panel buffer or via the NVR/IP Camera archive. The end user will be able to access the video and live camera feed directly from the HikConnect APP.



Simple and intuitive programming

Thanks to the Hik-ProConnect software dedicated to the installer and available both on the portal and in the APP version, configuring the system will be extremely simple. The control unit immediately recognizes radio devices via the Hik-ProConnect APP thanks to scanning via QR Code. Manual activities and installation times are significantly optimized. After configuring the detectors and accessories, it will be possible to proceed with programming their parameters and delivering the system to the user.



Management via APP: Hik-ProConnect and Hik-Connect

The AXPro Hikvision alarms are compatible with the Official Hikvision APPs Hik-ProConnect , dedicated to installers and Hik-Connect , for end users.

Hik-ProConnect: cloud platform designed specifically for installers.
- Optimization of times
- Adding devices remotely or on site
- Simplified programming
- Creation of specific rules for the system
- Remote monitoring of the system
- Identification of any malfunctions and immediate resolution
- Sending automatic reports
- Reduction of visits to the plant and increase in efficiency

Hik-ProConnect: cloud platform designed specifically for end users.
- Complete management of all Hikvision devices/products
- View of the system status
- Arming/disarming the alarm
- Receive alarm notifications wherever you are
- Monitoring the status of each individual device [signal level, battery status, ambient temperature]

Downloads

Download the brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
