DAHUA 4MP ONVIF® MINI IP CAMERA - 2.8MM LENS - POE - VIDEO ANALYSIS AND AUDIO - MICROPHONE - IPC-HUM4431S1-L4

Prodotto Marca Dahua

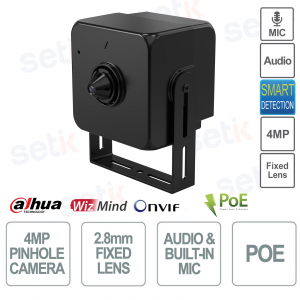

Dahua ONVIF® PoE Mini IP Camera - IPC-HUM4431S1-L4
4MP Resolution - 2.8mm Pinhole Lens - 1/2.7" CMOS Sensor
BLC / HLC / / AGC / 3DNR / WDR 120dB - Video Analysis: Intrusion and Tripwire - Audio (1 input/1 output) - micro SD 256G (not included) - Microphone - Event alarm - Metal body.
Small size - ideal for hiding anywhere!

Product details

IPC-HUM4431S1-L4
  • Dahua ONVIF® PoE Mini IP Camera - IPC-HUM4431S1-L4
  • 2.8mm fixed pinhole lens
  • 1/2.7" 4MP CMOS sensor
  • 4MP resolution equal to 2688 (H) × 1520 (V)
  • Double Stream
  • Video compression up to H.265+
  • BLC / HLC / WDR 120dB / 3DNR / Mirror Mode / Privacy Masking
  • Video Analysis: Line Crossing, Intrusion
  • Motion Detection - ROI (Region of interest)
  • Audio: 1 input + 1 audio output
  • Built-in microphone
  • Alarm 2 inputs + 1 output
  • 256G micro SD (not included)
  • Remote viewing with Dahua DMSS application
  • Without IR illuminator
  • Small size! : 67.5 mm × 53.4 mm × 48.2 mm
  • Low weight, equal to 155g

Technical data sheet

1 channel out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC
IPC-HUM4431S1-L4

Technical Specification

Room

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)

S/N Ratio

>56 dB

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Openings

F2.0

Field of View

Horizontal: 100°; Vertical: 57°; Diagonal: 114°

Iris Control

Fixed

Power

Power Supply

12 VDC, PoE (802.3af)

Power Consumption

Basic: 1.7W (12VDC); 2.7W (PoE)
Max.(H.265 + WDR): 2.1 W (12 VDC); 3.5W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Structure

Casing

Metal

Product Dimensions

67.5 mm × 53.4 mm × 48.2 mm (2.66" × 2.1" × 1.9") (L × W × H)

Net Weight

155 g (0.34 lb)

Gross Weight

190 g (0.42 lb)

Further details

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a stand-alone camera that can never be used with recording systems.
PoE power supply The advantage of a PoE camera is clear, it allows it to be powered with the same cable with which it communicates without running additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

This camera is suitable for indoor environments ! - Does not have IP66 protection

Questa telecamera ha una risoluzione 2Mpx 1920x1080

This camera features a resolution of 4MP
1/3” 2Megapixel 4MP CMOS image sensor

Resolution 2688 (H) × 1520 (V)

Ottica fissa 3.6mm 2.8mm PINHOLE fixed optics

Obiettivo Pinhole da 3.6mm

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is an optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

This camera features SMART DETECTION:
- Line crossing recognition
- Intrusion recognition


Full HD

Remote visibility on mobile using Dahua's DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when working in high-contrast light/shadow conditions. It's essential when shooting from inside to outside, license plates, shadowed areas, or any situation where there's uneven lighting.

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a reasonable adaptation to these situations.

Funzione ROI This camera has ROI function.

Images from IP cameras are compressed, so the quality is set during recording. Especially with very high-resolution cameras, it's often necessary to reduce the quality to ensure less bandwidth usage and record a greater number of days or cameras.
The ROI allows you to define areas where you want to set a higher quality (for example, a door, the area where the license plate usually passes, an exit, etc.). In that area, I can set a higher quality , thus ensuring a higher image definition.
Ultra Smart Funzione ROI
This camera has an onboard microphone

Microphone on board!

Two-way audio

Alarm Input / Output

1 AUDIO input and 1 AUDIO output
2 inputs and 1 ALARM output
Italian Guarantee Icon This product is covered by a 24 month warranty.
