Dahua 2MP Pinhole IP Camera with Starlight and AI Intelligence

Dahua 2MP Pinhole IP Camera with Starlight and AI Intelligence

-58%

IPC-HUM4231S-L4-S3 is a 2MP pinhole IP camera ideal for discreet video surveillance in environments such as ATMs and shops. Equipped with a 1/3" CMOS sensor and 2.8mm fixed lens, it offers Full HD images with Starlight technology for advanced night vision. It supports H.265+/H.264+ compression and intelligent functions such as intrusion and crossing detection. It guarantees clear videos even in high-contrast environments thanks to 120dB WDR and 3D NR. Includes integrated microphone for two-way audio. ONVIF compatible and remotely manageable via DMSS app. 12V DC power supply. Dahua

Technical Data Sheet

Reference: IPC-HUM4231S-L4-S3

Brand: Dahua

EAN: 6923172536563

Disponibilità: 18

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

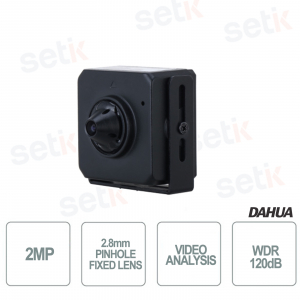

IPC-HUM4231S-L4-S3 | 2.8mm 2MP IP PINHOLE CAMERA


Dahua

The Dahua IPC-HUM4231S-L4-S3 is a 2MP pinhole IP micro camera designed for discreet video surveillance applications in indoor environments such as banks, shops and ATMs. Equipped with a 1/3" CMOS sensor and a 2.8mm fixed lens, it offers Full HD 1080p resolution at 25/30 fps, ensuring clear images even in low light conditions thanks to Starlight technology. It supports H.265+/H.264+ video compression for efficient storage space management. Intelligent features include intrusion and line crossing detection, while 120dB WDR and 3D NR technologies ensure superior image quality in environments with strong light contrasts. The camera has two-way audio with built-in microphone and supports 12V DC power supply. It is compatible with ONVIF protocols and can be managed via the DMSS app for efficient remote control.

Main specifications:

- 2.8mm optics: wide viewing angle for detailed and discreet shots

- 2MP Full HD resolution: clear images even in difficult conditions

- Starlight technology: clear vision in low-light environments

- Smart video analytics: intrusion detection, line crossing and motion detection

- Audio and ONVIF compatibility: integrated microphone and remote management via app

Further details

Optics:
2.8mm fixed lens offers a wide field of view, perfect for close-up and covert video surveillance.
2MP Resolution (FullHD):
It ensures clear and detailed images at all times.
Starlight Technology :
It ensures clear vision even in low-light environments, making it ideal for 24-hour use.

Intelligent Monitoring:
Supports intrusion detection and tripwire for proactive protection.

IPC-HUM4231S-L4-S3_DIMENSIONS

Technical data sheet

Model IPC-HUM4231S-L4-S3
Image Sensor 1/3" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM/RAM 128 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
Y/N Ratio >56dB
lens
Lens Type Fixed focal
Lens Mount M12
Focal Length 2.8mm
Max. Openings F2.0
Field of View Horizontal: 96°; Vertical: 55°; Diagonal: 110°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
Smart Event
IVS intrusion; tripwire
Video
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 1920 × 1080 @(1–25/30 fps ) sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1920×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240)
Bitrate Control CBR/VBR
Video Bitrate H.264: 3kbps–6144kbps
H.265: 3kbps–6144kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120dB
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080P resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception
Network
Network Port RJ-45 (10/100Base-T)
SDK and API Yes
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Good morning
Interoperability ONVIF® (Profile S/Profile T); CGI; P2P; Milestones
User/Host 20 (Total bandwidth: 48M)
Storage FTP; SFTP; NAS
Browser IE Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Environment
Power Supply 12VDC
Power Consumption Basic: 1.2 W (12 VDC) Max. (H.265 + intelligence on + WDR): 1.56 W (12 VDC)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Casing Metal
Product Dimensions 31.0 mm × 31.0 mm × 30.0 mm (1.22" × 1.22" × 1.18")
Net Weight 81g (0.18 lb)
Gross Weight 138g (0.30 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
