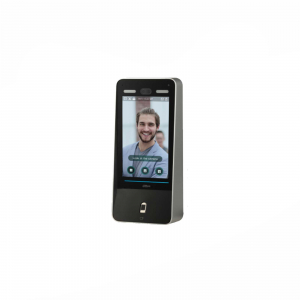

Dahua ASI8214Y-V3 Access control terminal and presence detection, with facial recognition and fingerprints . 10.1 "TFT display 1280x800 touch screen with 2MP wide angle dual lens , RFID IC CARD reader , 100,000 users, 100,000 cards, 100,000 passwords, 10,000 fingerprints. User data can be stored at the access controller; can hold 100 , 000 face images and work without network. RS232, RS485 / Wiegand, 1 USB 2.0, 2 Alarm Inputs / 2 Alarm Outputs, Door open button. Ideal for both indoor and outdoor. Dahua Technology
DAHUA: LOSS LEADER×
 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>
Description Product Details Data Sheet Further Details Download
ASI8214Y-V3 DAHUA | BIOMETRIC READER FACE RECOGNITION / FINGERPRINT / IC CARD

 MAIN FEATURES:
- 10.1 "TFT touchscreen display, 1280x800 resolution
 - With dual 2MP wide angle lens, white fill light, IR light and WDR light
 - It can register human faces, cards, passwords, fingerprints
 - Distance for face recognition: 0.3m-2m
 - Facial recognition accuracy rate: 99.5% - facial recognition speed: ≤0.2 seconds per person - low rate of facial recognition errors
 - User data can be stored at the access controller; it can hold 100, 000 face images and work without network
 - It supports up to 100,000 users, 100,000 cards, 100,000 passwords, 10,000 fingerprints
 - It supports the following alarms: coercion, tampering, intrusion, timeout and use of illegal cards
 - Aluminum alloy case with drawing treatment; IP65; applicable to the external and internal environment
 - Dimensions: 396.9mm × 185.6mm × 77.2mm

Data sheet
| ASI8214Y-V3 | |
| System | |
| Main Processor | Embedded Processor |
| Internet Protocol | IPv4, RTSP, RTP, TCP, UDP, P2P |
| OSDP Protocol | Yes |
|
 Interoperability  |
 CGI  |
| SDK | Support SDK |
| Basic | |
| Display | 10.1 inch TFT screen |
| Screen Type | Capacitive touch screen |
| Screen Resolution | 1280x800 |
| Room | 2MP CMOS |
| WDR | 120dB |
| Light Compensation |
 Auto whitelight fill light Auto IR fill light  |
| Status Indicator Light | 1 indicator lights. Red: Recognition failed; Green: Recognition succeeded; Blue: Standby mode |
| Voice Prompt | Yes |
| Housing Material | PC + ABS; Aluminum alloy frame |
| Function | |
| Unlock Mode | Card / Password / Fingerprint / Face unlock Card, password, fingerprint, and face combination unlock |
| Card Reading Type | IC Card |
| Period List | 128 |
| Holiday Period | 128 |
| First-Card Unlock | Support |
| Remote Verification | Support |
| Peripheral Card Reader | 1 RS-485 and 1 Wiegand |
| Multiple Card Authentication | Support |
| Real-Time Surveillance | Support |
| Web Configuration | Support |
| Card reading distance | 1cm-4cm |
| Face Recognition Range | Face-camera distance: 0.3 m – 2.0 m Human height: 0.9 m – 2.4 m |
| Face Verification Accuracy | ≥99.5% |
| Face Recognition Speed | 0.2s |
| Fingerprint Sensor Type | Capacitance |
| Fingerprint Verification Mode | 1: No. |
| Fingerprint Comparison Time | ≤1.5S |
| Capacity | |
| User Amount | 100,000 |
| Face Amount | 100,000 |
| Fingerprint Amount | 10, 000 |
| Card Amount | 100,000 |
| Password Amount | 100,000 |
| Storage Record Amount | 100,000 |
| Port | |
| RS-485 | 1 |
| RS-232 | 1 |
| Wiegand | 1 (26, 34, 66) |
| USB | 1 USB2.0 port |
| Ethernet | 1 10M / 100M Ethernet Port |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Linkage | Support |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-Passback | Support |
| Tamper Alarm | Support |
| Duress | Support |
| Door Sensor Timeout | Support |
| Illegal Intrusion | Support |
| Illegal Card Exceeding Threshold  |
Support |
| Duress Fingerprint | Support |
| General | |
| Power Supply | DC 12V 2A |
| Ingress Protection | IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Power Consumption | ≤24W |
| Dimensions | 396.9mm × 185.6mm × 77.2mm |
| Operating Temperature | 30 ° C to + 50 ° C |
| Operating Humidity | 5% RH – 95% RH |
| Working Environment | Indoor and outdoor |
| Gross Weight | 4.32 kg |
| Installation Method | Wall mount |
