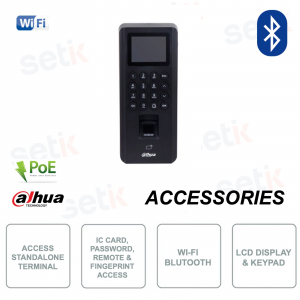

DAHUA - ASI2212J-PW - INDEPENDENT ACCESS CONTROL TERMINAL - FOR SINGLE DOOR RELEASE - BLUTOOTH POE WIFI - RELEASE WITH PASSWORD, FINGERPRINT, IC CARD, REMOTE

Product details

- Access control terminal - Standalone - Dahua - ASI2212J-PW
 - Bluetooth
 - Integrated 2.4 inch LCD display
 - Backlit keypad
 - Control 1 port
 - PoE supported
 - TCP/IP and WiFi
 - Wireless Protocol: IEEE802.11b/802.11g/802.11n
 - Wireless Frequency: 2.4Ghz
 - Unlock by IC Card swipe, Remote, Fingerprint or password
 - Capacity: 30,000 users, 5,000 fingerprints, 30,000 IC cards, 30,000 passwords, 100,000 records
 - It supports Wiegand and RS-485
 - 2in/2out alarm
 - Anti-tamper tamper
 - Support card, password, fingerprint and combination
 - 2in/2out alarm
 - Doorbell
 - Updatable online or via USB
 - Door time out alarm, intrusion alarm, and tamper alarm, Anti-passback
 - Dimensions: 205mm × 86mm × 30mm
 - Weight: 0.45kg
 - For wall installation
 - Power Supply: Standard PoE / 12 VDC
 - Operating temperature: –10 °C to +55 °C
 - Power supply: optional
 - Made of polycarbonate and ABS

Data sheet
| ASI2212J-PW | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor  | Embedded Processor  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ButtonType  | Mechanical  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NetworkProtocol  | UDP; TCP; IPv4; P2P  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSDP Protocol  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability  | CGI; ONVIF  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDKs and APIs  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ProductType  | Stand alone  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Screen  | 2.4"LCD  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ScreenType  | LCDs  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Resolution  | 240(H)×320(V)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Voice prompts  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backlights  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing material  | PC+ABS  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Verification Method  | Configuration of card, remote, password, fingerprint combination unlock and multi-user combination unlock.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
UnlockMode  | Card, remote, password, fingerprint combination unlock and multi-user combination unlock.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CardType  | Mifare cards (IC cards)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Period List  | 128 periods  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Holiday period  | 128 periods  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Update  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  | –10°C to +55°C (+14°F to +131°F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity  | 0%–95% (RH), non-condensing  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude  | 0m–3,000m (0ft–9842.52ft)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
operating environment  | indoors  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | 0.45kg (0.99lb)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation  | Surface Mount  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  | THERE IS; FCC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Angle  | straight  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
![]()  | This terminal is STANDALONE . This means that it is autonomous, able to manage functions without having to integrate other devices.  |
![]()  | Equipped with 2.4" LCD display with blue backlight  |
![]()  | 32BIT processor with 16MB of memory  |
 ![]()
  |  Autonomous biometric terminal with touch keyboard and identification via:  - Combination  |
![]() ![]()  | Communication via TCP/IP (RJ45 100M), RS485 or Wiegand  |
  | Up to 5,000 fingerprints , 30,000 users, 30,000 cards, 30,000 passwords, 100,000 events  |
This product is covered by a 24 month guarantee.  |
