Dahua SG4006P is a 6-port Managed PoE network switch: Port 1-4: Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) - Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) - Layer 2 - MAC Table Size 8K - Packet Buffer 4Mbit - Switching Capacity 12Gbps - Switch Power Capacity 60W - Dimensions 130 mm × 90 mm × 26 mm.
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

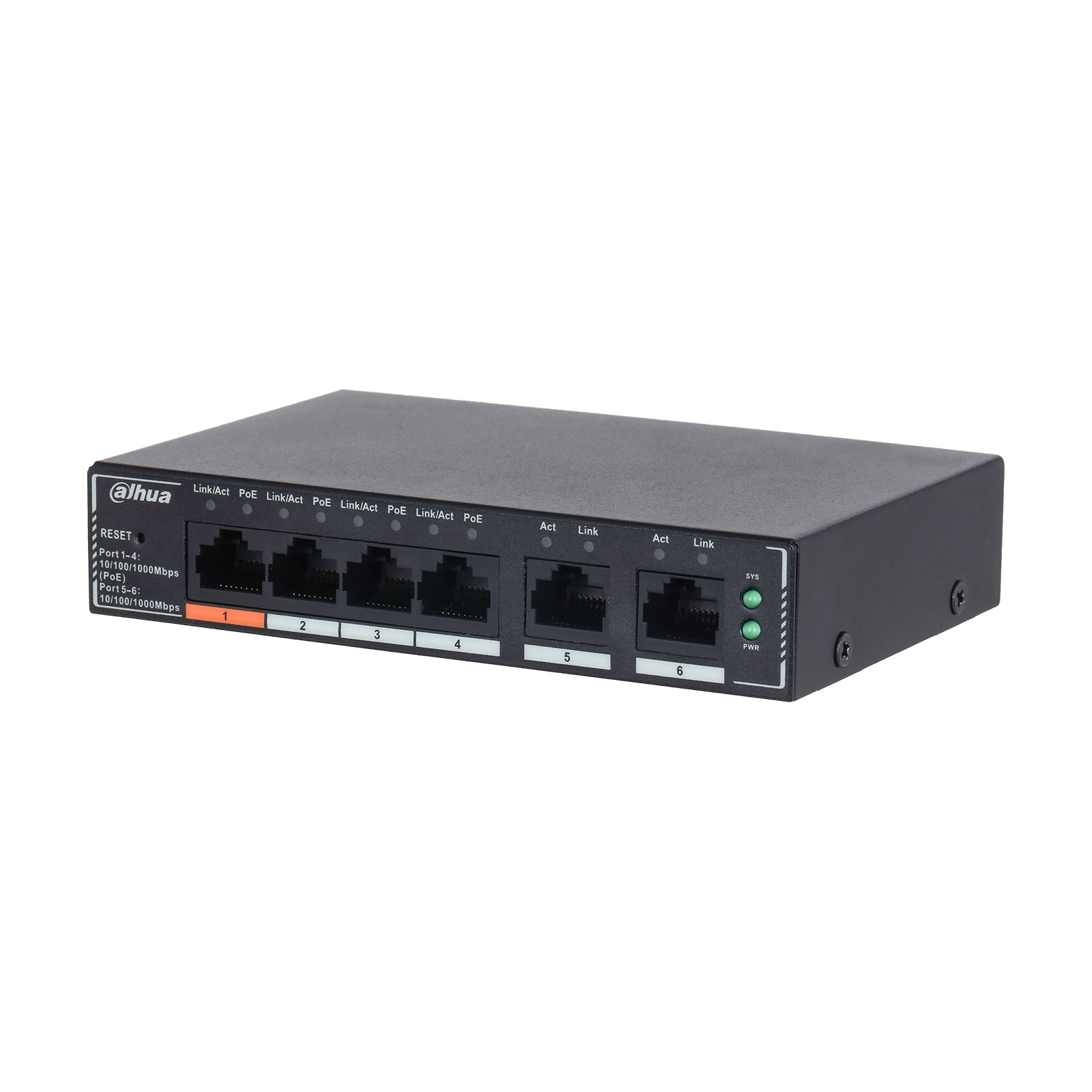

POE NETWORK SWITCH WITH 6 PoE PORTS - DAHUA - SG4006P

Managed PoE network switch with 6 ports: Port 1-4: Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) - Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) - Layer 2 - MAC Table Size 8K - Packet Buffer 4Mbit - Switching Capacity 12Gbps - Switch power capacity 60W - Dimensions 130 mm × 90 mm × 26 mm.

- Network Switch - Dahua - SG4006P
- 6 Ports: 4 × RJ-45 10/100/1000 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (uplink)
- Managed
- Layers 2
- Packet buffer size 4 Mbits
- MAC Table Size 8K
- 12Gbps switching capacity
- PoE Power 60W
- Size: 130mm × 90mm × 26mm
- Product net weight: 0.29 kg
- Supported operating temperature: –10 °C to +55 °C
Technical data sheet
Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Layer | Layer 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity | 12 Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate | 8.93 Mpps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Description of Function Slots | Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 5% –95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | 5%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Idling: ≤2.5W ; Full load: 65W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | External power supply: 53 VDC, 1,226 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.29 kg (0.64 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.94 kg (2.07 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | Sheet metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Desktop mount; wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | THERE IS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power | Port 1 ≤ 60W, Port 2-4 ≤ 30W, total ≤ 60W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power Consumption Management | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Pin Assignment | 1,2,4,5(V+),3,6,7,8(V-) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Long Distance PoE Transmission | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hardware | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reset Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF | 222.36 years | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Size | 4 Mbit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Jumbo Frame | 15K Bytes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Table Size | 8K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Number | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Feature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Loop Protection | STP/RSTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Function | Port-based VLAN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Link Aggregation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DHCP Function | DHCP Client | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Equipment Management | Web management; App management | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing List | Quick Start Guide × 1; Legal and Regulatory Information × 1; Power adapter × 1; Power cord × 1 |
