Unmanaged Gigabit Switch - 8 ports 2.5G RJ-45 - Dahua

Unmanaged Gigabit Switch - 8 ports 2.5G RJ-45 - Dahua
-58% New

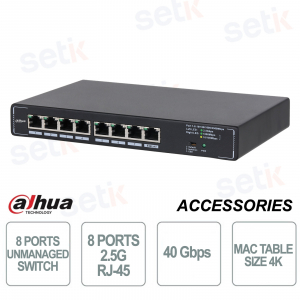

Dahua SMG1008 is a Gigabit unmanaged network switch with 8 RJ-45 10/100/1000/2500 Mbps ports - MAC Table Size 4K - Packet Buffer Memory 8 Mbit - Switching Capacity 40 Gbps - Lightning proof 2kV - Dimensions 220 mm × 141 mm × 30 mm



Reference: SMG1008

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

8-PORT UNMANAGED NETWORK SWITCH + THUNDERPROOF 2KV - DAHUA - SMG1008

Dahua Technology
5-Port Network Switch - Dahua - SMG1008
8 × RJ-45 10/100/1000/2500 Mbps - not manageable. MAC Table Size 4K - Packet Buffer 8 Mbit - Switching Capacity 40Gbps - Power Consumption at idle: ≤ 1.9 W; full load: 8.09 W - Lightning Protection 2kV - Dimensions 220 mm × 141 mm × 30 mm
Product details
SMG1008
  • Network Switch - Dahua - SMG1008
  • 8 Ports: 5 × RJ-45 10/100/1000/2500 Mbps
  • Not Managed
  • Packet buffer size 8 Mbit
  • MAC Table Size 4K
  • 40Gbps switching capacity
  • Lightning protection: 4kV Common / 2kV Differential
  • Dimensions: 220mm × 141mm × 30mm
  • Weight: 0.73 kg
  • Supported operating temperature:–10°C to +55°C

Technical data sheet

Model SMG1008
Basic
Layer Unmanaged
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.76 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000/2500 Mbps
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 12 VDC, max 2 A
Power Consumption Idling: ≤1.9W ; Full load: 8.09W
Statics Protection Air discharge: 8 kV; Contact discharge: 6 kV
Lightning Protection Common mode: 4 kV; Differential mode: 2 kV
Net Weight 0.73 kg (1.61 lb)
Gross Weight 0.942 kg (2.07 lb)
Product Dimensions 220 mm × 141 mm × 30 mm (8.66" × 5.55" × 1.18") (L × W × H)
Packaging Dimensions 297 mm × 163 mm × 71 mm (11.69" × 6.41" × 2.79") (L × W × H)
Casing Material Metal
Installation Desktop mount; rack mount
Certifications THERE IS
PoE
PoE No
Hardware
DIP Switch Default: Default setting
Post isolation: Prevents traffic from being sent between ports 1-4, but allows ports 1-4 to send its traffic to the uplink ports 5. These uplink ports can also send their traffic to 1-4.
EEE: Energy Efficient Ethernet (EEE) function.
Performance
Packet Buffer Memory 8 Mbit
Jumbo Frame 12K Bytes
MAC Table Size 4K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3ae
General
Packing List 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Power Adapter; 1 × Mounting Kit;

Further details

SMG1005 dimensions
