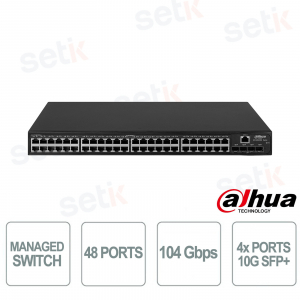

Dahua AS5600-48GF4XF-V2 Switch | 52 L3 Ports with 10G Uplink and Enterprise Performance

Dahua AS5600-48GF4XF-V2 Switch | 52 L3 Ports with 10G Uplink and Enterprise Performance

-57% New

AS5600-48GF4XF-V2 - is an enterprise L3 switch with a total of 52 ports , consisting of 48 Gigabit SFP ports and 4 10G SFP+ uplinks , ideal for high-density networks and complex scenarios. Thanks to the support of IRF2 Intelligent Resilient Framework , it allows stacking over long distances with redundancy and service continuity. It integrates advanced L2 and L3 routing features such as VLAN, STP/RSTP/MSTP, OSPF and BGP, offering maximum network stability and security. With a switching capacity of 598 Gbps and a forwarding rate of 222 Mpps , it ensures high performance for companies, public institutions and digital infrastructures. Management is simple and complete via web interface, CLI, console and SNMP , ensuring centralized control and ease of maintenance. Dahua

Technical Data Sheet

Reference: AS5600-48GF4XF-V2

Brand: Dahua

EAN: 6939554941795

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

AS5600-48GF4XF-V2 | GIGABIT MANAGED SWITCH 52 PORTS - 4 PORTS 10G SFP


Dahua

The Dahua AS5600-48GF4XF-V2 is a high-performance enterprise L3 switch with 52 total ports, including 48 Gigabit SFP ports, 2 RJ-45/SFP combos, and 4 10G SFP+ uplinks, designed for complex networks and aggregation scenarios. Equipped with the IRF2 Intelligent Resilient Framework, it ensures scalability and redundancy even over long distances. With a switching capacity of 598 Gbps and a forwarding rate of 222 Mpps, it guarantees high performance, stability, and security, supporting L2 and L3 protocols such as VLAN, STP, OSPF, and BGP. Management is simplified via a web interface, CLI, console, and SNMP, making it ideal for businesses, public institutions, and advanced digital infrastructures.

Main specifications:

- 52 total ports (48 SFP Gigabit, 2 RJ-45/SFP combo, 4 10G SFP+ uplinks)

- 10G uplink support for high-capacity networks

- IRF2 technology for resilient and scalable stacking

- Switching capacity 598 Gbps and forwarding rate 222 Mpps

- Advanced L2/L3 features (VLAN, STP, OSPF, BGP)

Further details

Number of doors:
The switch features 52 total ports , including 48 Gigabit (100/1000 Mbps) SFP ports, 2 Gigabit RJ-45/SFP combo ports , and 4 1/10 Gbps SFP+ uplinks , providing high port density and flexibility for large enterprise networks.
10G Uplink:
The 4x 10 Gigabit SFP+ uplink ports ensure smooth transmission of large volumes of data, making it ideal for aggregation scenarios and high-speed backbone connections.
Intelligent Resilient Framework 2 (IRF2):
IRF2 stacking technology allows multiple switches to be connected together over long distances, even kilometers, improving scalability, redundancy, and service continuity.
Green and Fan-less Design :
IRF2 technology allows multiple switches to be connected together even over long distances (hundreds of meters or several kilometers), improving scalability, redundancy and network service continuity.
Performance :
With a switching capacity of 598 Gbps and a packet forwarding rate of 222 Mpps , 1.5 MB × 2 buffer and support for Jumbo Frames up to 10 KB , it ensures high and reliable performance for enterprise networks and critical infrastructures.

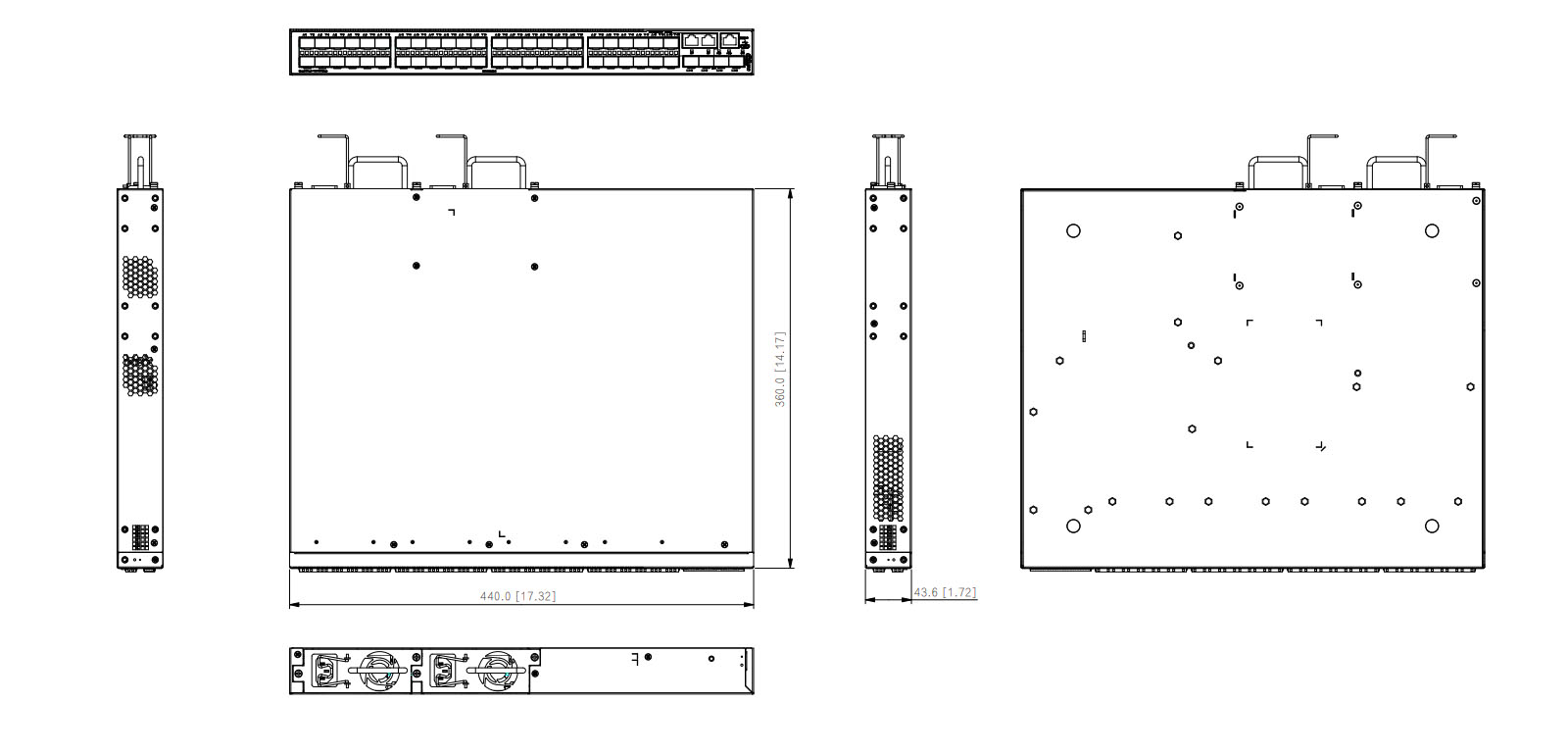

AS5600-48GF4XF-V2 dimensions

Technical data sheet

Model AS5600-48GF4XF-V2
Hardware
Power Adapter Included

Yes

PoE

No

Ethernet Port

2

Optical Port

48

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1/10 Gbps

Description of Function Slots

Port 1-48: 48 × SFP 100/1000 Mbps;
Port 47-48: 2 × RJ-45 10/100/1000 Mbps (Combo);
Port 49-52: 4 × SFP+ 1/10 Gbps

Management port

1 × Console port
1 × Micro USB

Power Supply

Built-in power: 100–240 VAC, 50/60 Hz, 2.5 A

Operating Temperature

–5 °C to +45 °C (+23 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Fanless Design

5.3 kg (11.68 lb)

Power Consumption

Idling: 21 W
Full load: 47 W

Performance

Layer

Layer 3

Management Type

Yes

MTBF

153.41 years

Switching Capacity

598 Gbps

Packet Forwarding Rate

222 Mpps

Packet Buffer Size

1.5 MB × 2

Jumbo Frame

10K Bytes

MAC Table Size

16K

VLAN Number

4K

VLAN Interface

1K

IPv4 Routes

12K

Dynamic ARP

4K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae

Feature

Ethernet Loop Protection

STP/RSTP/MSTP
PVST
RRPP

Routing

Static routing
IPV6 unitcast routing
RIPv1/v2/ng
OSPFv2/v3
IS-ISv4/v6
BGP4/4+
ECMP
Policy-based routing

VLAN Function Port-based VLAN
MAC-based VLAN
Protocol-based VLAN;
Subnet-based VLAN;
QinQ, flexible QinQ;
VLAN Mapping;
Voice VLAN;
MVRP
Link Aggregation Static link aggregation
Dynamic link aggregation
Cross-device link aggregaton;
Gigabit Ethernet port aggregation;
10 gigabit Ethernet port aggregation
IEEE 802.3x Flow Control Yes
Multicast IGMP Snooping v1/v2/v3;
PIM Snooping Multcast VLAN;
IGMP v1/v2/v3;
PIM-DM, PIM-SM, PIM-SSM;
MSDP
Reliability IRF
VRRP
DLDP
LLDP
ARP ARP source suppression
Dynamic ARP source detection
ARP anti-attack
DHCP Function DHCP Client
DHCP Snooping;
DHCP Relay
DHCP Server;
DHCP Snooping opton82;
DHCP Relay opton82;
DHCP Snooping Trust;
DHCP Snooping entry backup
Security Multi-level user management and password protection;
802.1X;
RADIUS;
SSH 2.0;
Port isolation
HWTACACS;
IP/Port/MAC binding
IP Source Guard;
HTTPS;
Triple
QoS/ACL Flexible queue scheduling algorithm includes SP, WRR, and SP+WRR (can be set based on the port and queue at the same time)
Two-way ACL policy (in and out)
IPv6 ICMP v6;
TRACEROUTE V6;
TELNET V6;
SSH2 V6;
ND/ND snooping/ND proxy/ND detect;
SAVI;
IPV6 PORTAL;
PMTU;
DNS CLINET FOR IPV6;
SNMP FOR IPV6;
RIPng/OSPF V3/IS-ISv6/BGP4+;
IPV6 policy-based routing;
MLD SNOOPING v1/v2;
IPv6 PIM DM/PIM SM/PIM SSM;
VRRP V3;
DHCPv6 snooping/DHCPv6 ;client/DHCPv6 relay/DHCPv6 server; IPv6 port binding;
BFD for IPV6
(statc routing, OSFPv3, BGP+)
Equipment Management Load update files and update using FTP/TFTP;
Configure through CLI, Telnet, Console port;
SNMPv1/v2/v3;
System logs, multi-level alarms, and debug information;
Ping and Tracert
NTPPower supply, fan, and temperature alarms;
Ping and Tracert;
LLDP
Port loopback detection
General
Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Surge: 6 kV

Net Weight <8.5 kg="" 18="" 74="" lb="" td="">
Product Dimensions

440 mm × 360 mm × 43.6 mm (17.32" × 14.17" × 1.72") (L × W × H)

Packaging Dimensions

562 mm × 550 mm × 125 mm (22.13" × 21.65" × 4.92") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; rack mount

Certifications

CE; FCC
