Dahua S10506: High-Performance 40GE Core Switch for Secure and Scalable Enterprise Networks

Dahua S10506: High-Performance 40GE Core Switch for Secure and Scalable Enterprise Networks

-57% New

S10506 - is a high-performance modular core switch designed for reliable and scalable enterprise networks. Compliant with 40GE Ethernet standards, it supports advanced virtualization , hardware protection with MACsec , and IPv4/IPv6 management. Thanks to the Virtual Stack , it ensures high availability, load balancing, and service continuity. It includes advanced QoS, multi-level security with AAA authentication, SSH, IP Source Guard, and ARP protection. Easy to manage with multiple interfaces, traffic monitoring, and redundant power supply to ensure network uptime and stability. Ideal for modern infrastructures that require speed, reliability, and total control. Dahua

Technical Data Sheet

Reference: S10506

Brand: Dahua

EAN: 6923172569752

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

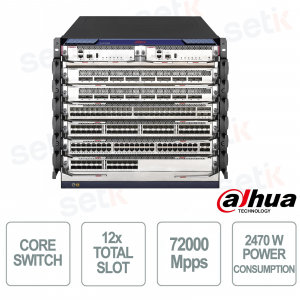

S10506 | CORE SWITCH 12 SLOT - 40GE


Dahua

The Dahua S10506 is a next-generation modular core switch designed to ensure high performance, advanced security, and maximum reliability in enterprise networks. Compatible with 40GE Ethernet standards, it supports virtualization technologies, IPv4/IPv6 management, and MACsec hardware encryption. Thanks to its scalable design and power redundancy, it ensures business continuity and simplifies network infrastructure management.

Main specifications:

- Switching capacity up to 384 Tbps and forwarding rate of 72,000 Mpps

- Virtual Stack for high availability and centralized management

- Advanced security with AAA, SSH, IP Source Guard, ARP protection

- Extensive QoS support and network traffic monitoring

- Redundant power supply and hot-swap support for continuity of service

Further details

Slots:
This modular switch features 12 total slots , including 2 for Supervisor Engine Modules , 6 for Line Cards , and 4 for Switch Fabric Cards . This configuration allows you to easily expand capacity and customize the network to meet your business needs while maintaining maximum performance and flexibility .
Virtual Stack:
The Virtual Stack feature allows multiple switches to be combined into a single logical system. This achieves high availability through data backup and continuous forwarding, eliminating single points of failure. It also offers multi-chassis link aggregation , which improves redundancy and optimizes link utilization, while centralized management via a single IP address simplifies network control and reduces operating costs .
Abundant QoS Features:
The S10506 includes advanced QoS features to ensure critical traffic prioritization and stable performance. It supports layer 2-4 packet field-based filters (MAC, IP, TCP/UDP, VLAN) and flexible scheduling algorithms such as Strict Priority (SP) , Weighted Round Robin (WRR) , and SP+WRR combinations. Additionally, port mirroring enables effective network monitoring and troubleshooting .
Outstanding Management Capacity :
The switch offers high management capacity with multiple dedicated ports (console, USB, out-of-band Ethernet) and advanced tools for traffic analysis and real-time monitoring . Thanks to local and remote Layer 2 mirroring, you can collect data to optimize network resources, generate detailed reports and maintain high operational efficiency. Redundant power supplies ensure service continuity even in the event of a module failure .
Performance :
The S10506 delivers exceptional performance with up to 384 Tbps switching capacity and a packet forwarding rate of 72,000 Mpps , supporting large traffic volumes without packet loss. It features a 498K-entry MAC table, up to 4094 VLANs , IPv4/IPv6 support, jumbo packets up to 13,312 bytes, and advanced security features such as Dynamic ARP Inspection , uRPF , and AAA/SSH secure authentication.
S10506 dimensions

Technical data sheet

Model S10506
Hardware
PoE

No

Total Slots

12

Supervisor Engine Module

2

Line Card

6

Switch Fabric Card

4

Debugging

1 × Console port
1 × USB port
1 × RJ-45 port
1 × SFP port

Hot Plug

Yes

Power Supply

4 × Power supply, 100-240 VAC, 50/60 Hz

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Full load: 2470 W

Performance

Layer

Layer 3

Management Type

Yes

Switching Capacity

384 Tbps

Packet Forwarding Rate

72000 Mpps

Packet Buffer Size

288 Mbit

Jumbo Frame

13312 Bytes

MAC Table Size

498K

VLAN Number

4094

VLAN Interface

4094

IPv4 Routes

512K

Dynamic ARP

88K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3ab; IEEE802.3z; IEEE802.3x

Feature

Ethernet Loop Protection

STP/RSTP/MSTP/ERPS/PVST

VLAN Function Yes
Link Aggregation Static link aggregation
Dynamic link aggregation
Multi-chassis link aggregation
IEEE 802.3x Flow Control IEEE 802.3x flow control
Priority-based flow control
Multicast IGMPv1/v2/v3
IGMP Snooping v1/v2/v3;
PIM-SM/PIM-DM/PIM-SSM
MSDP
Reliability virtual stack
VRRP
DLDP
ARP ARP
Dynamic ARP source detection
ARP anti-attack
ARP source suppression
ARP Detection
DHCP Function DHCP Client
DHCP Snooping;
DHCP Relay
DHCP Server;
Security Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
HWTACACS;
SSH2.0
Port security
IP Source Guard;
802.1X authentication and centralized MAC address authentication
Portal authentication
DHCP snooping
Dynamic ARP detection
BPDU guard and root guard
uRPF
IP/Port/MAC binding
Plaintext authentication and MD5 authentication for OSPF and RIPv2 packets
Public Key Infrastructure (PKI)
QoS/ACL QoS/ACL
IPv6 Yes
Equipment Management FTP; TFTP; Xmodem
SNMPv1/v2/v3;
RMON
General
Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV
Differential mode: 1 kV

Product Dimensions

440 mm × 520 mm × 442 mm (17.32" × 20.47" × 17.40") (L × W × H)

Packaging Dimensions

795 mm × 690 mm × 615 mm (31.30" × 27.17" × 24.21") (L × W × H)

Installation

Rack mount

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
