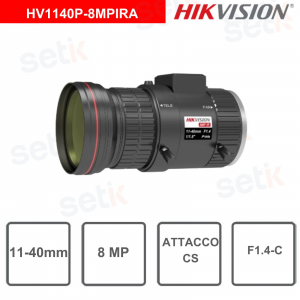

Surveillance Camera Lens - Varifocal 11-40mm

Surveillance Camera Lens - Varifocal 11-40mm

IN PROMOTION -35%

HIKVISION | HV1140P-8MPIRA |

Ideal lens for video surveillance cameras - 11-40mm varifocal lens - 8MP resolution - 1/1.8" sensor - P-Iris - Manual zoom and focus - F1.4-C - CS mount - MOD 0.1m - 8MP IR constant aperture - High quality product.

Reference: HV1140P-8MPIRA

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


HV1140P-8MPIRA | HIKVISION | CCTV CAMERA LENS - VARIFOCAL 11-40MM - 8MP RESOLUTION

Made by Hikvision
11-40mm Varifocal Lens - 8MP - HIKVISION - HV1140P-8MPIRA
11-40mm varifocal lens - 1/1.8" sensor, 9mm diameter - 8MP resolution - CS mount - F1.4-C - P-Iris - Focus: manual - Zoom: manual - MOD 0.1m - Constant IR aperture 8MP - Product for professional solutions in the video surveillance sector.

  • Lens - For CCTV Surveillance Cameras - HIKVISION - HV1140P-8MPIRA
  • 11-40mm varifocal lens
  • 8MP resolution
  • 1/1.8" sensor with 9mm diameter
  • MOD: 0.1m
  • F1.4-C
  • CS Attack
  • Focus: Manual
  • Zoom: manual
  • P-Iris
  • 8MP IR Constant Aperture
  • Dimensions: Φ48*92.9mm
  • Functional temperature: -20~60?
  • Net weight of lens: 177g

Technical data sheet

ParametersSpecification
Weight 177g
Dimensions Φ48*92.9mm
Specification Vari-focal P-Iris Constant Aperture 8MP IR
Focal length 11-40mm
Mount CS Mount
F number F1.4-C
Flange Back Length 12.5mm
Max. Image format Φ9mm (1/1.8")
MOD 0.1m
Operating Temperature -20~60?
Control - Iris P-iris
Control - Focus Manual
Control - Zoom Manual
Field of View - Diagonal 1/1.8": 45.2°?13.8°
1/2": 41.7°?12.8°
Field of View - Horizontal 1/1.8": 36.7°?11.5°
1/2": 35.8°?11.2°
Field of View - Vertical 1/1.8": 23.9°?7.6°
1/2": 19.6°?6.3°

Further details

Download

Not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
